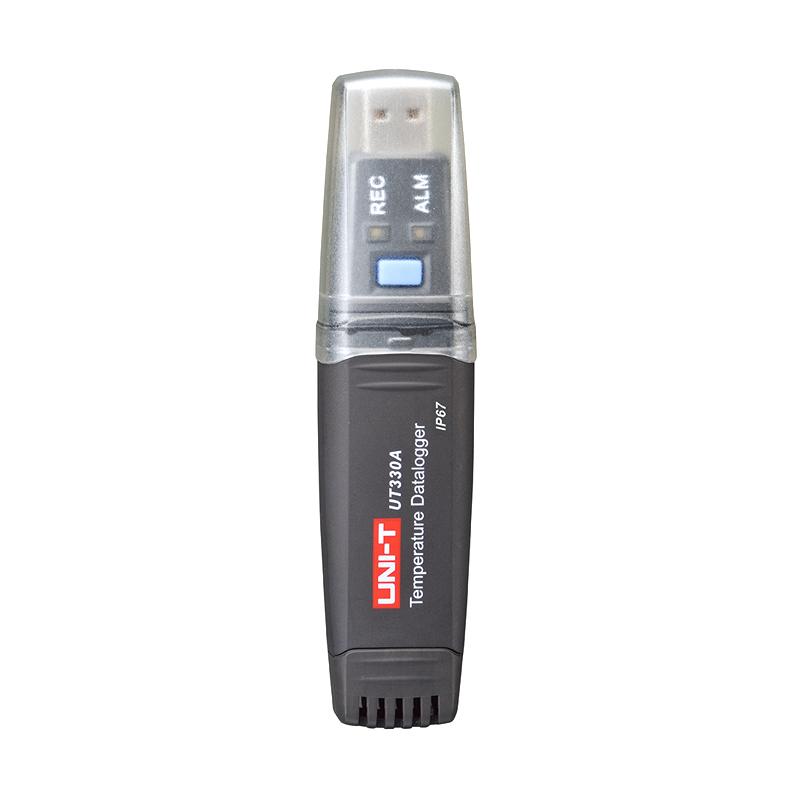

UNI-T UT330A USB Temperature Logger

UT330A

USB Humidity Recorder

The T330 series USB temperature and humidity Recorder is a digital Recorder with high-precision digital temperature and humidity module and atmospheric pressure module as sensors and an ultra-low-power microprocessor. The product has the characteristics of IP67 waterproof and dustproof ability, high precision, large storage capacity, automatic storage, USB data transmission, graphical host computer management and statistics, etc., which can meet the requirements of various high-precision measurement and long-term temperature, humidity and air pressure monitoring and recording. It can be applied to a variety of fields such as transportation, warehousing, etc

Features

1. IP67 protection level, waterproof and dustproof;

2. High precision temperature±0.5°C, humidity ±3%RH;

3. Large storage capacity of 60,000 records, suitable for long-term temperature, humidity and air pressure detection;

4. Friendly supporting host computer management software;

5. Support Chinese simplified, traditional, English three languages and a variety of styles of operation interface;

6. Draw the record in the form of a curve graph, and you can check a single, multiple or all curves to display, and move the mouse on the picture to accurately display a certain point of data. It allows the user to see the changes in temperature, humidity and air pressure at a glance during the recorded time;

7. The curve chart can be saved as a BMP picture, and the data record can be exported to Csv and Txt format files, which is convenient for users to analyze the data;

8. Abundant user setting functions, including user name, high-low temperature alarm threshold, sampling time interval, start mode, etc.

9. The instrument conforms to CE European Union standards

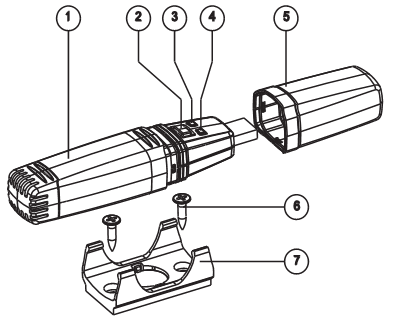

Product Structure

1. Battery cover

2. User buttons

3. "REC" red and green two-color indicator, green light indicates the status of the Recorder, and red light indicates battery level

4. "ALM" red and yellow two-color indicator light, yellow light indicates full record, red light indicates temperature and humidity alarm status

5. USB protective cover

6. Screws

7. Fixing the bracket

Packing list：whole machine X1, battery (already installed in the machine) X1, software disc X1, pendant (excluding magnet) X1, screw X2, color box X1, manual X1, warranty card X1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
