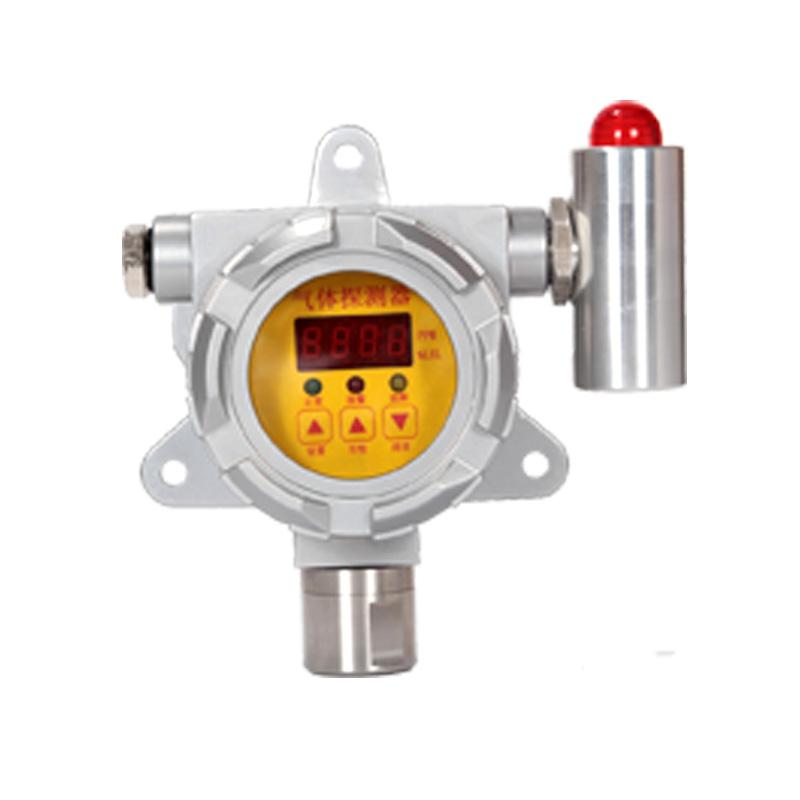

JUNSHUN YA-D200-F2 Fixed Fluorine Gas Detector display + sound and light

JUNSHUN YA-D200-F2 Fixed Fluorine Gas Detector is a fixed fluorine Gas Detector with both display screen and sound and light alarm. Measurement range is 0-1PPM. YA-D200-F2 Fluorine Gas Detector adopts IP65 Protection level design, suitable for indoor and outdoor environments.
Certificate
Contact
Details SPEC OI

Junshun YA-D200-F2 (display + sound and light) Stationary Toxic Gas DetectorSPEC

Junshun YA-D200-F2 (display + sound and light) Stationary Toxic Gas DetectorDetails

Junshun YA-D200-F2 (display + sound and light) Stationary Toxic Gas DetectorPacking list

SKU
NB016347
Detect gas
F2
Sensors principle
electrochemistry
Sampling method
diffusion
Display
LED digital tube, OLED LCD screen
Alarm mode
Sound, light.
Range
0~1ppm
detection Accuracy
＜±3%F.S
resolution
0.1ppm
Response time
≤40s
service life
2 years (depending on the environment)
Repeatability
≤±2%
Power Supply
DC24V
power consumption
＜2.5W
Operating temperature
-40~70℃
Environmental humidity
0~95%RH
Explosion-proof sign
ExdⅡCT6
Protection level
IP65
Dimension
140*190*95mm
Weight
1.3Kg
Output signal
Standard: 4-20mA Optional: RS485, switch amount
transmission distance
1200M three-wire system, four-wire system
Connectivity
Standard: M20 * 1.5 internal thread, optional adapter
Shell material
die casting aluminum
Installation method
Fixing bracket, tube mount, wall mount
Adaptation System
Gas alarm Controller; PLC/DCS/RTU Control system; Fire engine
security certification
CMC
execution standard
GB15322.1-2003；GB12358-2006 GB3836.1-2010；GB3836.2-2010 JJG695-2003
YA-D200-F2 (display + sound and light)
Stationary Toxic Gas Detector

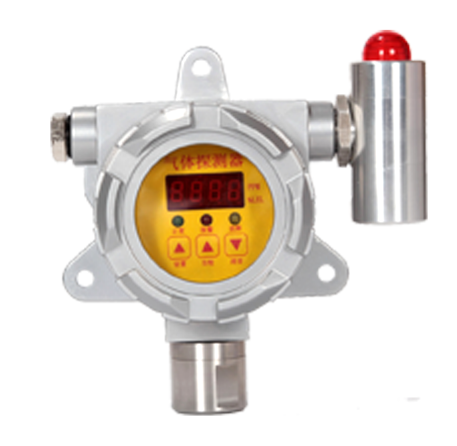

JUNSHUN YA-D200-F2 Fixed Fluorine Gas Detector display + sound and light Picture

【Digital display sound and light model】Fluorine Gas Detector

YA-D200 digital display sound and light fluorine Detector is a professional explosion-proof and flameproof (d) Gas Detector integrating display and alarm; The overall modular design of the equipment adopts the world's best brand gas sensor, which can intelligently detect gas; The product has stable performance, high accuracy, good linearity of detection values, strong anti-interference ability and long service life

How the value is displayed

LED digital tube display, OLED LCD screen display (two ways optional)

The product is mainly installed in indoor and outdoor workplaces where the measured gas is easy to leak and accumulate, if the corresponding harmful gas leaks, the Detector will transmit the relevant data to the corresponding alarm control system in time for relevant treatment to prevent the occurrence of dangerous situations!

The product design follows the national standards

GB15322.1-2003、GB12358-2006、GB3836.1-2010、GB3836.2-2010

Features

A: Exd IIC T6 is designed to be flameproof and suitable for Zone 1 and 2 hazardous locations in most factory environments

B: IP65 protection level design, dustproof, waterproof, suitable for various indoor and outdoor environments

C: The probe (sensor) part of the Detector is protected by stainless steel or customized aluminum shell, which can effectively prevent corrosion; Stainless steel breathable mesh, better air permeability, longer service life

D: The accurate measurement sensor adopts imported gas sensing components, with high precision, small zero drift and high anti-poisoning performance

E: Easy maintenance, modular design, later maintenance, replacement is more convenient

F: Wide adaptability, a variety of signal output methods to choose from: 4-20mA analog signal, RS485 digital signal, relay switch, etc

FAQ
QI want to do a test about the GB15322.1 standard. Is this Gas detector okay?
A Sure
QYA-D200-F2 (display + acousto-optic) Gas detector Sensors principle is electrochemistry?
A Yes, this model Gas detector uses electrochemistry principle. Detect gas F2
