Elcometer Elcometer 510 Drawing adhesion TesterSPEC
Elcometer Elcometer 510 Drawing adhesion TesterDetails
Elcometer Elcometer 510 Drawing adhesion TesterPacking list
- SKU
- NB001636
- Instrument memory; maximum readings
- 60
- Number of data sets
- 1

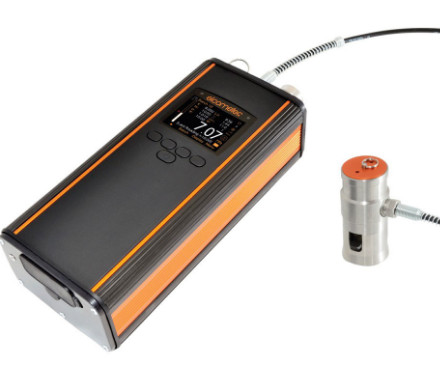

The Elcometer 510 Automatic Pull-Off Adhesion Tester accurately measures the adhesion between the coating and the substrate.
Fully automatic hydraulic oil pumps ensure smooth and continuous pressure application to deliver consistent, repeatable results
Fully adjustable tensile rate 0.1-1.4MPa/s (15-203psi) to meet national and international levels
10, 14.2, 20 and 50mm diameter dolly options
User-definable limits with unique pressure hold and release features
User-definable measurement range and scale with an accuracy of ±1%:
10mm forging die: 100Mpa/14400psi
14.2mm Forging Die: 50MPa/7200psi
20mm Forging Die: 25MPa / 3600psi
50mm Forging Die: 4MPa /580psi
Dustproof, waterproof, rugged design in accordance with IP64
Interchangeable units: Mpa, Psi, NMM2 and N

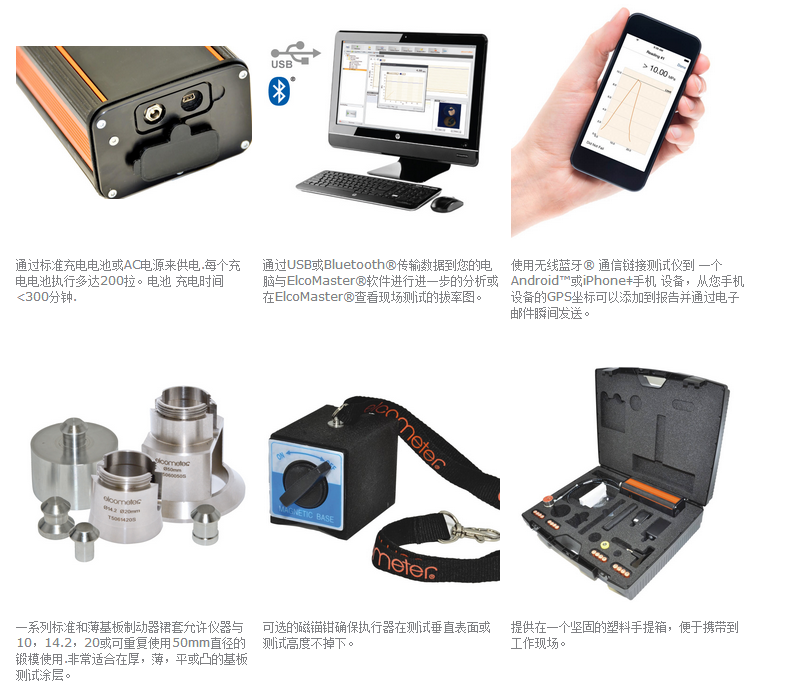

A range of standard and thin substrate brake skirts (compatible with Elcometer 506) that can be used to test coatings on thick, thin, flat or convex substrates.
Store up to 60,000 readings with individual pulls, up to 2500 alphanumeric batches, complete with attributed fault information.
USB & Bluetooth ® Data Output - Compatible with the ElcoMaster® app for iPhone, iPod, iPad and Android mobile devices.
| Features | ||||
Standard Type(S) | Advanced(T) | |||
Measurement data can be reproduced repeatably | ■ | ■ | ||
The menu structure is convenient and easy to understand; Multi-Chinese languages | ■ | ■ | ||
Strong, resistant, waterproof and dustproof; Equivalent to IP64 | ■ | ■ | ||
Bright LCD color screen; with ambient light sensor | ■ | ■ | ||
Scratch and solvent resistant display; 2.4" (6cm) TFT | ■ | ■ | ||
Calibration certificate | ■ | ■ | ||
2-year console warranty | ■ | ■ | ||
Rotate the screen automatically; 0°, 180° | ■ | ■ | ||
Data output via USB (field readings - and batches) | ■ | ■ | ||
Data ® is output via Bluetooth | ■ | |||
computer commands; Start and stop the instrument from a PC with real-time readings (USB only) | ■ | |||
Switching Units (MPa, psi, N, Nmm-2) | ■ | ■ | ||
On-screen statistics (η, x, σ, Hi, Lo, CV%, N>hi limit♦) | ■ | ■ | ||
Pull-out rate metric | ■ | ■ | ||
Trend charts | ■ | ■ | ||
Pull-out Diagram (Load v-Time) | ■ | |||
Choice of interchangeable dollies; 10，14.2，20 & 50mm | ■ | ■ | ||
The user can select the extraction rate; (Model S & Model T Standard Mode)+ | ||||
10mm: 1.00, 2.00, 3.00, 4.00, 5.00 MPa/秒
14.2mm: 0.4, 0.7, 1.4, 2.0, 2.5 MPa/秒 | 125, 200, 400, 600, 725psi/sec 60, 100, 200, 300, 360psi/sec 30, 50, 100, 150, 180psi/sec 5, 8, 16, 24, 30psi/sec | ■ | ■ | |
The user can select the extraction rate; (Model T Advanced Mode)+ | ||||
10mm: 0.4 - 5.60 MPa/s 14.2mm: 0.2 - 2.80 MPa/s
20mm: 0.1 - 1.40 MPa/sec | 58 - 812 psi/s 29 - 403 psi/s 15 - 203 psi/sec 2 - 32 psi/sec | In 0.1MPa/1psi steps In 0.1MPa/1psi steps In 0.1MPa/1psi steps In 0.1MPa/0.1psi steps | ■ | |
User-selectable limits and hold time limits | ■ | |||
instrument memory; The most readings | 60 | 60,000* | ||
Number of data sets (alphanumeric - model T) | 1 | 2,500 | ||
Attribute models to comply with national and international standards | ■ | |||

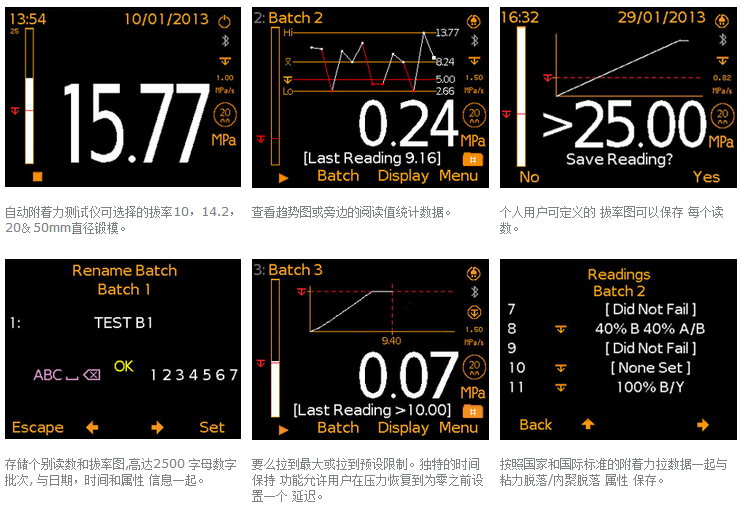

Display mode | ||||
Readings, Selected Statistics & Trend Charts (Last 20 Readings) | ■ | ■ | ||
Pull-out rate chart | ■ | |||
Review the data set | ■ | |||
Power Supply, Battery (B), AC Main Power Supply (M) | B | B, M | ||
USB cable with ElcoMaster® CD | ■ | ■ | ||
Power cord with multiple international adapter plugs (UK, EU, US, AU) | ■ | |||
Plastic suitcase | ■ | |||
Date and time | ■ | |||
Adhesion calibration verification mode in the field | ■ | |||
