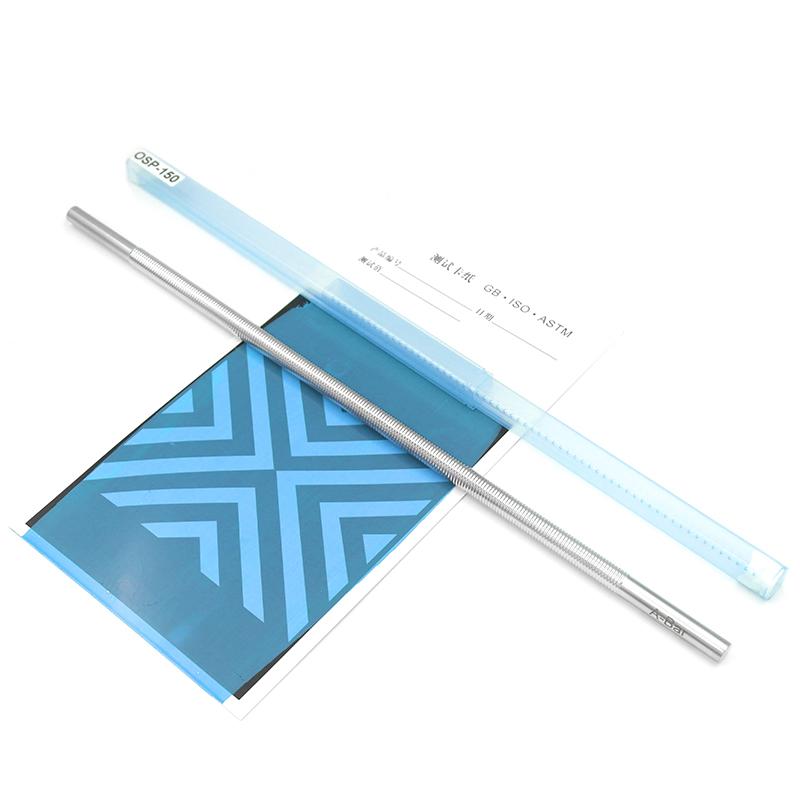

Japan OSP OSP-105/400 Grooved Rods WFT 105μm length 400mm

SE
The production process is formed, the wet film thickness is 105μm, the diameter is 10mm, the Total length is 400mm, the application width is 300mm, the grip width is 0, and the material is 304 stainless steel.
$172.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO
Similar products

OSP OSP-105/400 coating rodSPEC

OSP OSP-105/400 coating rodDetails

OSP OSP-105/400 coating rodPacking list

SKU
NB016389
Production process
Formed
WFT
105µm
diameter
10mm
Total length
400mm
Application width
300mm
Grip width
0
material
304 stainless steel
OSP-105/400
coating rod
The production process is formed, the wet film thickness is 105μm, the diameter is 10mm, the Total length is 400mm, the application width is 300mm, the grip width is 0, and the material is 304 stainless steel.
Japan OSP OSP-105/400 Grooved Rods WFT 105μm length 400mm Picture


Japan's OSP-105/400 extruded wire bar is a precision wire Bar Coater with a coating accuracy of 0.5 microns. The coating thickness of the OSP-105/400 extruded wire bar is 105 microns. The film width is 400mm, and there are 50mm handle portions at each end of the rod.

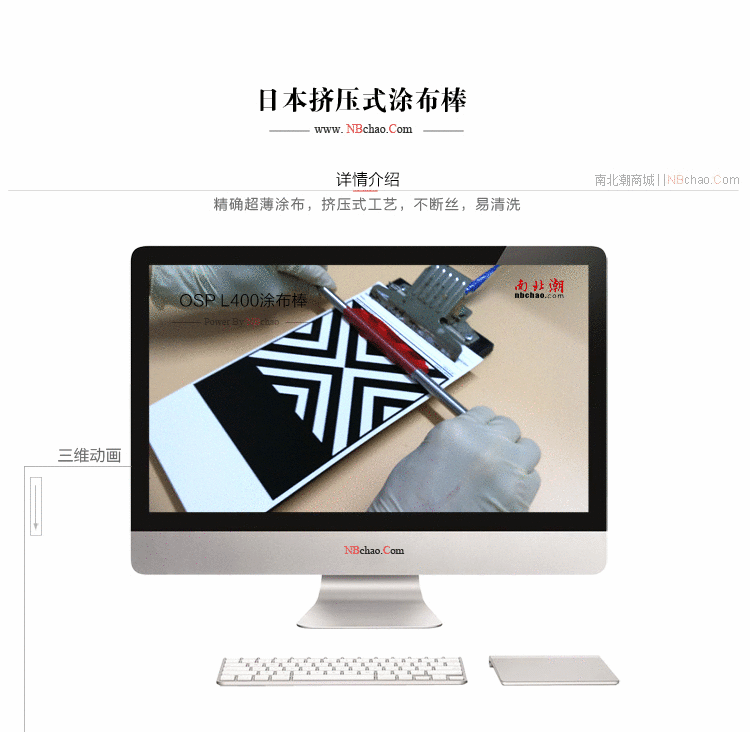

Brief Introduction of Japanese OSP-105/400 Extruded Wire Rod

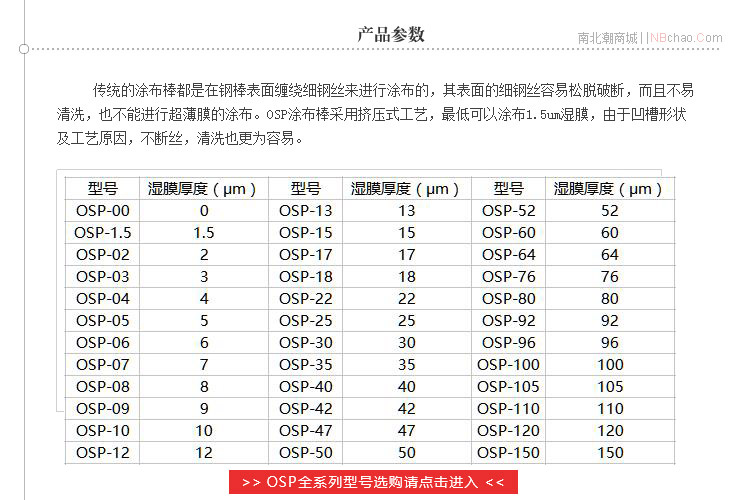

Japan OSP-105/400 extruded wire rod specifications

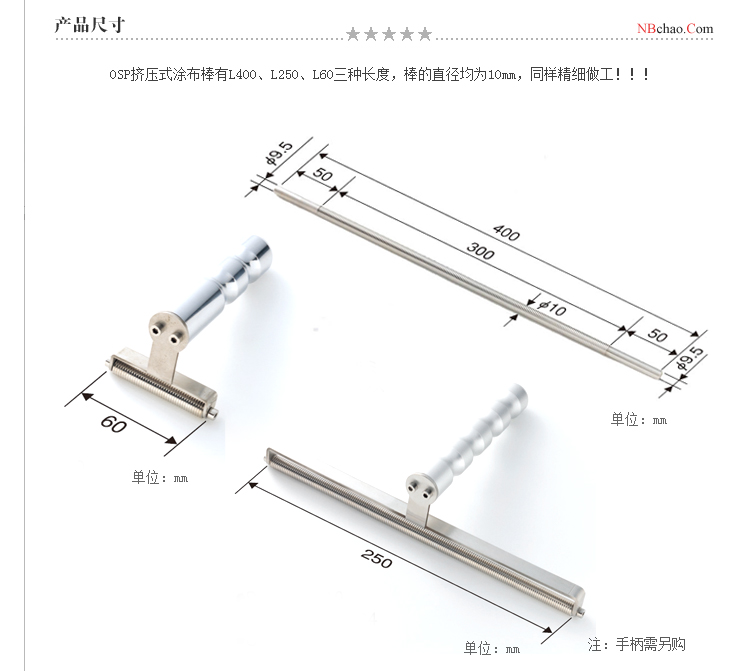

Japanese OSP-105/400 extruded wire rod size chart

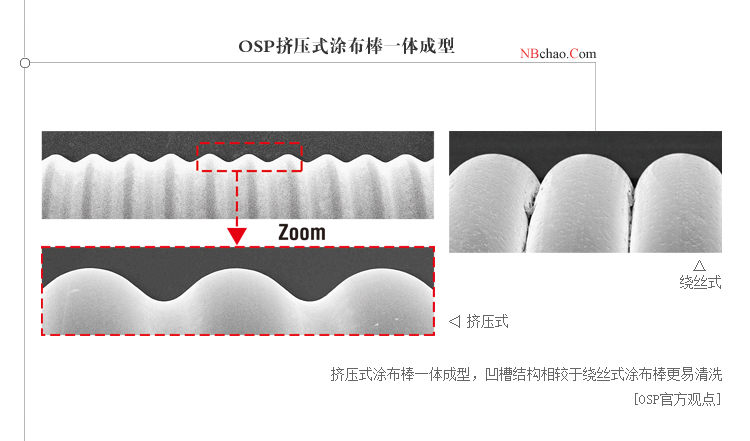

Japan OSP-105/400 extruded wire rod groove shape

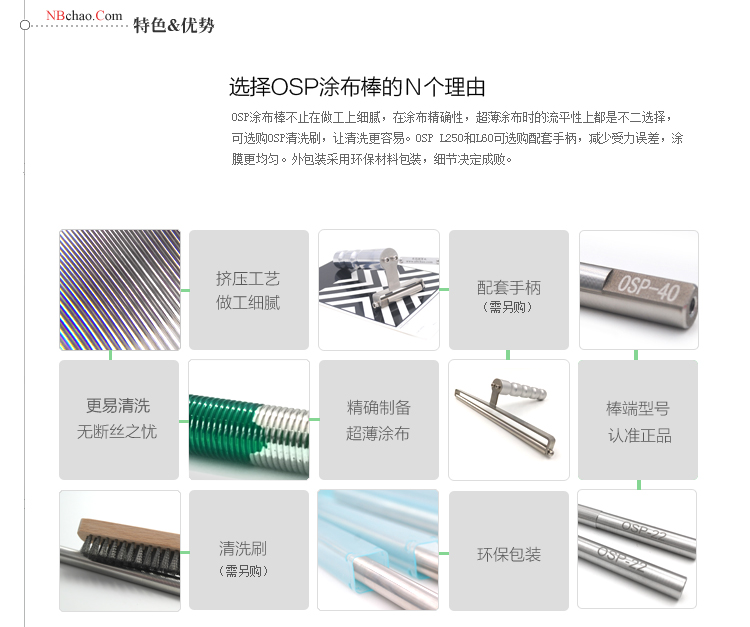

Features and advantages of Japanese OSP-105/400 extruded wire rod

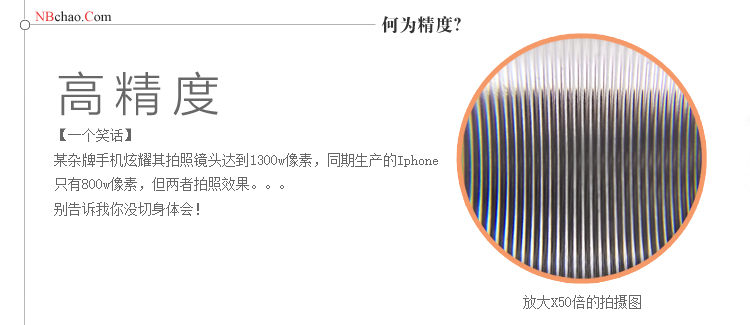

Japan OSP-105/400 extruded wire rod with high precision

Japan OSP-105/400 extruded wire rod Application

Why choose NBCHAO Mall to buy OSP rods

Japanese OSP-105/400 extruded wire rod display picture 1

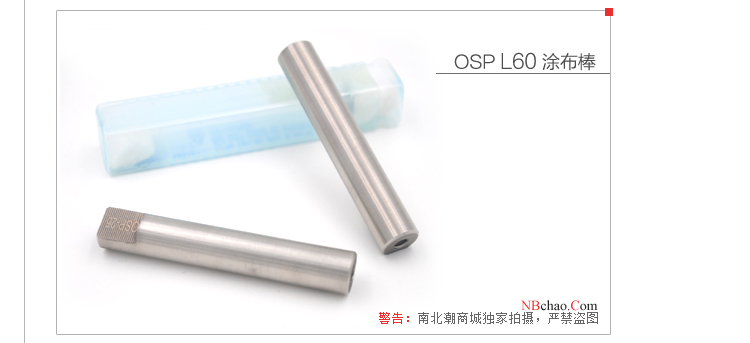

Japanese OSP-105/400 extruded wire rod display picture 2

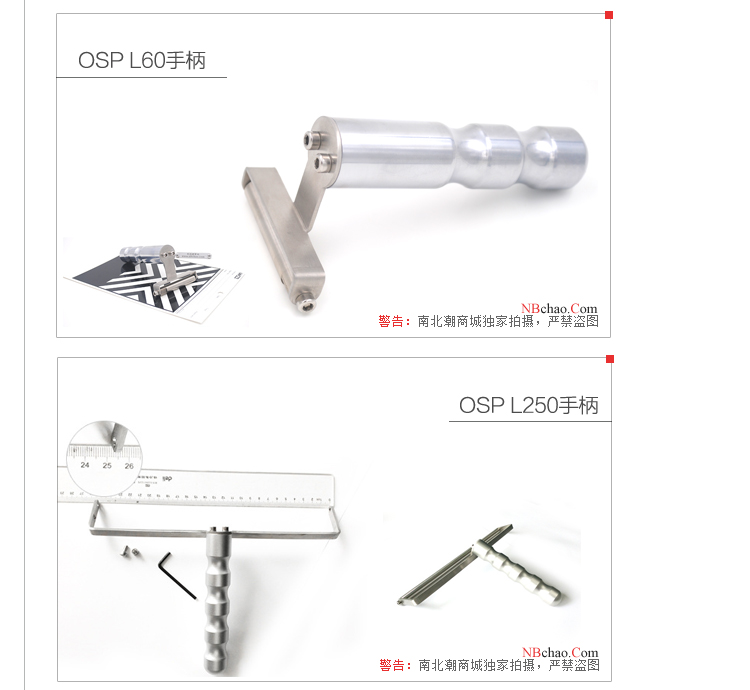

Japan OSP-105/400 extruded wire rod display Figure 3


Optional

Wire Rod Cleaning Machine

LABOratory automatic coating machine

Coating film test jamRK imprint bed

Note: Click on the accessory picture to view Details.

FAQ
QDoes this film coating bar comply with GB/T13217.1 standard?
A The film coating bar is suitable for GB/T13217.1, please consult customer service for detailed application definition
QIs it possible to film the fabric with a rod? If so, how?
A Fabric can be coated, a method of operation is, for example, UV curing Coating, the fabric dip coating, and then using Mayer Rods scrape off the surface of the fabric excess Coating, to ensure that the wet film thickness of the fabric surface is a specific type of wet film, then in ultraviolet curing machine curing, film thickness to obtain a specific film.
