UNI-T UT56 Universal Digital Multimeter

UNI-T UNI-T UT56 universal digital Multimeter can simultaneously measure DC and AC Voltage, current, resistance, capacitance, diode, temperature, Frequency and other parameters, with independent capacitance test socket, UT56 digital Multimeter is suitable for electronic repair, manufacturing and HVAC equipment field maintenance.
Model：
Contact
Details SPEC OI

UNI-T UT56 Universal Digital MultimeterSPEC

UNI-T UT56 Universal Digital MultimeterDetails

UNI-T UT56 Universal Digital MultimeterPacking list

SKU
NB016441
DC Voltage
200mV/2V/20V/200V/1000V
DC Voltage - Accuracy
±(0.05%+3)
AC Voltage
200mV/2V/20V/200V/750V
AC Voltage - Accuracy
±(0.5%+10)
DC current
2mA/20mA/200mA/20A
DC current - Accuracy
±(0.5%+5)
AC current
2mA/200mA/20A
AC current - Accuracy
±(0.8%+10)
Resistance
200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ/200MΩ
Resistance - Accuracy
±(0.3%+1)
capacitor
20nF/200nF/2μF/20μF
Capacitance - Accuracy
±(4%+20)
10A fuse
Yes.
Frequency
20kHz
Frequency - Accuracy
±(1.5%+5)
Diode test
Yes.
Triode test
Yes.
on-off beep
Yes.
Low Voltage display
Yes.
Impedance of Voltage measurement input
10MΩ
maximum display
1999
Display size
65×33mm
Power Supply
9V Battery (6F22)
Weight
540G (including protective cover)
Dimension
190*88*34mm
UT56
Universal Digital Multimeter

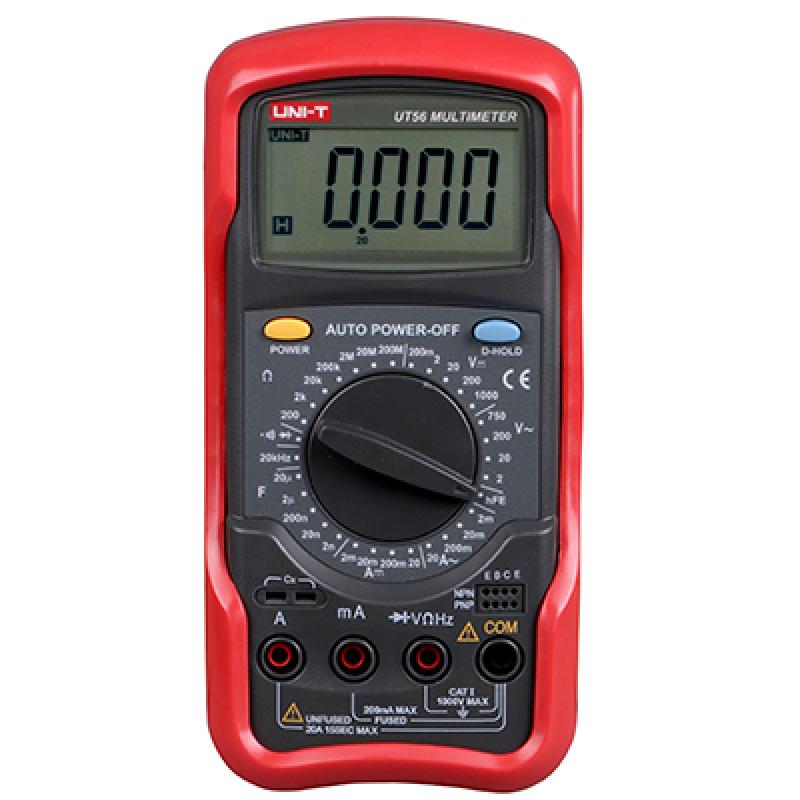

UNI-T UT56 Universal Digital Multimeter Picture

The UT56 in the new "UT50" series is a stable and high-reliability handheld 4 1/2 digital multimeter, the whole circuit design is based on large-scale integrated circuits, double integral A/D converters as the core and equipped with full-function overload protection, which can be used to measure DC and AC Voltage, current, resistance, capacitance, diode, temperature, frequency and current break, which is a user-satisfied test tool The UT56 in the new "UT50" series is a stable and high-reliability handheld 4 1/2 The digital multimeter is designed with large-scale integrated circuits and double-integral A/D converters as the core and is equipped with full-function overload protection, which can be used to measure DC and AC Voltage, current, resistance, capacitance, diode, temperature, frequency and current interruption, and is a satisfactory test tool for users

Features

  1. Comes with three tilt bracket protectors for durability and easy data observation

  2. Stand-alone capacitance test socket for measuring plug-in capacitance components

  3. Automatic shutdown function / with K-type thermocouple temperature measurement (UT53 only)

  4. Stand-alone triode test socket for measuring plug-in triode elements

Industry applications

It is suitable for electronic maintenance, manufacturing and HVAC equipmentUsed by on-site maintenance technicians.
