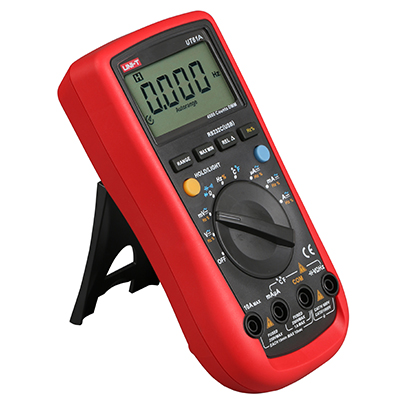

UNI-T UT61A smart Multimeter
UNI-T UT61A smart digital Multimeter is a universal Multimeter with high frequency Response measurement function, UT61A smart digital Multimeter is suitable for electrical maintenance, motor failure, electrical engineering and other fields.
Model：
UT61A
UNI-T
Manufacturer authorization
UNI-T UT61A Smart Digital MultimeterSPEC
UNI-T UT61A Smart Digital MultimeterDetails
UNI-T UT61A Smart Digital MultimeterPacking list
- SKU
- NB016447
- DC Voltage
- 400mV/4V/40V/400V/1000V
- DC Voltage - Accuracy
- ±(0.5%+1)
- AC Voltage
- 400mV/4V/40V/400V/750V
- AC Voltage - Accuracy
- ±(1%+3)
- DC current
- 400μA/4000μA/40mA/400mA/4A/10A
- DC current - Accuracy
- ±(1%+2)
- AC current
- 00μA/4000μA/40mA/400mA/4A/10A
- AC current - Accuracy
- ±(1.2%+5)
- Resistance
- 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
- Resistance - Accuracy
- ±(1.0%+2)
- capacitor
- 40nF/400nF/4μF/40μF/400μF/4000μF
- Capacitance - Accuracy
- ±(3%+5)
- Frequency
- 10Hz~10MHz
- Frequency - Accuracy
- ±(0.1%+4)
- maximum display
- 3999
- manual range
- Yes.
- automatic range
- Yes.
- frequency response
- 45Hz~400Hz
- duty cycle
- 0.1~99.9%
- Diode test
- Yes.
- Triode test
- Yes.
- EF probe
- Yes.
- Automatic shutdown
- Yes.
- on-off beep
- Yes.
- Low Voltage display
- ≤7.5V
- number hold
- Yes.
- Relative measurement
- Yes.
- Max/MIN Minimum
- Yes.
- LCD backlight
- Yes.
- analog strip
- paragraph 41
- input protection
- Yes.
- Impedance
- ≥10MΩ
- Power Supply
- 9V Battery (6F22)
- Display size
- 65*43mm
- Body Color
- Red + gray
- Weight
- 370g
- Dimension
- 180*87*47mm
UT61A
Smart Digital Multimeter
UT61 series general-purpose digital multimeters, all of which have passed GS and ETL safety certifications.
The UT61 series is durable and cost-effective. For users who need high resolution and more accurate readings, the UT61E's 22000 count value can accurately measure the variation of weak signalsChange.
At the same time, this series of instruments has high-frequency response measurement, which avoids the failure of high-frequency signals to be tested due to insufficient frequency response, which will affect the measurement results. The UT61 series is a fully electricalFull-featured inspection instruments for maintenance, motor troubleshooting, and electrical engineering maintenance personnel.
