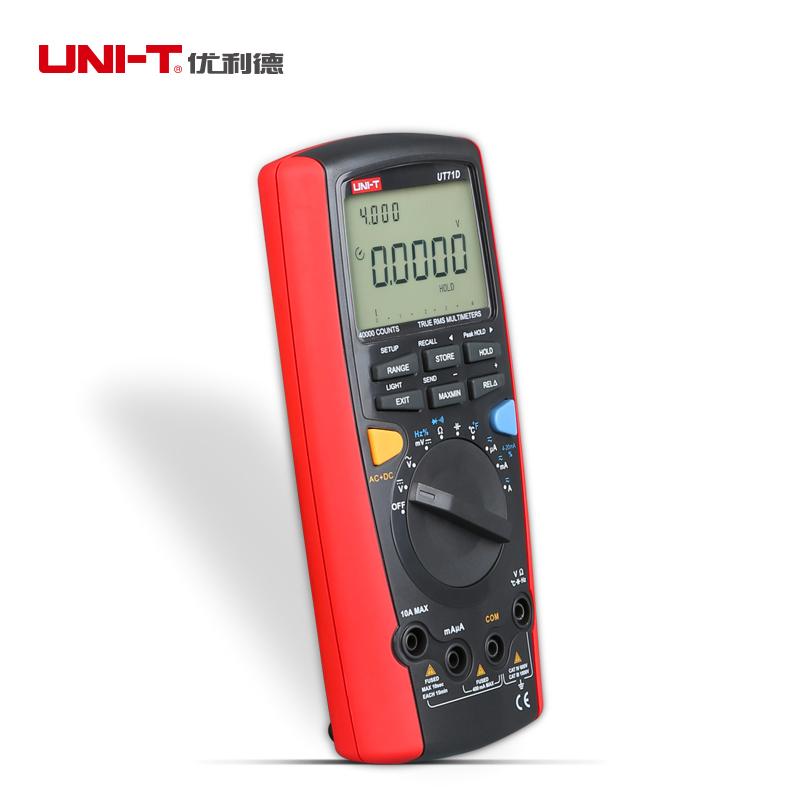

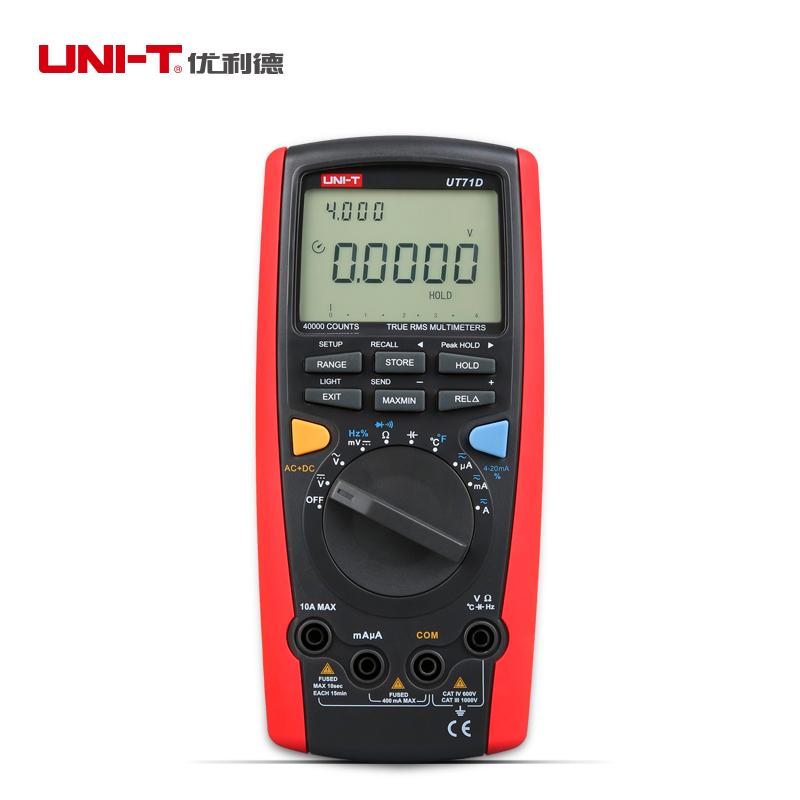

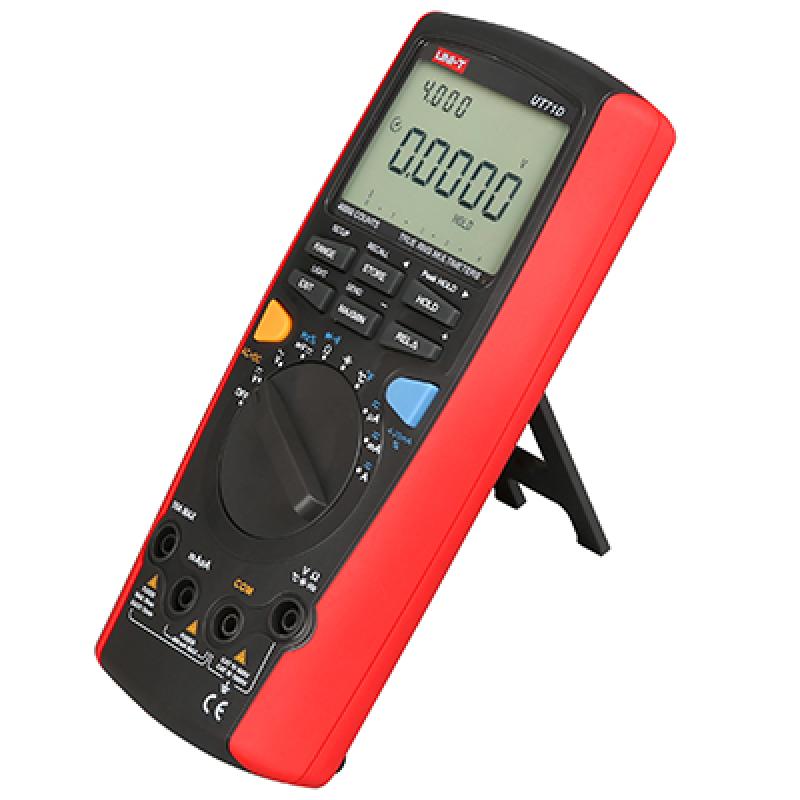

UNI-T UT71D smart Multimeter
UT71D
UNI-T UT71D Smart Digital MultimeterSPEC
UNI-T UT71D Smart Digital MultimeterDetails
UNI-T UT71D Smart Digital MultimeterPacking list
- SKU
- NB016454
- DC Voltage
- 400mV/4V/40V/400V/1000V
- DC Voltage - Accuracy
- ±(0.025%+5)
- AC Voltage
- 4V/40V/400V/1000V
- AC Voltage - Accuracy
- ±(0.4%+30)
- DC current
- 400μA/4000μA/40mA/400mA/10A
- DC current - Accuracy
- ±(0.1%+15)
- AC current
- 400μA/4000μA/40mA/400mA/10A
- AC current - Accuracy
- ±(0.7%+15)
- Resistance
- 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
- Resistance - Accuracy
- ±(0.3%+8)
- capacitor
- 40nF/400nF/4μF/40μF/400μF/4mF/40mF
- Capacitance - Accuracy
- ±(1%+20)
- temperature
- -40~1000℃
- Temperature - Accuracy
- ±(1%+30)
- Frequency
- 40Hz~400MHz
- Frequency - Accuracy
- ±(0.01%+8)
- maximum display
- 39999
- automatic range
- Yes.
- True RMS
- Yes.
- frequency response
- 100KHz
- duty cycle
- (5Hz-2kHz) ±(1%+30)
- Diode test
- Yes.
- Automatic shutdown
- Yes.
- on-off beep
- Yes.
- Low Voltage display
- Yes.
- number hold
- Yes.
- Relative measurement
- Yes.
- Max/MIN Minimum
- Yes.
- Data storage
- 9999
- Interface
- USB
- LCD backlight
- LCD dual backlight
- analog strip
- Yes.
- full symbol display
- Yes.
- function settings
- Yes.
- Impedance
- DC 400mV: about 2.5GΩ, other gears: 10MΩ
- 10A fuse
- Yes.
- Current measurement dislocation alarm
- Yes.
- Voltage current
- AC+DC
- Power Supply
- 9V Battery (6F22)
- Display size
- 73*50mm
- Weight
- 384g
- Dimension
- 200*93*40mm
The UT71 series of intelligent digital multimeters solves complex problems in electronics, factory automation, power distribution, and electromechanical equipment.
For railway-track transformation center control system, power-photovoltaic inverter control cabinet, **-spiral CT, etc., it is caused by the signal undervolt of DC and AC (including various waveforms) components
If the device fails frequently or does not work, then you need the UT71 series AC+DC function, which can measure the AC component and DC composition in the same file, and can also be observed during DC measurement
AC high-frequency interference, rapid diagnosis of the fault will solve the problem. This series of multimeters can set the upper and lower limits of measurement, which can be used for batch inspection and screening of electronic components or electrical products, which is fast
Judgment: Reduce work errors and improve work efficiency. Suitable for complex troubleshooting of equipment in advanced manufacturing.
Features
1. Dual backlit LCD display with 19999 word reading, two analog strip displays can be set
2. Automatic range/manual range switching, 0.1% basic DCV precision
3. Function setting: full-function gear can be set. The upper and lower limits of measurement can be set, and the over-range alarm can be set
4.MAX/MIN/REL: Maximum/Minimum/Relative measurements
5. Peak Hold Function: Automatically keep the highest/lowest value of the pulse signal
6. USB Data Transfer: Quickly transfer data to PC via USB
7. Bluetooth data transmission: real-time monitoring of measurement data by connecting to mobile phone via Bluetooth
8. AC+DC Voltage is measured in one gear
9.45Hz-100KHz high frequency signal response measurement
10. Digital hold, automatic shutdown, misinsertion alarm, full-scale overload protection
11. The instrument is designed to meet the safety standards of IEC 61010-1, double insulation, overVoltage standards (CAT II 1000V, CAT III 600V) and pollution class 2
12. The instrument conforms to CE European Community (European Union) standard
13. The instrument conforms to UL American electrical quality standards
