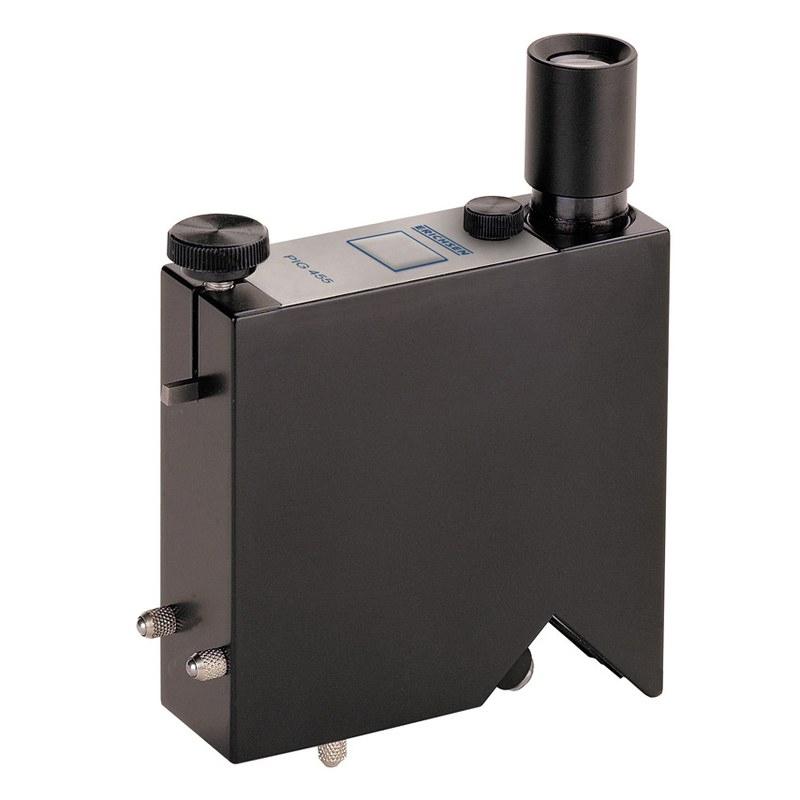

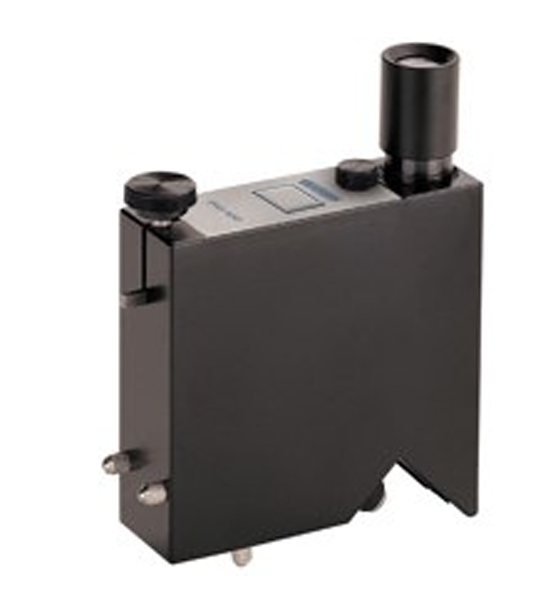

ERICHSEN PIG455 Film Thickness Gauge

PIG455

Cross Hatch Cutter

Test principle:

455 measurement is based on the standard wedge cutting procedure: the coating is scratched into the substrate at a defined angle, and the thickness of the coating (s) is calculated from the triangular projection of the cut surface (b), which is determined by a microscope and the cutting angle (а )Decide. Based on the same principle, the thickness of each layer of a multi-layer coating system can also be calculated. For adhesion testing in accordance with AS 1580 Meth 408.1, the width of the area where the coating rolls up during the cutting operation is related to the projection b.

Technical indicators:

Ordering information

The scope of supply includes: paint film Detector PI G455, No. 6 carbide cutter head, 9V battery, leather case, operating instructions.

Packing list：Cross Hatch Cutter x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
