FUSHENG FuSheng AS-55 Micro Oil Silent Piston Machine 500L/4kW

Model：
Certificate
Contact
Details SPEC CAT
Similar products

FuSheng AS-55 Slight oil silent piston machineSPEC

FuSheng AS-55 Slight oil silent piston machineDetails

FuSheng AS-55 Slight oil silent piston machinePacking list

SKU
NB016549
type
Slight oil silent piston machine
compression method
reciprocating
exhaust pressure
0.8Mpa
Displacement
500L/min
Body model
TA-80
Bore × number of bars
Φ80mm*3
Rotation speed
875rpm
Air interface
3/4'’

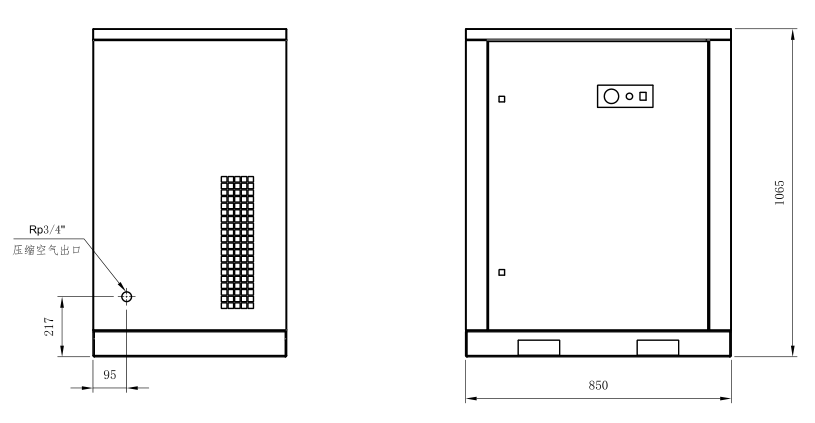

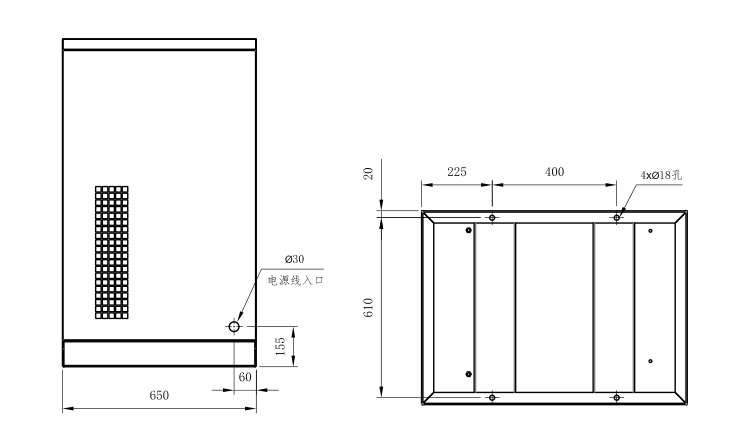

Dimension
850*650*1065mm
Weight
265Kg
Input Power
4kW
AS-55
Slight oil silent piston machine
FUSHENG FuSheng AS-55 Micro Oil Silent Piston Machine 500L/4kW Picture


Host body

Fusheng effective air-cooled reciprocating main engine body is adopted; The large body and low speed design result in more reliable operation and longer service life.


Air filter

The use of special paper and reasonable geometric folding, long service life.

It has a good filtration accuracy for dust in the air, ensures the air quality entering the compression chamber, and significantly prolongs the life of the main engine.


Motor

It adopts a good motor, the protection grade is IP54, the insulation grade is F, the grease lubrication is effective. It can also be designed according to the special requirements of users.


Body shock absorber

It effectively reduces the vibration of the body during operation, and avoids the propagation of low-frequency noise through solid resonance. Together with the fully enclosed soundproof cover with sound-absorbing cotton, it has a sound-dampening effect.


Silent appearance of the AS55 micro-oil piston
