Elcometer 211 A211F--1E Mechanical Coating Thickness Gauge 0~40mils

SE
Elcometer 211 A211F--1E Mechanical Coating Thickness Gauge Measurement principle Mechanical type, Measurement range 0~40mils, thinnest substrate 0.4mm, Elcometer 211 A211F--1E Mechanical Coating Thickness Gauge adopts "V" groove base, suitable for pipe inspection, and compact, portable, Accuracy is 5%.
Contact
Details SPEC CAT

Elcometer Elcometer 211 A211F--1E Coating Thickness GaugeSPEC

Elcometer Elcometer 211 A211F--1E Coating Thickness GaugeDetails

Elcometer Elcometer 211 A211F--1E Coating Thickness GaugePacking list

SKU
NB016588
Measurement principle
mechanical
Measurement range
0~40mils
Minimum measurement surface
Φ20mm
thinnest substrate
0.4mm
probe
Integrated probe
Display screen
Scale display
Machine size
200*60*30mm
Minimum measurement surface
Φ30mm
Edge effect
At least 6mm (0.24 ") from the edge
Elcometer 211 A211F--1E
Coating Thickness Gauge

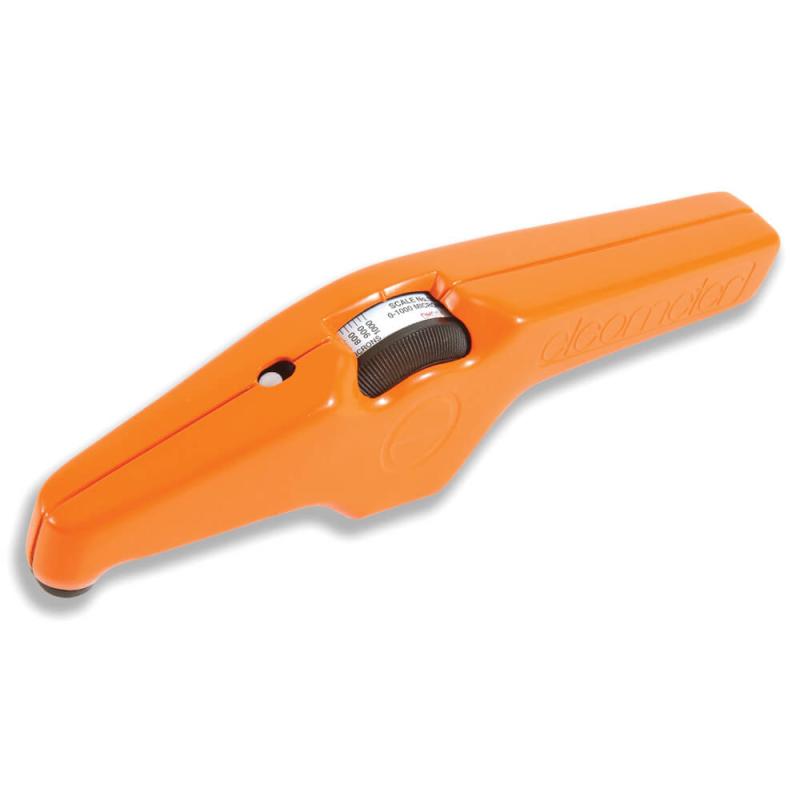

Elcometer 211 A211F--1E Mechanical Coating Thickness Gauge 0~40mils Picture

    Elcometer 211, often referred to as the "banana meter", is a type 1 dry Film Thickness Gauge. It is not only suitable for environments where it is difficult to use electronic instruments, such as flammable air in oil and gas production, but also suitable for underwater coating inspection.

    This is one of the most popular mechanical measuring instruments in the world.

  • Already factory calibrated, user can also adjust the calibration

  • Diaphragms supplied for on-site calibration inspection

  • Suitable for measuring on cold surfaces and underwater use

  • Compact, portable, and accurate to 5%

  • "V" groove base, suitable for pipeline inspection

  • The Elcometer 211 is available in metric and imperial versions and measures coating thicknesses up to 6mm (250 mils).

Elcometer 211 Banana Thickness Gauge

    standard

    AS 2331.1.3, AS 3894.3-A, ASTM G 12, ASTM B 499, AS/NZS 1580.108.1, BS 5411-11, BS 3900-C5-6A, DIN 50981, ISO 2178, ISO
2808-6A, ISO 2808 -7A, JIS K 5600-1-7, NF T 30-124, SSPC-PA2

FAQ
QWhat is the Accuracy of this Elcometer211 Coating thickness gauge?
A Hello, it is ± 5% of the reading or ± 2.5μm/0.1mil (whichever is larger).
QCan this mechanical Coating thickness gauge be applied to GB/T13452.2?
A OK
