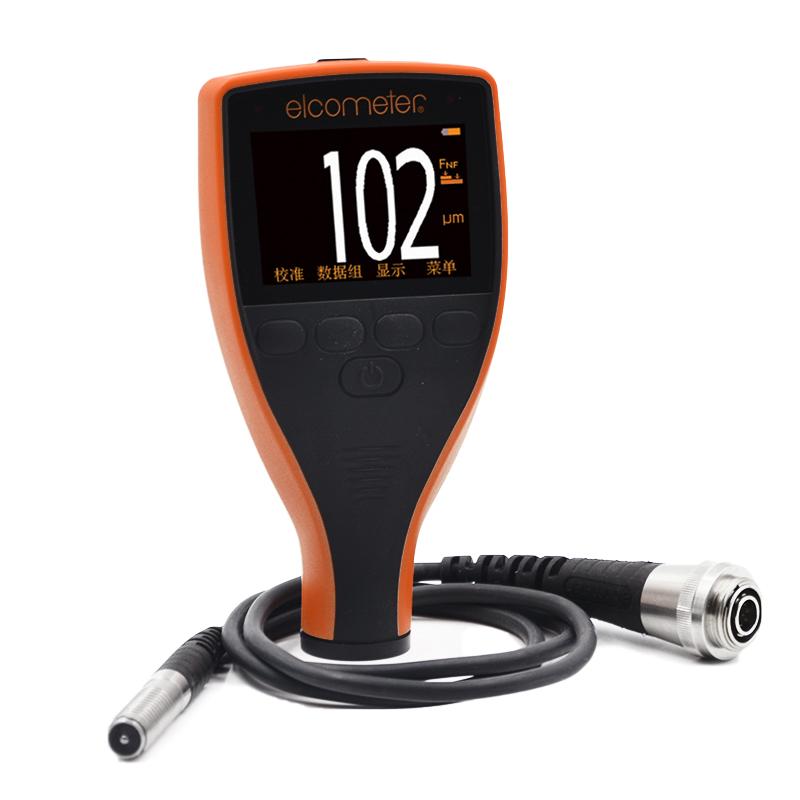

Elcometer 456 Coating Thickness Gauge A456CNBS + straight probe

A456CNBS+T456CN1S

Coating Thickness Gauge

Elcometer 456 Thickness Gauge is divided into 3 types: B (basic type), S (standard type), T (advanced type), from the original Elcometer 456B type to the current 456T type. In addition, it is also divided into integral and split Thickness Gauges.

The split Thickness Gauge provides a variety of probes (probes need to be purchased separately), making measurement more maneuverable.

The British Elcometer 456 A456CNBS split eddy current Thickness Gauge is a basic split eddy current coating Thickness Gauge with a thickness measurement range of 0~30mm.

Features

Easy to use

• Large buttons are easy to operate even when wearing gloves

• Multilingual menu settings

• High contrast color LCD with auto-rotation function

• High-low limit indicator signs

• Factory calibrated and ready to use right out of the box

Readings are accurate

• Measurement accuracy ±1~3%

• Can be used in accordance with many national and international standards

• Thermal stability measurement

• Improves resolution readings for thin coatings

• Accurate measurement on smooth, rough, thin and curved surfaces

Reliable measurement

• High repeatability and reproducibility

• 2-year console warranty

• Full set of traceable inspection certificates provided

• Data sets are equipped with date and time stamp functions

 solid

• Sealed, durable and impact resistant

• Dustproof and waterproof, protection level equivalent to IP64

• The display is highly resistant to scratches and solvents

• Instrument and probe construction are durable

• Suitable for use in harsh environments

efficient

• Fast reading: 70+/min, using ultrasound/scanning probe: 140+/min

• Multiple calibration memory

• alphabetic array identifier

• User selectable calibration method

• Compatible with ElcoMaster® ^and ElcoMaster® ^Mobile App

Powerful

• Various probes can be used interchangeably

• USB interface

• Bluetooth® data output to iPhone* or Android™ device (available ⁱⁿ standard and advanced models)

• Can be divided into 2,500 groups to store 150,000 data

• Capable of measuring coatings up to 31mm thick on metal substrates

Complying with formal quality system certifications such as ISO 9001 requires instruments to properly control, record and calibrate data. Users require that instrument measurement data should be traceable to various national standards. A wide range of nominal and certified diaphragms are available, along with zero plates, to ensure the accuracy of these instruments.

Large screen display, easy to read, both metric and imperial units	The screen displays up to 8 statistics, and the statistical content is user selectable.	On-screen trend graph shows the last 20 measured values
Playback of individual batch readings as numbers or graphs (Advanced)	A variety of probes (need to be purchased separately) are available for a wide range of applications	2.4" color display allows users to see data more clearly from all angles

ElcoMaster data management software features

ElcoMaster® helps you review your data and generate professional reports quickly and easily. Built-in wizards guide you every step of the way, from connecting instruments to generating reports.

1. Use the ElcoMaster® software wizard to connect (Bluetooth or USB) to the Elcometer Thickness Gauge to download data quickly and easily.

2. ElcoMaster® can download the measurement results of all inspections from any Elcometer instrument.

3. Data can be stored into a simple file tree by project and detection type . The data is clearly displayed in the table

4. Using ElcoMaster®'s built-in report design, readings can be quickly displayed on images or drawings.

5. Readings from different Elcometer instruments can be printed on the same report - and quickly inserted into standard reports.

6. Suitable for cloud computing.

Packing list：Host x1, probe x1, operation manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
