Defelsko PosiTest PC Non-Contact Uncured Powder Thickness Gauge

SE
The Defelsko PosiTest PC Non-Contact Uncured Powder Thickness Gauge is an ultrasonic measurement of uncured powder coatings to predict curing thickness. The Defelsko PosiTest PC meets the ASTM D7378 standard and is 4 times faster than the previous generation. Measurement speed.
$2819.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Defelsko PosiTest PC Non-contact uncured powder Thickness GaugeSPEC

Defelsko PosiTest PC Non-contact uncured powder Thickness GaugeDetails

Defelsko PosiTest PC Non-contact uncured powder Thickness GaugePacking list

SKU
NB016639
Measurement principle
ultrasound
Measurement range
20~100μm
margin of error
±5μm
Resolution
1μm
Minimum measurement surface
2mm
Measurement time
1~3s
Measurement distance
19mm
Calibrated mode
One point calibrated, two point calibrated
Unit display
μm/mils
Interface
USB
Data storage
999 readings
Power Supply
4 AAA batteries
Standards
ASTM D7378
Display screen
High contrast ratio color display
Machine Weight
180g
Machine size
241*64*51mm
PosiTest PC
Non-contact uncured powder Thickness Gauge

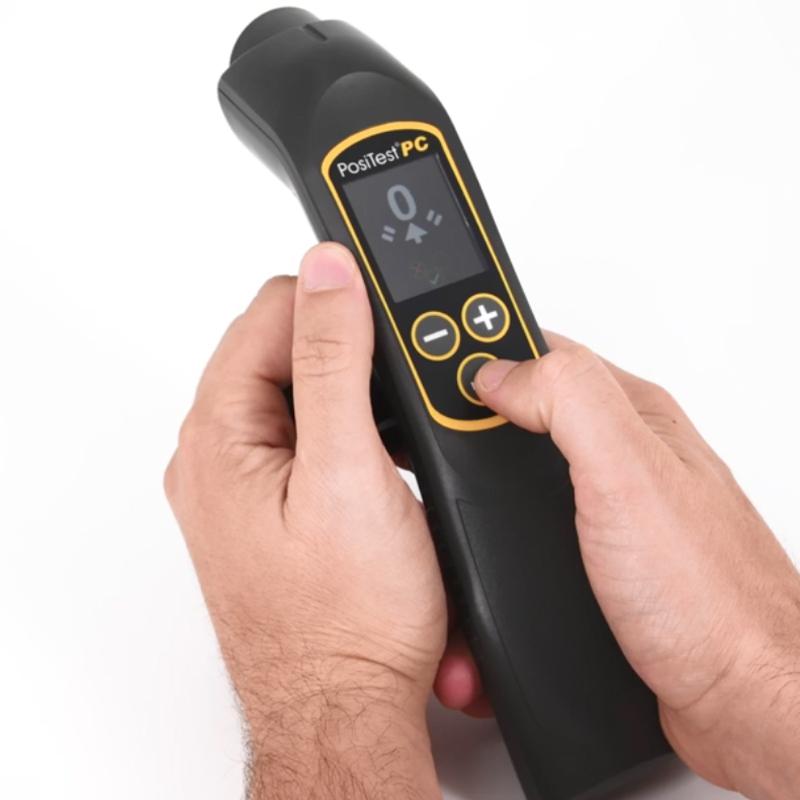

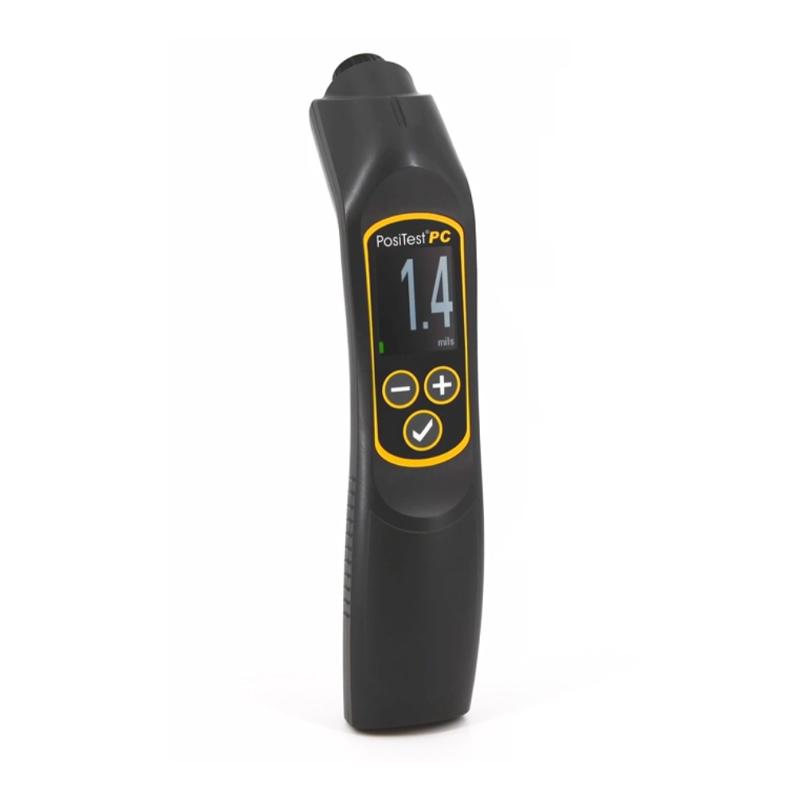

Defelsko PosiTest PC Non-Contact Uncured Powder Thickness Gauge Picture

PosiTest® PCNon-contact uncured powder Thickness Gauge

Cost-effective measurement with non-contact ultrasonic technologyUncuredpowder coating to predict the curing thickness

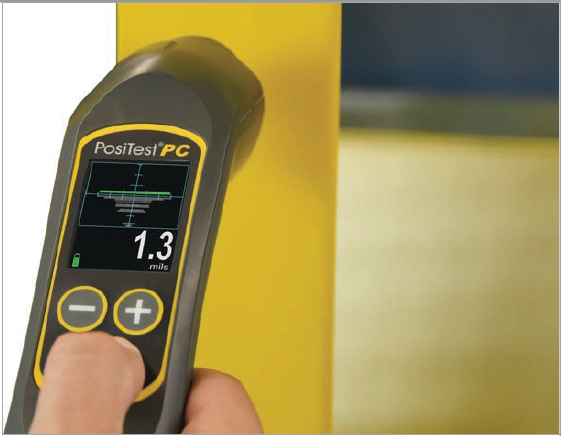

The Defelsko PosiTest PC non-contact uncured powder Thickness Gauge measures wet film powder coatings

  • A dedicated, stand-alone unit is ready to use right out of the box

  • Up to 4 times faster measuring speed* - for moving lines and oscillating parts

  • Most powders do not require calibration adjustments

  • An average of 999 readings are stored through the screen. Stored readings can be downloaded to PosiSoft Desktop Software

  • Continuous measurement in scan mode - ideal for analyzing large areas

Complies with ASTM D7378

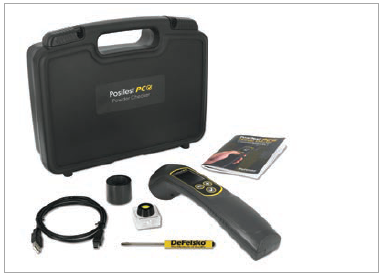

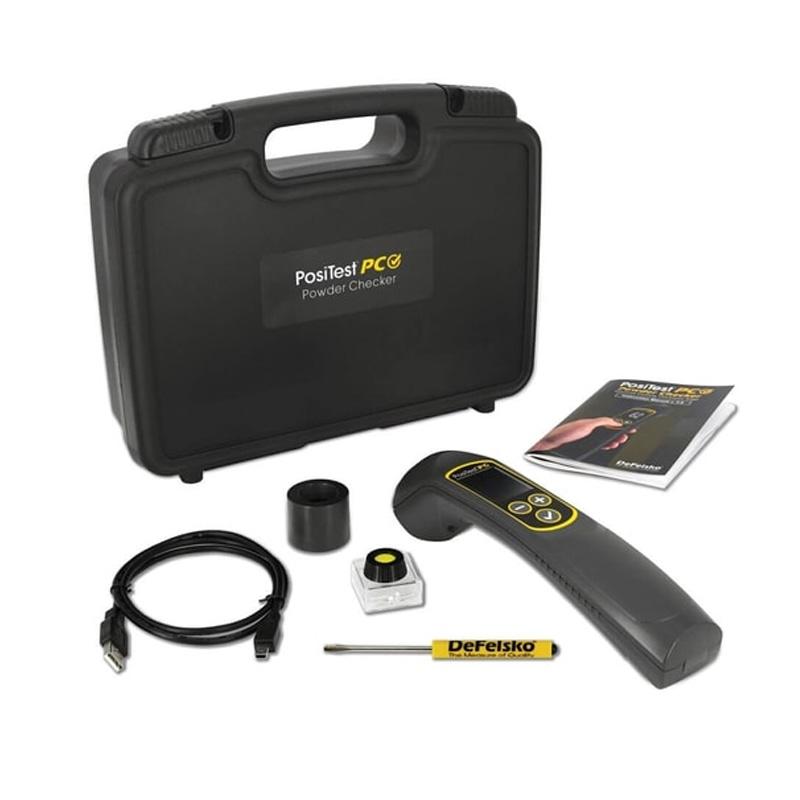

Defelsko PosiTest PC Non-Contact Uncured Powder Thickness Gauge Packaging Details

Features

Simple

A dedicated, stand-alone unit is ready to use right out of the box

Up to 4 times faster measuring speed* - for moving lines and oscillating parts

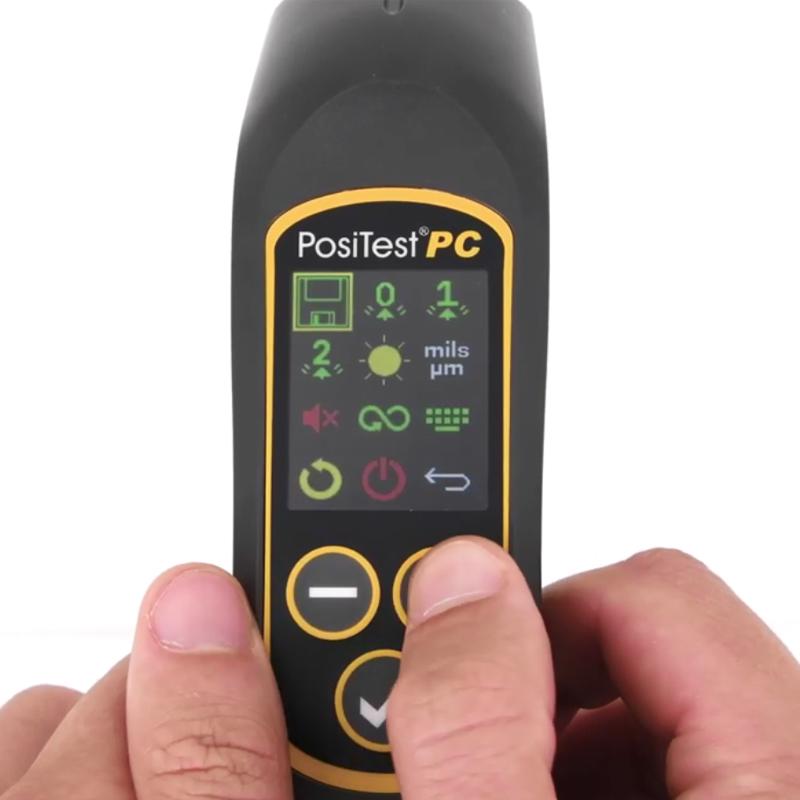

Easy-to-read digital display with simple icon-based menus

Handheld, battery-powered

Ergonomic and lightweight

Most powders do not require calibration adjustments

The target grid shows both the distance to the part and the alignment, making it easy to measure

The RESET function enables an immediate factory reset


durable

Solvents, acids, oils, water and dust – suitable for harsh powder coating environments

Includes hard-shell carrying case

Replaceable screen saver sensor


accurate

Improved sensor technology makes it easier to measure tubules, odd shapes, and moving parts

Easy 1-point and 2-point calibration adjustment options with Cal Reset improve the accuracy of unusual powders or substrates

Complies with ASTM D7378


versatility

There are no cables that may cause interference with the powder applied

mil/micron switchable

High-contrast color display

Adjustable display brightness for a great view in any environment

Turn the sound on and off

Use alkaline or rechargeable batteries


powerful

An average of 999 readings are stored through the screen. Stored readings can be downloaded to PosiSoft Desktop software

Continuous measurement in scan mode - ideal for analyzing large areas

USB keyboard mode simulates keystrokes for easy transfer of readings to a PC or PLC

USB port for quick and simple connection to PC and continuous power supply

Software updates keep your instrument up to date


FAQ
QNon-contact thickness gauges measure below 100 microns, which one is suitable?
A PosiTest PC non-contact uncured powder thickness gauges can be used.
QThe thickness of the transparent powder is measured before curing. Can't this device be measured if it exceeds 100um? Our products are moved online in production, can they be tested normally?
A Our machine has a range of 20-100 microns. It cannot be measured beyond that. In addition, it cannot test moving objects. Mobile equipment is production equipment. This is for laboratory use.
QCan it be used in working conditions like mine? I am a large tank truck. There are some places under it that cannot be sprayed. The instrument for coating thin detection and curing coating. We already have this. It seems that curing coating can also be measured, right?
A This device is a non-contact thickness gauge, mainly to test uncured coatings, but the thickness range of this one is not more than 100μm, it is best to confirm the thickness range first
QCan this measure Non-metallic substrates?
A General metal substrate
QMy film thickness is about 200 microns, is there a range of 500 microns?
A Non-contact maximum range 100um
QCan PosiTest PC Thickness Gauge be used in Pipeline Online?
A Yes. The PosiTest PC is capable of transferring positioning and measurement data via its USB port and can be integrated into online automation applications with the appropriate fixture. To ensure that the USB cable remains reliably connected, it is recommended to use a USB retention fixture attachment.
QWhy doesn't PosiTest PC have a calibrated certificate?
A Calibrate certificates show traceability to national standards. There is currently no uncured powder Film thickness standard. The PosiTest PC Powder Tester is an online tool. To verify PosiTest PC readings and confirm that the final Film thickness meets specifications, use the PosiTector 6000 or PosiTest DFT Dry Film Thickness Gauge measurement curing coat. Our Dry Film Thickness Gauge includes a calibrate certificate.
