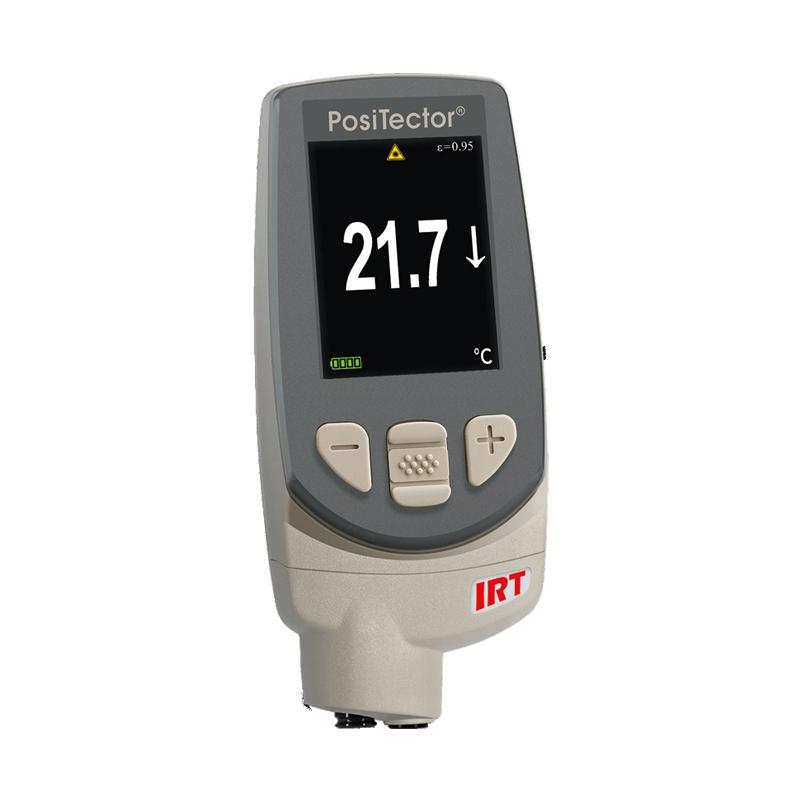

Defelsko PosiTector IRT3 Infrared Thermometer Premium -70~380 ℃
PosiTector IRT3
Defelsko PosiTector IRT3 Infrared ThermometerSPEC
Defelsko PosiTector IRT3 Infrared ThermometerDetails
Defelsko PosiTector IRT3 Infrared ThermometerPacking list
- SKU
- NB016641
- Temperature Measurement Range
- -70~380℃
- Accuracy
- ±1℃+1%
- resolution
- 0.1℃
- object distance ratio
- 5.7:1
- emissivity
- Adjustable
- Response time
- < 500 μm 95% Response
- Response wavelength
- 2~14μm
- Power Supply
- 3X AAA battery
- Dimension
- 137*61*31mm
- Weight
- 140g
- Laser type
- Class 2＜1mW
- Interface
- USB, WiFi, Bluetooth 4.0, BLE API can be used to integrate into third-party software
- Calibrated Certificate
- Traceable NIST verification Certificate
- statistical function
- MAX Maximum, MIN Minimum, Average, Standard deviation
- Data storage
- 10W readings, up to 1000 groups
- Display
- High contrast ratio LCD
- display function
- Real-time plotting of measurement data, trend charts Real-time chart readings
- storage function
- Store thickness, profile, environment and wall thickness Measured values in batches
- backlight function
- Yes.
PosiTector® IRT infrared thermometer
Non-contact surface temperature measurement
Push-button activated laser pointer for precise positioning
Selectable Emissivity Values - Choose from 7 preset material options, set custom emissivity values or adjust to a known temperature
Statistical Scan Mode - Continuously displays/updates averages, standard deviations, min/max surface temperatures, and readings while measuring one reading per second
Calibration certificate shows traceability to NIST (long form)
5.7:1 distance-to-spot ratio - ideal for measuring large areas
The Smart Trend Indicator identifies rising, falling, or steady readings
Features
Simple
The surface temperature is constantly updated and displayed simultaneously
Button-activated laser pointer for simple, accurate positioning
Enhanced one-handed menu navigation
The RESET function enables an immediate factory reset
durable
Solvents, acids, oils, water and dust - weatherproof
Non-contact sensors do not get stuck or worn
Shock-absorbing protective rubber holster with belt clip
Two-year warranty on the meter body and probe
accurate
Calibration certificate shows traceability to NIST (long form)
The fast-response accuracy sensor provides accurate, repeatable readings
5.7:1 distance-to-point ratio
The Smart Trend Indicator identifies rising, falling, or steady readings
versatility
The PosiTector body accepts all PosiTector IRT, DPM, 6000, 200, RTR, SPG, SST, SHD, and UTG probes that can be easily converted to an infrared thermometer, dew point meter, coating thickness gage, surface profiler, soluble salt Tester, shore hardness hardness durometer, or ultrasonic wall thickness gage
Selectable Emissivity Values - Choose from 7 preset material options, set custom emissivity values or adjust to a known temperature
High-contrast LCD with backlit display
Auto-rotating display with lock to prevent accidental rotation
Use alkaline batteries or rechargeable batteries (built-in charger)
powerful
Statistical Scan Mode - Continuously displays/updates averages, standard deviations, min/max surface temperatures, and readings while measuring one reading per second
Screen Capture - Save an image of your screen for record-saving and viewing
The pause function allows for manual recording of readings
When the reading exceeds the user-specified limit, the HiLo alarm will sound and the alarm will be visible
Sealed USB port for quick and simple connection to PC and continuous power supply. USB cable included
PosiSoft USB Drive - Stored readings and graphics can be accessed using a universal PC/Mac web browser or file explorer. No software required.
Each stored measurement is marked with a date and time
Software updates over the network ensure that your gage is new
Software solutions for viewing, analyzing, and reporting data
Version differences
Standard model
Includes all the features shown on the left side as well as...
Each probe stores 250 readings – stored readings can be viewed or downloaded
Advanced models
Includes the features listed above
Store 100,000 readings from multiple probes for up to 1,000 batches
Plot measurement data in real time
WiFi technology syncs wirelessly with PosiSoft.net and downloads software updates
Bluetooth 4.0 technology for data transfer to a mobile device running the PosiTector App or an optional portable printer. The BLE API can be used for integration into third-party software.
On-Screen Batch Annotation - Use the built-in QWERTY keyboard to add annotations, change batch names, and more
Store thickness, profile, environmental, and wall thickness measurements in each batch
Trend charts with real-time chart readings
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using multiple industry-standard communication protocols
