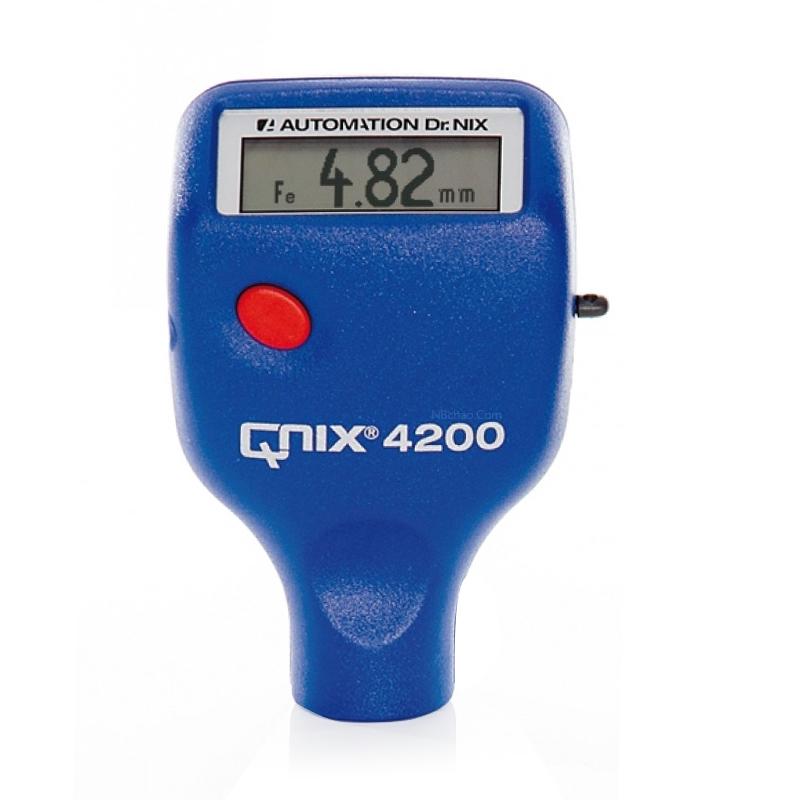

Germany QNix4200 integrated magnetic Coating Thickness Gauge 0-3000um

The German QNix4200 magnetic Coating Thickness Gauge is the standard version of the integrated iron-based probe imported Coating Thickness Gauge, the thickness range is 0~3000μm, the minimum measurement diameter of the QNix4200 Coating Thickness Gauge is 25mm, no need to calibrate, ready to use.

Model：

Qnix

Contact

Details SPEC

Qnix Coating Thickness GaugeSPEC

Qnix Coating Thickness GaugeDetails

Qnix Coating Thickness GaugePacking list

SKU: NB016661

Measurement principle: magnetic Induction

Measurement range: 0~3000μm

margin of error: ±3%

resolution: 0.1μm|1μm

Minimum measurement surface: 25mm

Minimum radius of curvature: Convex 5mm; Concave 25mm

thinnest substrate: 0.2mm(F)

probe: Integrated probe

Probe material: ruby

Calibrated Certificate: Yes.

Calibrated mode: No need to calibrate

Unit display: μm

Interface: USB

Data storage: Temperature -10~60 ℃ (14~ 140 ° F)

Power Supply: 2 AA batteries

Standards: DIN EN ISO 2808, ISO 2178, ASTM B 499, ASTM D 7091

system language: German, English

Display screen: LCD screen

Operating temperature: 0~50℃

Weight: 105g

Dimension: 100*60*27mm

Coating Thickness Gauge

Introduction

The German QNix4200 magnetic coating Thickness Gauge is widely used in the field of paint and automotive coating, and is a standard version of the integrated coating Thickness Gauge, using an iron-based probe, with a measurement range of 0~3000μm.The QNix4200 Magnetic Coating Thickness Gauge has a minimum measurement diameter of 25mm and is temperature compensated.

German QNix4200 magnetic coating Thickness Gauge display drawing

Benefits:

1. Simple and fast measurement

2. No calibration is required

3. Automatic power on/off

4. Large range FE: 0-5000um NFE: 0-3000um

5. Dual-purpose probe, cost-effective

6. Hall sensor makes the measurement more stable

7. The sound is synchronized during measurement

8. Ruby wear-resistant head, long life

9. Backlight LED display, the reading is clearer

10、Automatic recognition of the measurement substrate

11. Split probe to meet different measurement environments

The full range of QNIX Thickness Gauges from Nix, Germany

Model	4200/4200P	4500/4500P	1200	1500	7500	8500
Matrix	Fe	Fe/NFe	Fe	Fe/NFe	Fe、NFe、Fe/NFe	Fe/NFe
Probe form	One, separate		One		One, separate	Wired/wireless split
Measuring range	0-3000μm 0-5000um	Fe:0-3000μm 0-5000um NFe：0－3000μm	0－2000μm	0－5000μm	0-2000μm 0-5000μm (Optional)
Measurement accuracy	0－50μm：≤±1μm；50－1000μm：≤±1.5%；1000－2000μm：≤±2%；2000－5000μm：≤±3%
Display accuracy	0.1μm		0-99μm: 0.1μm, 100μm-999um: 1um, 0.01mm above 999um			0.1um/0.01um(Optional)
Operating temperature	－10 －＋60℃
Temperature compensation	0－50℃
Storage	－			Model 1500M	Model 7500M	Model 8500M
				3900 measurements, 999 data sets		9999 readings, 100 data sets
Statistical functions	－			Mean, Large, Small, Standard Deviation
Overrun alarm	－					Upper and lower limits
Small substrates	10mm×10mm
Small curvature	Convex and concave radius: 3mm/25mm		Convex radius: 5mm, concave radius: 25mm
Thin matrix	Fe：0.2mm，NFe：0.05mm
Electricity	2 No. 5 batteries		1 9V alkaline battery			2 No. 5 batteries
Weight	110g		130g		150g	130g
Size	110×60×27mm		166×64×34mm		110×60×24mm	124mm×67mm×33mm
