QNix4200/5 magnetic Induction Coating Thickness Gauge 0-5000um

The German Nix QNix4200/5 is an integrated coating platings Thickness Gauge with a built-in 5mm range, using a ruby iron-based probe, the display accuracy of the QNix4200/5 magnetic Induction Coating Thickness Gauge is 0.1 μm, and the thinnest substrate thickness is 0.2mm.
$927.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO OI
Similar products

Qnix QNix4200/5 Coating Thickness GaugeSPEC

Qnix QNix4200/5 Coating Thickness GaugeDetails

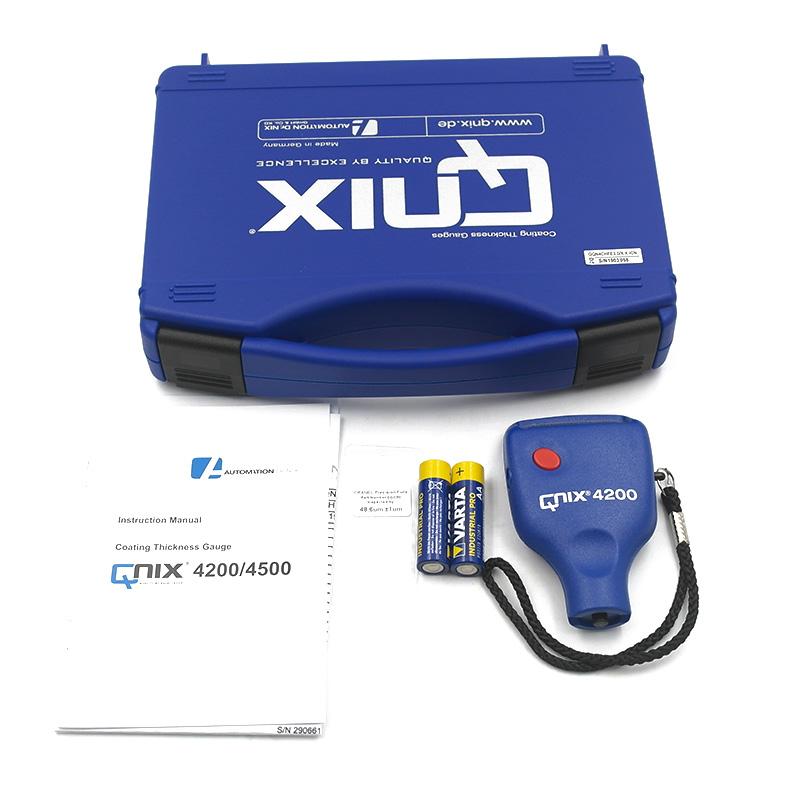

Qnix QNix4200/5 Coating Thickness GaugePacking list

SKU
NB016665
Measurement principle
magnetic Induction
Measurement range
0~5000μm
margin of error
±3%
resolution
0.1μm|1μm
Minimum measurement surface
25mm
Minimum radius of curvature
Convex 5mm; Concave 25mm
thinnest substrate
0.2mm(F)
probe
Integrated probe
Probe material
ruby
Calibrated Certificate
Yes.
Calibrated mode
No need to calibrate
Unit display
μm
Interface
USB
Data storage
Temperature -10~60 ℃ (14~ 140 ° F)
Power Supply
2 AA batteries
Standards
DIN EN ISO 2808, ISO 2178, ASTM B 499, ASTM D 7091
system language
German, English
Display screen
LCD screen
Operating temperature
0~50℃
Weight
105g
Dimension
100*60*27mm
QNix4200/5
Coating Thickness Gauge

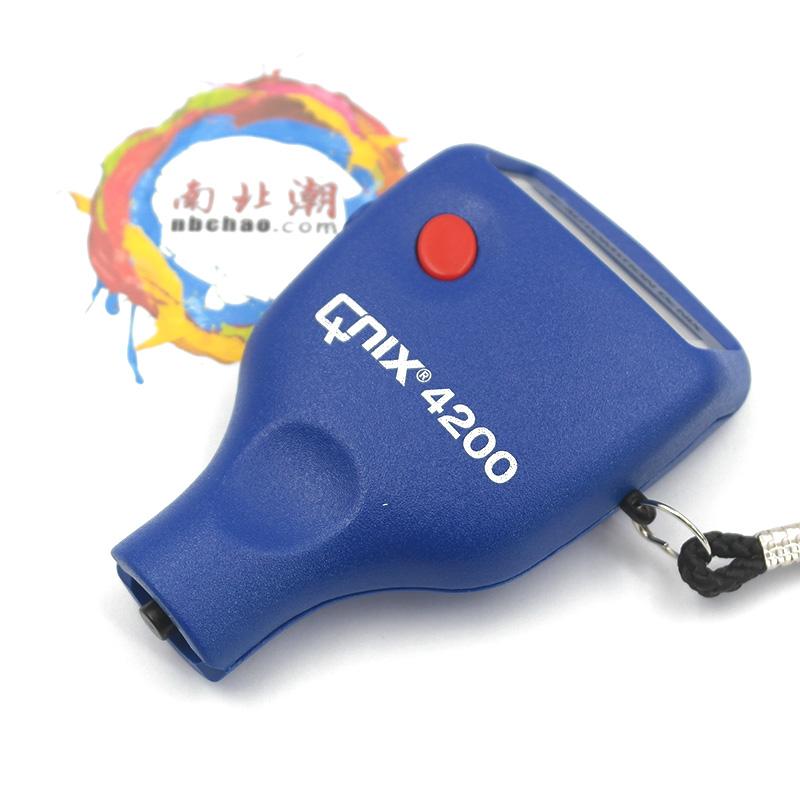

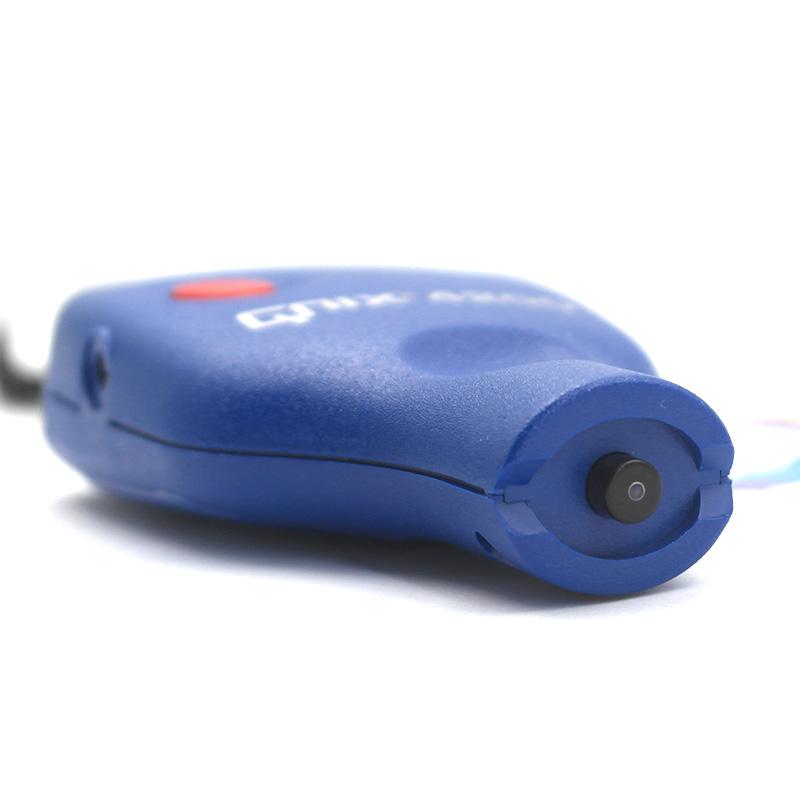

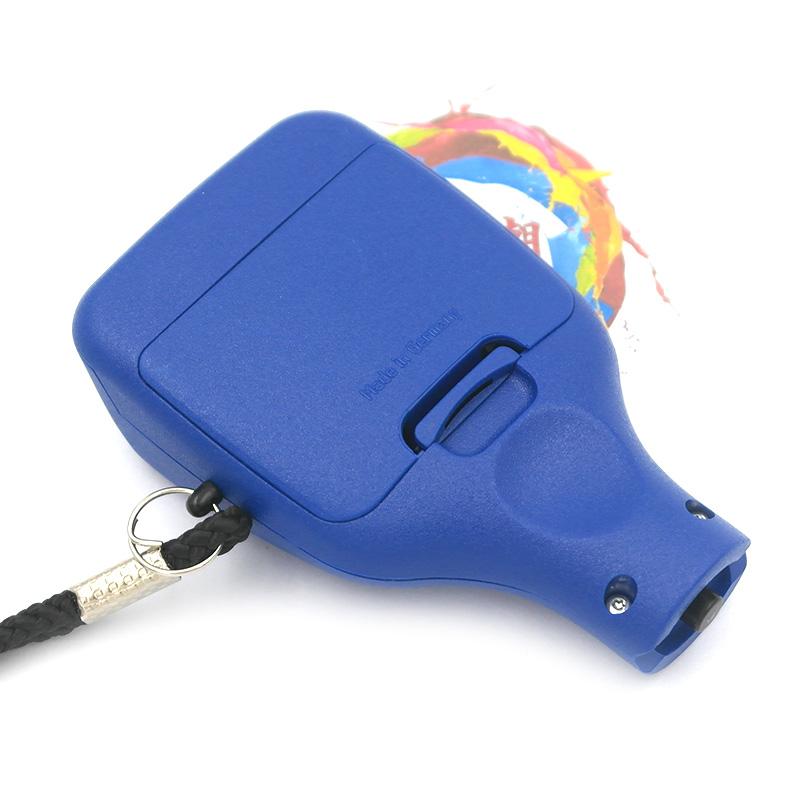

QNix4200/5 magnetic Induction Coating Thickness Gauge 0-5000um Picture

Introduction

German QNix4200 magnetic coating Thickness Gauge is widely used in the field of paint and automotive coating, is a standard version of the integrated coating Thickness Gauge, using iron-based probe, QNix4200/5 measurement range of 0~5000μm.The QNix4200 Magnetic Coating Thickness Gauge has a minimum measurement diameter of 25mm and is temperature compensated.

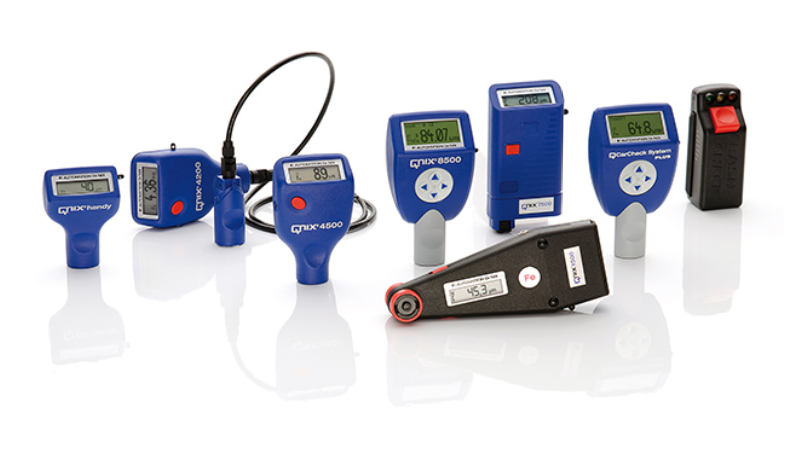

German QNix4200 magnetic induction coating Thickness Gauge display drawing

Benefits:

1. Simple and fast measurement

2. No calibration is required

3. Automatic power on/off

4. Large range FE: 0-5000um NFE: 0-3000um

5. Dual-purpose probe, cost-effective

6. Hall sensor makes the measurement more stable

7. The sound is synchronized during measurement

8. Ruby wear-resistant head, long life

9. Backlight LED display, the reading is clearer

10、Automatic recognition of the measurement substrate

11. Split probe to meet different measurement environments

The full range of QNIX Thickness Gauges from Nix, Germany

Model4200/4200P4500/4500P1200150075008500
MatrixFeFe/NFeFeFe/NFeFe、NFe、Fe/NFeFe/NFe
Probe formOne, separateOneOne, separateWired/wireless split
Measuring range

0-3000μm

0-5000um

Fe:0-3000μm

0-5000um

NFe：0－3000μm

0－2000μm0－5000μm

0-2000μm

0-5000μm

(Optional)

Measurement accuracy0－50μm：≤±1μm；50－1000μm：≤±1.5%；1000－2000μm：≤±2%；2000－5000μm：≤±3%
Display accuracy0.1μm0-99μm: 0.1μm, 100μm-999um: 1um, 0.01mm above 999um0.1um/0.01um(Optional)
Operating temperature－10 － ＋60℃
Temperature compensation0－50℃
Storage－Model 1500MModel 7500MModel 8500M
3900 measurements, 999 data sets9999 readings, 100 data sets
Statistical functions－Mean, Large, Small, Standard Deviation
Overrun alarm－Upper and lower limits
Small substrates10mm×10mm
Small curvatureConvex and concave radius: 3mm/25mmConvex radius: 5mm, concave radius: 25mm
Thin matrixFe：0.2mm，NFe：0.05mm
Electricity2 No. 5 batteries1 9V alkaline battery
2 No. 5 batteries
Weight110g130g150g130g
Size110×60×27mm166×64×34mm110×60×24mm124mm×67mm×33mm


FAQ
QQNix4200/5 Coating thickness gauge can measure anti-corrosion coatings, relatively thick?
A Yes, this is a magnetic Induction Coating thickness gauge. The range is 5mm.
QDo you have the Coating thickness gauge required by ISO2178?
A This QNix4200/5 Coating thickness gauge will do.
QWhat is the minimum radius of curvature of this QNix4200/5 Magnetic Induction Coating thickness gauge?
A Hello, the minimum radius of curvature of this German Nix QNix4200/5 Magnetic Induction Coating thickness gauge is: convex surface: 5mm, concave surface: 25mm.
QWhat is the minimum measurement area for the QNix4200/5 thickness gauge?
A Hello, the minimum measurement area of this Coating thickness gauge is φ 25mm.
