Moderner BY-II (double pendulum) Pendulum Hardness Tester Specifications

Search

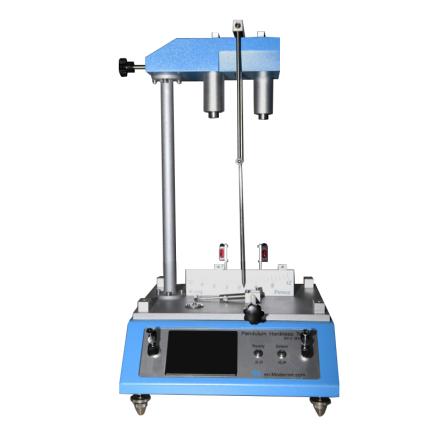

MODERNER BY-II Double pendulum Pendulum Hardness Tester with Konig pendulum and Persoz pendulum

Brand:Moderner

Model:BY-II (double pendulum)

Name:Pendulum Hardness Tester

DetailsContact
Specifications
Swing bar type Konig摆+Persoz摆
Konig pendulum Mass 200g
Konig oscillation period 1.4±0.02s
Konig steel ball diameter 5mm
Swing Time on Konig Glass 250±10s
Number of Swings on Konig Glass 172~185
Konig start and end swing angle 6°/3°
Persoz pendulum Mass 500g
Persoz swing cycle 1±0.01s
Persoz Ball Diameter 8mm
Persoz Swing Time on Flat Glass 430±15s
Number of Swings on Persoz Glass 430±15
Persoz start and end swing angle 12°/4°
Power AC220V 50Hz或60Hz
Overall Dimensions 380*340*790mm
Packing list
Host X1, K swing rod X1, P swing rod X1, manual X1, warranty card X1, windshield X1
After-sales instructions

Warranty days: 365 days

There is no warranty period for consumables, and if there is a quality problem, the product can be returned and exchanged free of charge within 7 days of receipt.

[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/16671/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
