QNix4500 dual-use Coating Thickness Gauge integrated probe, thickness measurement 5000/3000μm

The German Nix QNix4500 dual-use Coating Thickness Gauge is a large-range Thickness Gauge, with Fe probe thickness measuring range of 0~5mm, NFe probe thickness measuring range of 0~3mm, QNix4500 dual-use Coating Thickness Gauge built-in probe, with automatic substrate identification function.
Model：
Contact
Details SPEC VIDEO CAT OI
Similar products

Qnix QNix4500/5 Coating Thickness GaugeSPEC

Qnix QNix4500/5 Coating Thickness GaugeDetails

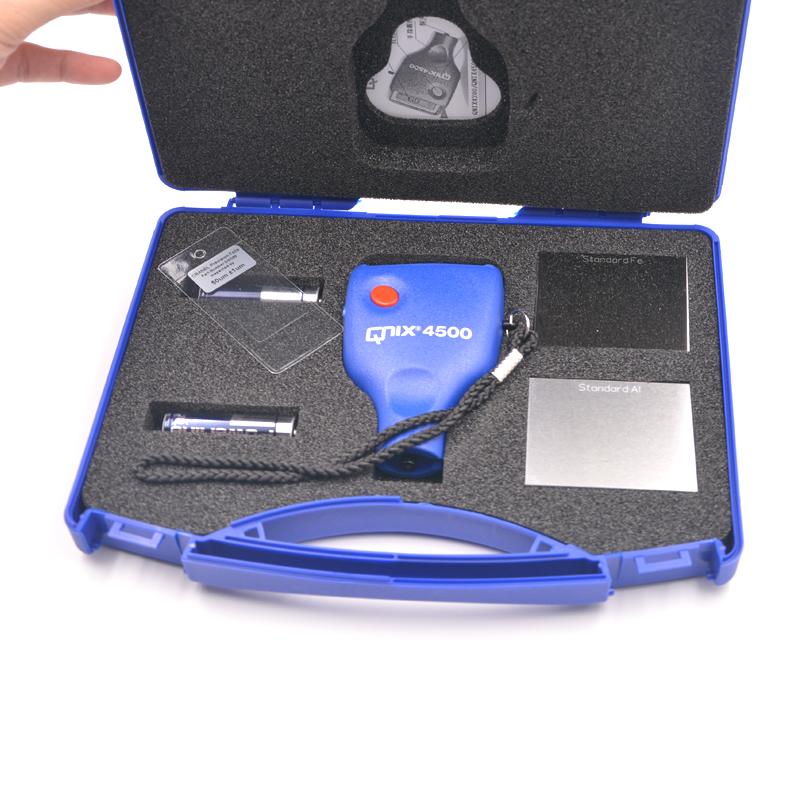

Qnix QNix4500/5 Coating Thickness GaugePacking list

SKU
NB016672
Measurement principle
Magnetic Induction + eddy Current
Measurement range
Fe：0~5000μm；NFe：0~3000μm
margin of error
±3%
resolution
0.1μm|1μm
Minimum measurement surface
Φ25mm
Minimum radius of curvature
Convex 5mm; Concave 25mm
thinnest substrate
0.2mm(F)；0.05mm(N)
probe
Integrated probe
Probe material
ruby
Unit display
μm/mils
Power Supply
2 × 1.5V AA battery
Standards
DIN EN ISO 2808, ISO 2178, ASTM B 499, ASTM D 7091,SO 2360
system language
German, English
Display screen
LCD screen
Operating temperature
-10~60℃
Weight
105g
Dimension
100*60*27mm
QNix4500/5
Coating Thickness Gauge
QNix4500 dual-use Coating Thickness Gauge integrated probe, thickness measurement 5000/3000μm Picture

QNix@4500 coating Thickness Gauge is widely used in the field of coatings and automotive coatings, QNix@4500 is a magnetic induction and eddy current dual-purpose coating Thickness Gauge, this model is a standard version of the integrated probe, can not only be used to measure magnetic substrates such as steel, but also can be used to measure aluminum, copper, stainless steel and other non-magnetic metal surface coatings, oxide film, phosphate film and other coatings. These two models are simple to operate, easy to carry, and have high precision, which are loved by the majority of users.

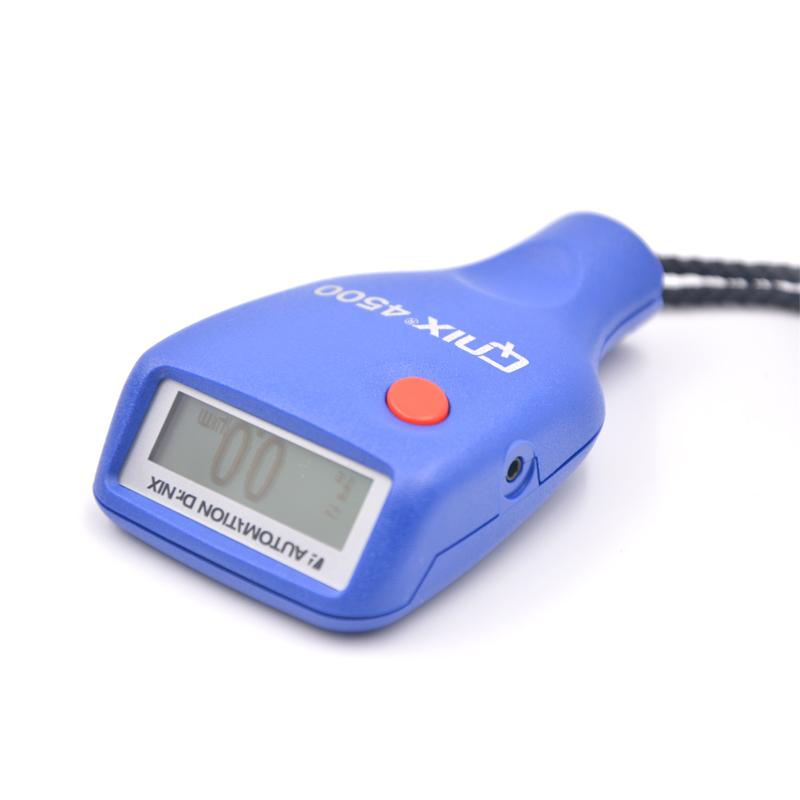

Illustration of the QNix4500 coating Thickness Gauge from Nix, Germany

Benefits:

1. Simple and fast measurement

2. No calibration is required

3. Automatic power on/off

4. Large range FE: 0-5000um NFE: 0-3000um

5. Dual-purpose probe, cost-effective

6. Hall sensor makes the measurement more stable

7. The sound is synchronized during measurement

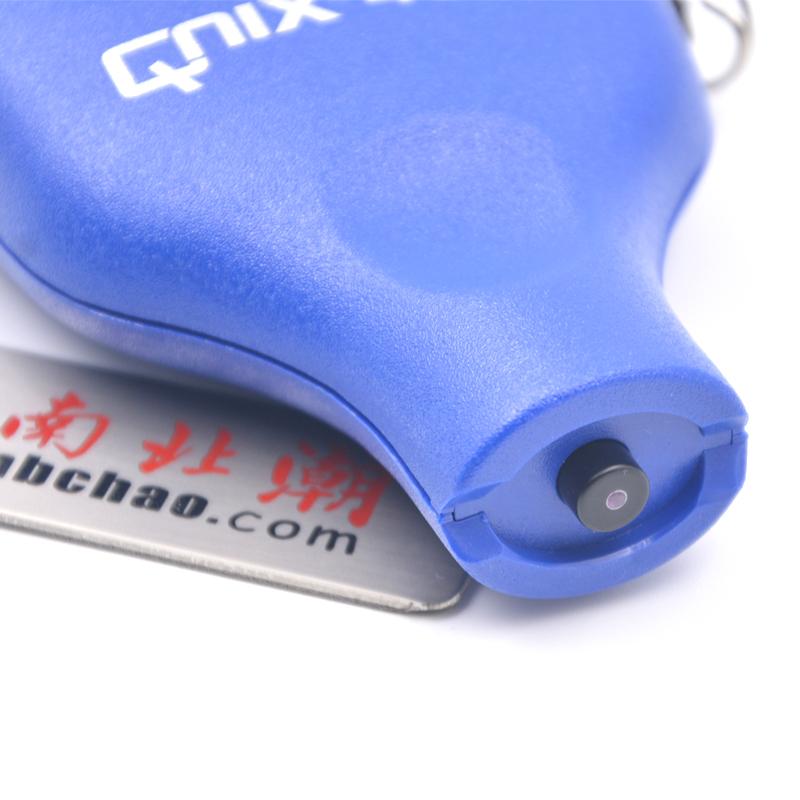

8. Ruby wear-resistant head, long life

9. Backlight LED display, the reading is clearer

10、Automatic recognition of the measurement substrate

11. Split probe to meet different measurement environments

Product Applications

Type F:

Measure the thickness of non-magnetic coating layers on ferromagnetic metal substrates such as steel and iron, such as: paints, powders, various anti-corrosion coatings, plastics, rubber, synthetic materials, phosphating layers, chromium, zinc, lead, tin, cadmium, etc.;

Type N:

Measure the thickness of all non-conductive layers on non-ferromagnetic metal substrates such as copper, aluminum, stainless steel, etc., such as: paints, powders, various anti-corrosion coatings, plastics, rubber, synthetic materials, phosphate layers, oxide layers, etc.;

The full range of QNIX Thickness Gauges from Nix, Germany

Model4200/4200P4500/4500P1200150075008500
MatrixFeFe/NFeFeFe/NFeFe、NFe、Fe/NFeFe/NFe
Probe formOne, separateOneOne, separateWired/wireless split
Measuring range

0-3000μm

0-5000um

Fe:0-3000μm

0-5000um

NFe：0－3000μm

0－2000μm0－5000μm

0-2000μm

0-5000μm

(Optional)

Measurement accuracy0－50μm：≤±1μm；50－1000μm：≤±1.5%；1000－2000μm：≤±2%；2000－5000μm：≤±3%
Display accuracy0.1μm0-99μm: 0.1μm, 100μm-999um: 1um, 0.01mm above 999um0.1um/0.01um(Optional)
Operating temperature－10 － ＋60℃
Temperature compensation0－50℃
Storage－Model 1500MModel 7500MModel 8500M
3900 measurements, 999 data sets9999 readings, 100 data sets
Statistical functions－Mean, Large, Small, Standard Deviation
Overrun alarm－Upper and lower limits
Small substrates10mm×10mm
Small curvatureConvex and concave radius: 3mm/25mmConvex radius: 5mm, concave radius: 25mm
Thin matrixFe：0.2mm，NFe：0.05mm
Electricity2 No. 5 batteries1 9V alkaline battery
2 No. 5 batteries
Weight110g130g150g130g
Size110×60×27mm166×64×34mm110×60×24mm124mm×67mm×33mm
FAQ
QCan the QNix4500/5 Coating thickness gauge measure the thickness of the anti-corrosion layer?
A Yes, this one is magnetic Induction + eddy Current Coating thickness gauge. The range is up to 5mm (iron) 3mm (aluminum).
QTo magnetic eddy current dual function, the measurement range of 0~ 5000 microns, recommend a Qnix thickness gauge?
A Hello, QNIX4500 thickness gauge can meet your needs. https://www.nbchao.com/pk/16672_16675.html
QIs this Coating thickness gauge ASTMB499 compliant?
A Coating thickness gauge is suitable for ASTMB499, please consult customer service for detailed application definition
QWhat is the range of the probe matched with the Nix 4500 dual-purpose Coating thickness gauge?
A Hello, there are two different film thickness probes to choose from. The non-iron-based thickness probes are 3000 microns, and the iron-based thickness probes have 3000 microns and 5000 microns.
QI want to purchase a Coating thickness gauge to test the Galvanized Film thickness of the support rack. Is QNix4500 OK?
A Hello, Nix QNix4500 can be tested, but how many microns is the galvanized film thickness you want to test? The thickness range of this Nix thickness gauge is 0~ 5000 microns (iron base) and 0~ 3000 microns (non-iron base).
