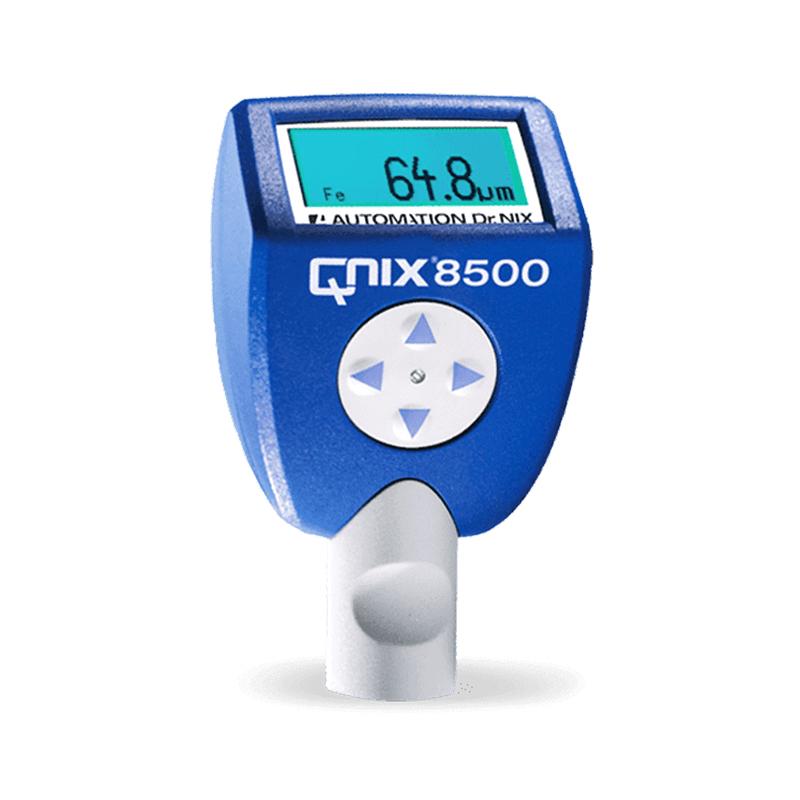

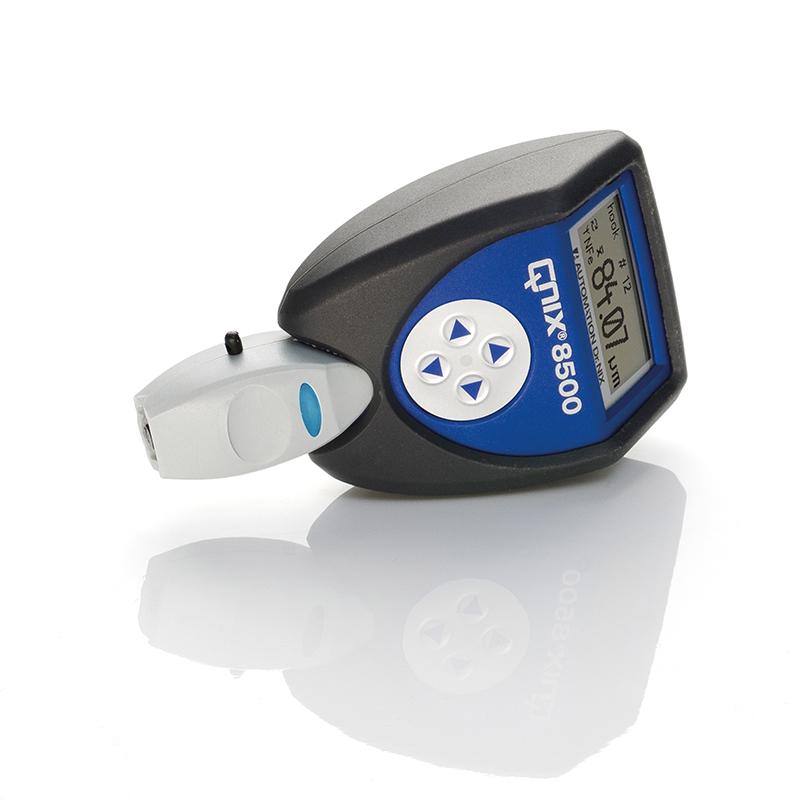

QNix8500 dual-use Film Thickness Gauge with Fe/NFe probe 5mm range

QNix8500+Fe/NFe 5mm

Coating Thickness Gauge

Introduction

The QNix8500 Coating Thickness Gauge is an all-in-one, one-piece, universal with menu operation, and is an intelligent Thickness Gauge. Probes can be replaced to meet different measurement needs, data can be stored, and can be wirelessly transferred to a computer. The probe can be directly connected to the host computer for integrated measurement, or it can be connected to the host computer through the probe cable for split measurement. The operation of split measurement is simple, and the error caused by misoperation can be avoided to a large extent. The instrument is universal, and the probe is divided into magnetic probe, eddy current probe and dual-purpose probe, and the measurement range of the probe is 0-2mm and 0-5mm.

Features

• Modular instrumentation system with interchangeable probes for a maximum measuring range of up to 5,000 μm

• The thumb-sized wireless probe allows for use in hard-to-reach areas

• Pen probes for small parts and thin coatings

• High measurement speed (up to 120 readings/min)

• Memory capacity up to 30,000 cycles and up to 200 batches

• Software for statistical analysis and documentation

• Optional protective rubber cover for increased vibration sensitivity

In addition, the QNix coating Thickness Gauge has the following advantages:

• Easy to use

• No calibration is required

• High measurement accuracy

• Long-lasting measuring probe with ruby tip

• Made in Germany, boutique quality

Probes are optional

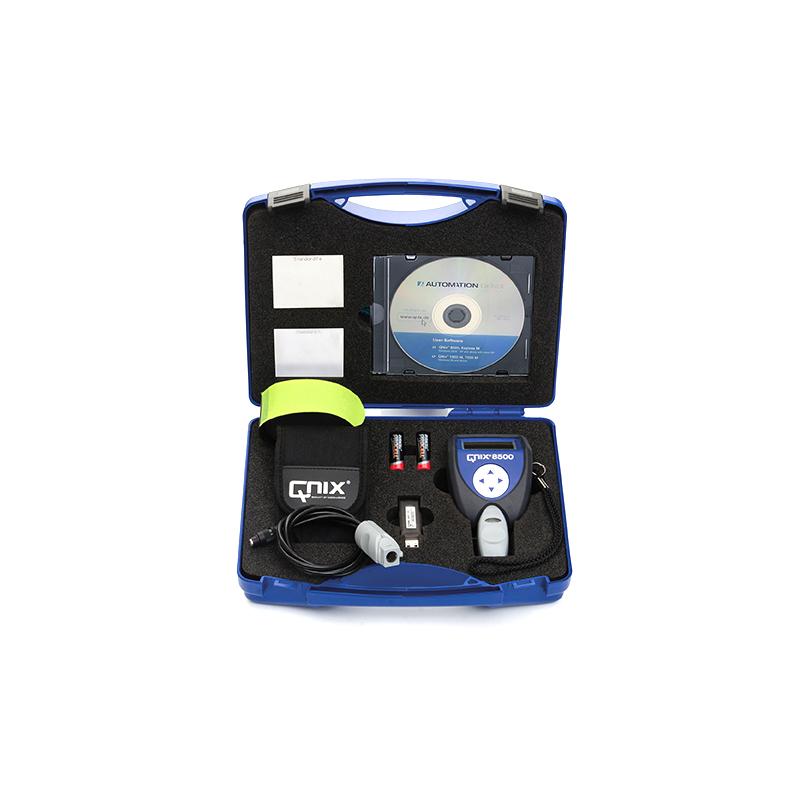

Packing list：Host X1, Fe/NFe 5mm probe X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
