PHT-6010

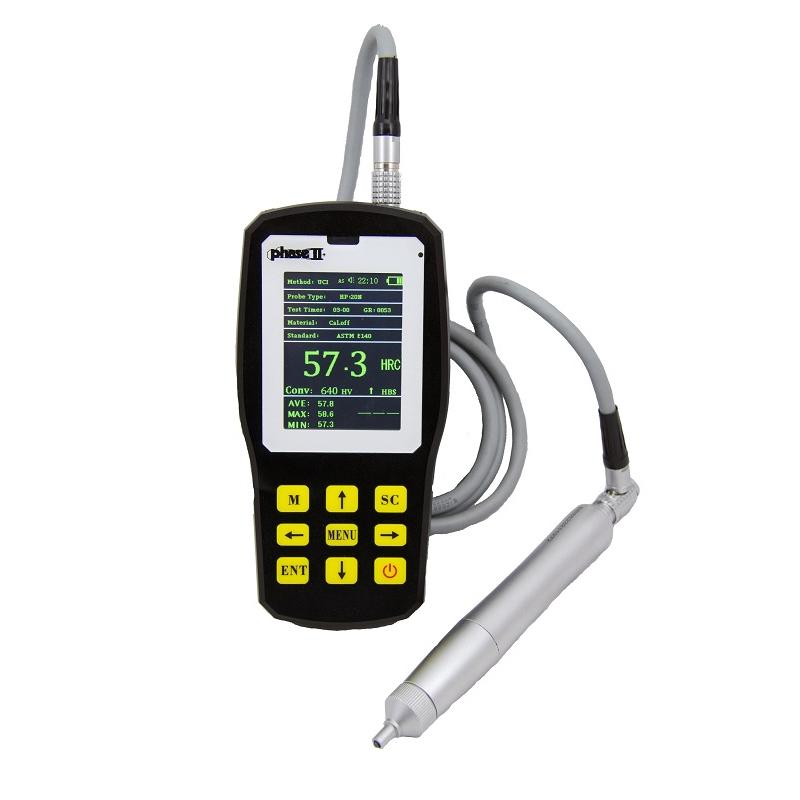

PhaseII PHT-6010 Portable Ultrasonic Hardness TesterSPEC
PhaseII PHT-6010 Portable Ultrasonic Hardness TesterDetails
PhaseII PHT-6010 Portable Ultrasonic Hardness TesterPacking list
- SKU
- NB016703
- Measurement range
- 20~70HRC、41~99HRB、80~1599HV、76~618HB
- Hardness system
- HLD/HRC/HRB/HRA/HB/HV
- Measurement Accuracy
- +/- 3.0% (measurement of the deviation of the mean of at least 5 points from the Hardness block value)
- Display
- LCD color display with backlight, adjustable luminance
- working language
- English, German, Chinese, Spanish, French, etc
- Data Logging
- Letters, numbers
- Data storage
- 2000 sets of single measurement data; 20 sets of calibrated data
- Statistical software
- Ability to save measurement data to Word or Excel
- Interface
- USB
- Power Supply
- Rechargeable lithium battery: Voltage -4.2V, Capacity 4800mAh
- Automatic shutdown
- 5 minutes
- Charging time
- About 8 hours
- Battery life
- About 10 hours (without backlight)
- Net Weight
- 0.9Kg (with probe)
- Gross Weight
- 5kg
- Dimensions
- 160 * 80 * 30Mm (host)
- Packing size
- 350×450×150mm
- loading force
- 10kg(98N)
- Impact device diameter
- 22mm
- Impact device length
- 154mm
- Resonant rod diameter
- 3mm
- Maximum surface roughness of specimen
- Ra<15μm
- μm = micron μin = microinch
- (Ra<590μin)
- Specimen minimum Weight
- 0.3kg
- Minimum test thickness
- 2mm
Features
Hand-held portable non-destructive Hardness Tester;

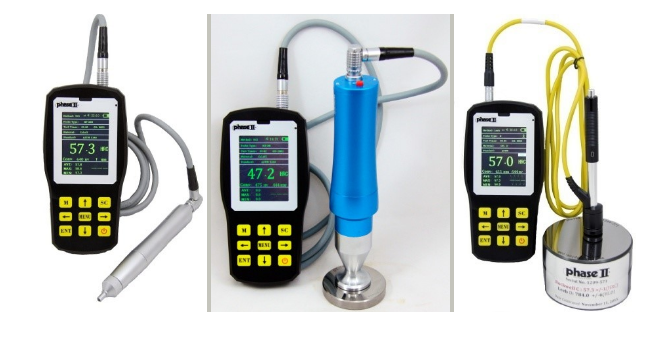

A Hardness Tester combines a UCI probe with a Leeb probe;
The minimum thickness of the test steel can be up to 2mm, and the maximum thickness is unlimited (the minimum test thickness of other materials may vary, depending on the actual hardness);
The measurement speed is very fast;
Rockwell, Brinell and Vickers values can all be displayed on the screen;
Mass storage with USB output;
Optional manual loading of UCI probes: 1kg, 2kg, 5kg & 10kg
Electrically loaded UCI probes are available: 0.3kg, 0.8kg, & 1kg
Selectable Richter probes: D, DC, C, D+15, G & DL
Measurement Method: Portable UCI & Leeb Hardness Tester
There are currently two basic methods in the field of portable hardness testing.
The hardness test method of "ultrasonic contact impedance method" is based on the vibrating rod welded with a 136° diamond pyramid indenter, excited to its free oscillation frequency, and when the indenter is in perpendicular contact with the measured object under a fixed load, it resonates, and uses this resonant frequency to calculate the hardness value of the measured workpiece. The UCI probe Hardness Tester is slower than the dynamic impact rebound mode, but the UCI method is portable, easy to use, and has higher measurement accuracy. When used for a specific test application, it still has its advantages. Like a dynamic impact rebound Leeb Hardness Tester, the UCI probe Hardness Tester is not affected by large masses of parts, but can also measure parts as low as 2 mm thick and hardness values as low as 20 HRC (75 HB). They also excel at hardness testing of larger, harder metal materials. Another reason for the growing popularity is due to the fact that the UCI test method is classified as "non-destructive testing". This allows the parts that must be inspected, resulting in fewer scrap parts and lower production costs.
"Dynamic impact rebound" In the 1970s, Dr. Leeb of Switzerland proposed the principle of the Leeb portable hardness test. A spring-loaded impactor strikes the surface of the specimen, resulting in a rebound. The ratio of the impact body's rebound velocity to the impact velocity is measured, and the Leeb hardness value is calculated, which can then be automatically converted into HRC, HRB, HB, HV and HS values. This portable hardness testing method effectively delivers simple, fast, and accurate results.
Portable ultrasonic Hardness Tester
| Ultrasonic probe hardness | Measuring range | Measurement accuracy |
| HRC | 20-70 HRC | +/- 1.5 HRC |
| HRB | 41-99 HRB | +/-1.5 HRB |
| HRA | 61-85 HRA | +/-1.5 HRA |
| HB | 76-618 HB | +/- 3% HB |
| HV | 80-1599 HV | +/- 3% HV |
The following hardness systems can also be measured (ultrasonic transducers only): HR15N – HR30N – HR45N – HR15T – HR30T – HR45T – HRF – HK - HRD
Portable Leeb Hardness Tester
| Leeb probe durometer | Measuring range | Measurement accuracy |
| HRC | 25-67 HRC | +/- 1.5 HRC |
| HRB | 59-99 HRB | +/-1.5 HRB |
| HRB | 85-651 HRB | +/- 10HB |
| HV | 83-976 HV | +/- 12 HV |
| HS | 26-99HS | +/-10HS |
| HLD | 170-960HLD | +/- 6HL |
Manual probe of the UCI Ultrasonic Hardness Tester
| Model | Type description | remark |
| PHT-6001 | UCI Ultrasonic Hardness Tester is available with a 1kgf manual probe | The maximum roughness of the measured surface is < 3.2 μm |
| PHT-6002 | The UCI Ultrasonic Hardness Tester is available with a 2kgf manual probe | The maximum roughness of the measured surface is Ra<5μm |
| PHT-6005 | The UCI Ultrasonic Hardness Tester is available with a 5kgf manual probe | The maximum roughness of the measured surface is Ra<10μm |
| PHT-6010 | The UCI Ultrasonic Hardness Tester is available with a 10kgf manual probe | The maximum roughness of the measured surface is Ra<15μm |
Motorized probe for UCI Ultrasonic Hardness Tester
| Model | Type description | remark |
| PHT-6030 | The UCI Ultrasonic Hardness Tester is available with a 0.3kgf motorized probe | It is better used to test the hardness of the hardened layer, as well as the hardness of the finished thin part |
| PHT-6080 | The UCI Ultrasonic Hardness Tester is equipped with a 0.8kgf motorized probe | It is better used to inspect bearing-type workpieces with smooth surfaces |
| PHT-6100 | The UCI Ultrasonic Hardness Tester is available with a 1kgf motorized probe | It is better used to inspect machined surfaces |
