SRG-4000
PhaseII SRG-4000 Surface roughness meterSPEC
PhaseII SRG-4000 Surface roughness meterDetails

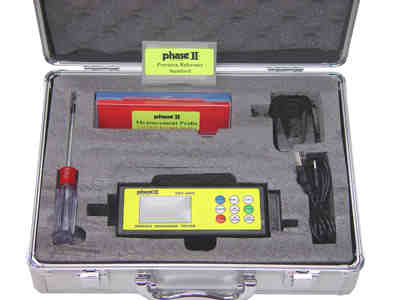

PhaseII SRG-4000 Surface roughness meterPacking list
- SKU
- NB016707
- Display mode
- digital display
- Measurement parameters
- Ra, Rz, Rq, Rt
- Measurement range
- a, Rq：0.005-16μm Rz, Rt：0.02-160μm
- Resolution
- 0.001μm|0.002μm|0.004μm
- Sensors Measurement range
- ±80μm
- Sensors stylus
- Diamond, 5μm tip radius
- Sensors Stylus Angle
- 90°
- Sensors Stylus Force Measurement
- <4mN (0.4gf)
- Interface
- RS232 output to printer/PC
- Sampling length
- 0.25mm/0.8mm/2.5mm
- Sensors - Materials
- Diamond tip radius is 5μm
- Stroke length
- 1.3~17.5mm
- filter
- RC, PC-RC, GUASSIAN, D-P
- Power Supply
- Built-in lithium-ion rechargeable battery, Charging time is about 3 hours
- Dimensions
- 139*56*48mm
- Product Weight
- 450g
- Operating Conditions
- 5~40℃
- Applicable standards
- ISO/DIN/JIS/ANSI
- Measurement unit
- Metric μm; imperial μinch

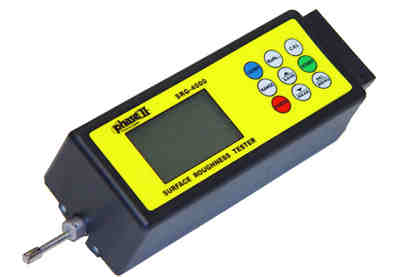

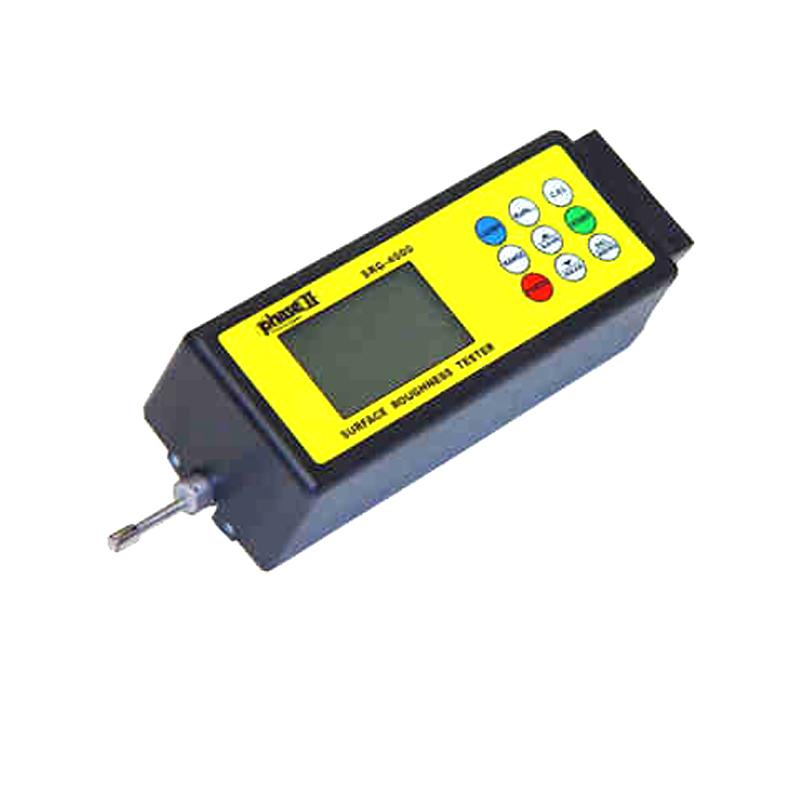

SRG-4000 Portable Surface Roughness TesterWith a professional and technical surface roughness Tester, the SRG-4000 is designed with the Operating Environment in mind. This kind of surface roughness Tester is distinguished from other brand products by high precision, more measurement parameters and simple operation. The PHASE II Surface Roughness Tester is extremely sensitive and highly accurate, providing measurement of multiple surface roughness parameters, including Ra, Rq(Rms), Rt and Rz.
The high sensitivity and precision of the diamond stylus enable a display resolution of up to 0.001 microns. The SRG-4000 uses a simple internal structure that allows for metric to inch conversion, measurement length, sample length, parameters, test level (sensor position), digital filter and much more!
The battery-powered portability allows the SRG-4500 Surface Roughness Tester to increase productivity throughout the job shop.
Functional features
Menu-driven operating system
Capable of measuring 4 different roughness parameters
The roughness of the I/O.D. surface can be measured
Sensor stylus position indication
RS232 output to printer/PC
Expand storage capabilities
