PHASE II PHT-1850 Portable Hardness Tester measurement Large castings

PHASE II brand portable Hardness Tester PHT-1850, according to the Richter Measurement principle, Hardness Tester is used to measure large or heavy specimens and rough surface castings and forgings, can be directly converted to HB values, with G probe.
Model：
Contact
Details SPEC CAT

PhaseII PHT-1850 Portable Hardness Tester SPEC

PhaseII PHT-1850 Portable Hardness Tester Details

PhaseII PHT-1850 Portable Hardness Tester Packing list

SKU
NB016713
Test Accuracy
+/- 0.5% Actual Hardness
Indication Repeatability
±4HL
Measurement range
200-960HL
applicable materials
Steel & Cast Steel, Alloy Tool Steel, Stainless Steel, Grey cast iron, Ductile cast iron, Cast Aluminum, Brass, Bronze, Ripe Copper Alloy
Battery type
2 AA rechargeable batteries
Operating temperature
-15-50℃
Dimension
150*74*32mm
Weight
245g
PHT-1850
Portable Hardness Tester

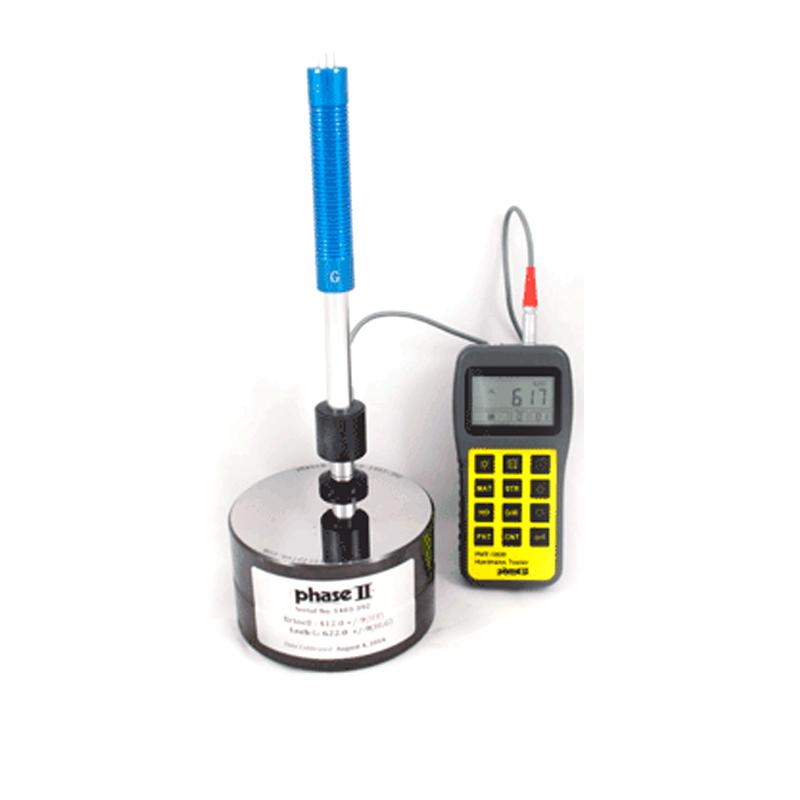

PHASE II PHT-1850 Portable Hardness Tester measurement Large castings Picture

Model. PHT-1850

PHASE II portable Hardness Tester PHT-1850 is used to measure large or heavy specimens and rough castings and forgings according to the Leeb measuring principle, which can be directly converted into HB values with G probe.

The Portable Hardness Tester PHT-1850 easily converts the measurement results into other hardness values, including Rockwell, Brinell, Vickers, Shore and other hardness values

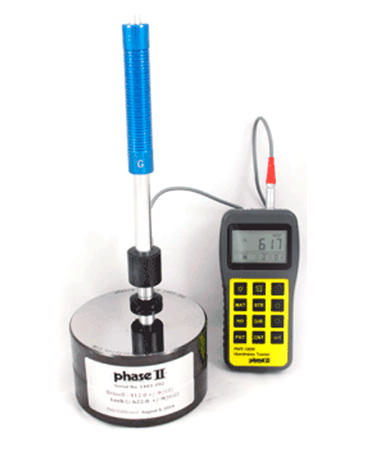

PHASE II PHT-1850 Portable Hardness Tester, USA

Designed for testing large castings or workpieces with rough surfaces

For example, testing of steel with a thickness of more than 25.4 mm

Steps:

Load the shock device

Place the impactor on your test piece

Press the button to start the test and get a reading

The indication value is stable and the accuracy is high

Standard Configuration:

hostG-type impact device,Calibration blocks,Standard suitcase,Cleaning brushes,Operator's manual

Optional Accessories:

Impact device: DC, D+15, DL, G, C

Special support rings

Micro printers

Features

Easy-to-use menu operation

Automatic identification of the type of impact device

Large LCD display with backlight

USB output

Automatic hardness changeover: Brinell, Rockwell B&C, Vickers and Shore

Automatically find the average and maximum and minimum values

Data storage capacity (100 groups)

Technical Parameters:

Test accuracy: ±0.5% of actual hardness

Repeatability of indicative values: ±4HL

MEASURING RANGE: 200-960HL

Applicable Materials: Steel & Cast Steel, Alloy Tool Steel, Stainless Steel, Grey Cast Iron, Ductile Iron, Cast Aluminum, Brass, Bronze, Wrought Copper Alloy

Battery type: 2 AA rechargeable batteries

Operating temperature: -15-50℃

Dimensions: 150 x 74 x 32mm

Weight: 245g

Matching

NIST/ASTM certified hardness test blocks
