PhaseII MET-MINI MET-HRC15 Integrated Ultrasonic Hardness Tester

Model：
Contact
Details SPEC CAT

PhaseII MET-HRC15 Ultrasonic Hardness TesterSPEC

PhaseII MET-HRC15 Ultrasonic Hardness TesterDetails

PhaseII MET-HRC15 Ultrasonic Hardness TesterPacking list

SKU
NB016714
Specifications
Rockwell C
Probe downforce value
15N (1.5kgf)
Measurement range
20~70 HRC
Measurement device
15/50
Dimensions
70*50*82mm
Probe downforce value
15N/50N
Number of Sensors Tested
About 200,000 times
Minimum test thickness
1mm
Minimum radius of curvature of specimen
5mm
Maximum surface roughness of specimen
Ra 2.5µm/4.5 µm
Data storage
Average of 100 measurements
Response time
2s
MET-HRC15
Ultrasonic Hardness Tester

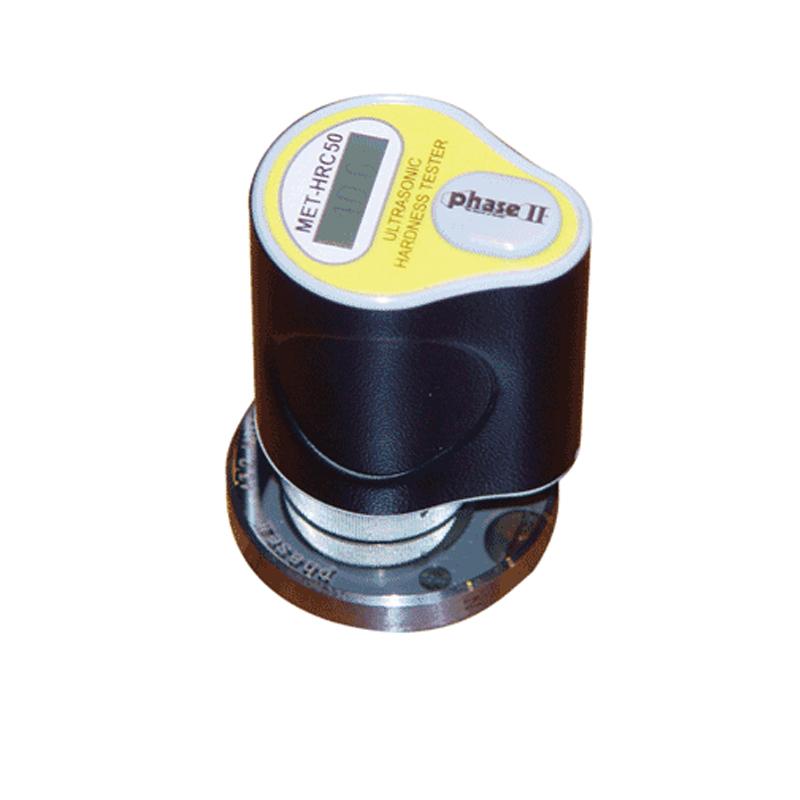

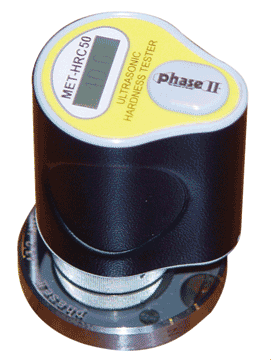

PhaseII MET-MINI MET-HRC15 Integrated Ultrasonic Hardness Tester Picture

MET-MINIAll-in-one ultrasonic Hardness TesterNon-destructive portable hardness testing

The PHASE II all-in-one ultrasonic Hardness Tester MET-MINI is designed to measure the surface hardness of flat, round, thin or large surface workpieces on a wide range of metals.

MET-HRC, MET-HB and MET-HV meet ASTM A1038-10 specifications


Test Method:: MET-HRC, HB & HV Portable Ultrasonic Hardness Tester


"Ultrasonic Contact Impedance Method" This hardness test method is a hardness test method that obtains the hardness of the specimen based on the test of the change of the frequency of the resonant rod caused by the elastic properties of the limited contact surface itself during the process of pressing into the specimen. It is expressed as using a calibrated instrument to squeeze a resonant rod with a Vickers diamond indenter to the surface of the test specimen with a fixed force.

Features

Menu operation, simple and easy to read

Large LCD display with backlight

USB interface

Automatic averaging

There is a data storage function


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
