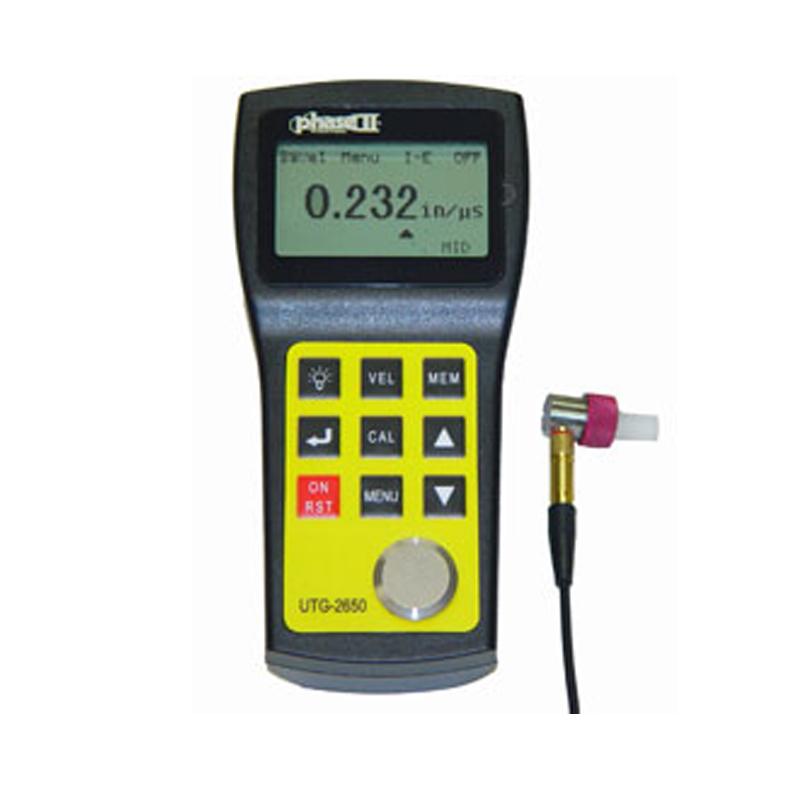

US Phase II UTG-2650 Ultra high accuracy Ultrasonic Thickness Gauge

Phase II UTG-2650 Ultra-high accuracy Ultrasonic Thickness Gauge uses professional ultrasonic technology to obtain ultra-high accuracy Measured values and store them in memory. This smart instrument can measure the minimum thickness of the workpiece to 0.3mm and the maximum adjustable resolution to 0.001mm.
Model：
Contact
Details SPEC CAT

PhaseII UTG-2650 High-Precision Ultrasonic Thickness GaugeSPEC

PhaseII UTG-2650 High-Precision Ultrasonic Thickness GaugeDetails

PhaseII UTG-2650 High-Precision Ultrasonic Thickness GaugePacking list

SKU
NB016740
Measurement range
0.3~20mm
Probe style
Split probe
Speed of sound
1000~9999m/s
measurement error
±0.005/0.05mm
Display resolution
0.1/0.001mm
Data storage
Store 500 measurements in 5 groups
Operating language
Chinese
Display
4-Bit LCD with backlight
Host size
149*73*32mm
Weight
160g
Application
Steel, Aluminum, Titanium, Plastic Products, Ceramics, Glass and Miscellaneous Good Ultrasonic Conductors
Power Supply
2 * AA alkaline battery
Max/min alarm preset
Yes.
Environmental temperature
0~50℃
Probe Frequency
4MHz~25MHz
output
none
Operating Time
200H (no backlight)
Power consumption
Operating current not more than 3V
UTG-2650
High-Precision Ultrasonic Thickness Gauge
US Phase II UTG-2650 Ultra high accuracy Ultrasonic Thickness Gauge Picture

The UTG-2650 uses professional ultrasonic technology to obtain ultra-accurate measurements and store them in memory. This intelligent instrument can measure workpieces with a minimum thickness of 0.3 mm and a maximum adjustable resolution of 0.001 mm. UTG-2650 is mainly used for the thickness measurement of metallic and non-metallic materials, such as steel, aluminum, titanium, plastic products, ceramics, glass and other ultrasonic conductors. As long as the upper and lower surfaces of the workpiece are parallel, the UTG-2650 can accurately display the measured values in metric or imperial systems with a simple calibration of known thickness and sound velocity.

UTG-2650 Ultrasonic Thickness Gauge

FAQ
QHello, what is the measurement accuracy of this UTG-2650 Ultrasonic Thickness Gauge?
A Hello, below 3mm is ± 0.005mm, and below 20mm is ± 0.05mm.
QHow much can this UTG-2650 high-precision Ultrasonic Thickness Gauge measure?
A UTG-2650 high-precision Ultrasonic Thickness Gauge can measure the thickness of 0.3mm.
QFind an Ultrasonic Thickness Gauge for GB/T11344
A This UTG-2650 Ultrasonic Thickness Gauge is it.
