American PHASE II DVM-1000 Digital Vibration Meter

Acceleration Measurement range 0.1~ 400.0m/s ², Displacement Frequency range 10Hz~ 1KHz, Speed Measurement range 0.01~ 400mm/s, Speed Frequency range 10Hz~ 1KHz, Displacement Measurement range 0.001~ 4.000 mm, Speed Frequency range 10Hz~ 500Hz
Model：
Contact
Details SPEC CAT
Similar products

PhaseII DVM-1000 Digital Vibration MeterSPEC

PhaseII DVM-1000 Digital Vibration MeterDetails

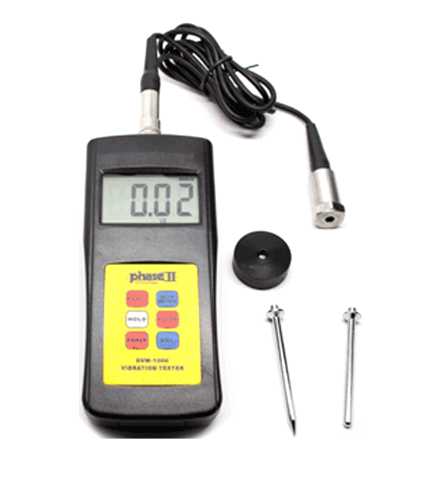

PhaseII DVM-1000 Digital Vibration MeterPacking list

SKU
NB016746
Acceleration Measurement range
0.1~400.0m/s²
Frequency range
10Hz~1KHz
Measurement range
0.01~400mm/s
Frequency range
10Hz~1KHz
Measurement range
0.001~4.000mm
Frequency range
10Hz~500Hz
Rotation speed
5-100,000 r/min
Frequency range
0.1~10KHz
error of indication
<5%
Operating temperature
0~45℃
Power Supply
4 AAA alkaline batteries
Dimension
161*69*32mm
Weight
300g
DVM-1000
Digital Vibration Meter

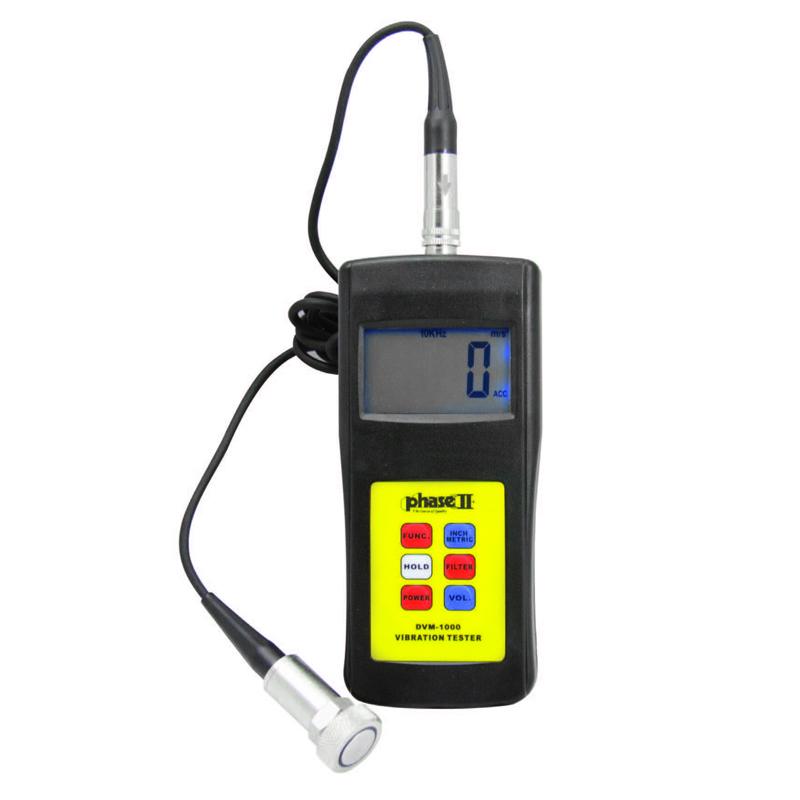

American PHASE II DVM-1000 Digital Vibration Meter Picture

The PHASE II brand has now introduced the professional DVM-1000 vibrometer to our product line. This versatile vibrometer will measure velocity, acceleration, displacement, and rotational speed. The full frequency range is used for a wide range of inspections.

Functional loads, DVM-1000 vibrometer provides statistics, metric to imperial conversion, hold function & more!!

The multi-function vibrometer measures velocity, acceleration, displacement and rotational frequency


Functional features

  • Fast and accurate analysis to detect the balance and deviation of moving machinery

  • Large LCD display

  • Data statistics: average, maximum, minimum, number of measurements and standard deviation

  • Metric Imperial Conversion

  • Hold maximum function

  • Regular output (AC output 2.0V)


FAQ
QWhat is the Probe diameter and Probe line of DVM-1000?
A Probe diameter 15.5mm, the length of the probe wire is 1380mm
