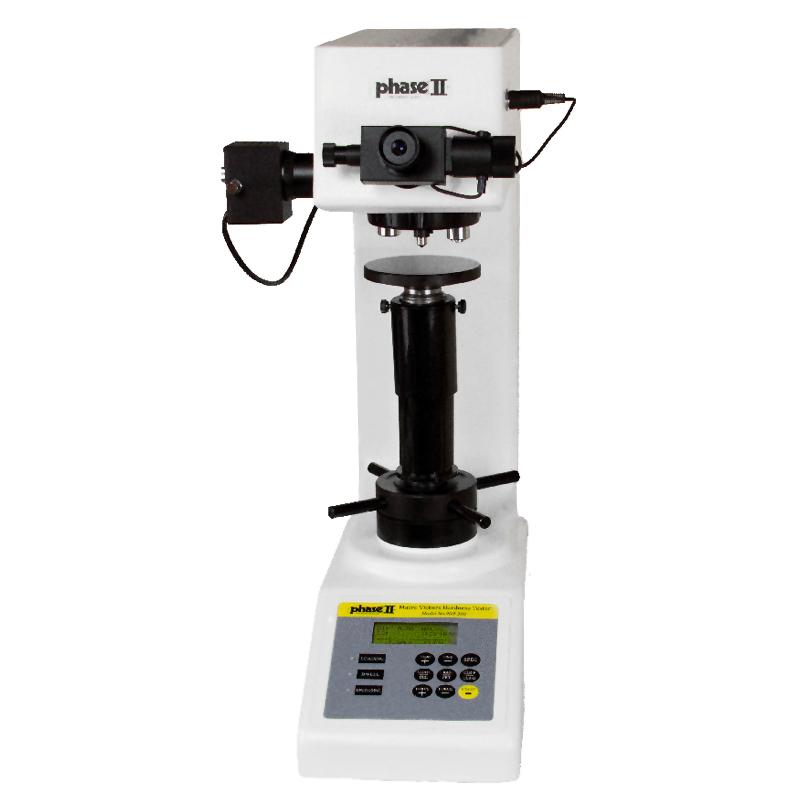

PhaseII 900-398A Digital display Vickers Hardness Tester with automatic turret
900-398A
PhaseII 900-398A Vickers Hardness TesterSPEC
PhaseII 900-398A Vickers Hardness TesterDetails
PhaseII 900-398A Vickers Hardness TesterPacking list
- SKU
- NB016756
- test force
- 9.807N、19.61N、24.52N、29.42N、49.03N、98.07N、196.1N、249.2N、490.3N
- Test force application method
- Automatic (loading/loading/unloading)
- Microscope magnification
- 100X、200X
- Test force holding time
- (0.60) s can be set
- Minimum Graduation of micrometer drum
- 0.125um
- test range
- 1HV~2967HV
- Switching of objective lens/indenter
- Automatic turret
- output
- Built-in microprinter RS232
- The maximum height of the sample that can be tested
- 170 mm
- The maximum distance from the center of the indenter to the outer wall
- 130mm
- objective lens
- 10x、20x、40x selectable
- Light source
- cold light source
- Power Supply
- 110V/220V,60/50Hz
- Dimension
- 535*225*580mm
- ± 398A Vickers hardness Tester
- Includes camera, adapter and manual measurement software
- ± 398B Vickers hardness Tester
- Includes camera, adapter and automatic measurement software
The PHASE II digital display Vickers Hardness Tester with professional technology has a precise measurement system suitable for hardness analysis of metal samples in metallographic laboratories or production workshops.
The PHASE II Digital Vickers Hardness Tester is an all-rounder Hardness Tester with a user-friendly system designed for the accurate measurement of small precision parts, thin workpieces, hardened layers and a wide variety of steel components. The 900-398 Vickers Hardness Tester is available for forces from 1 kg to 50 kg with digital display technology. Following the ASTM E-384/92 Vickers Hardness Tester standard, the 900-398 digital Vickers Hardness Tester will provide excellent repeatability.

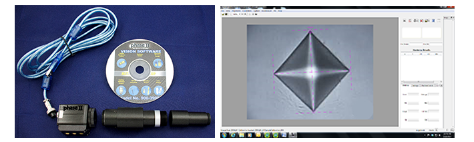

The PHASE II Vickers Hardness Tester is a good product for any environment, with a 5-year warranty and long-term free technical support The 900-398 Vickers Hardness Tester includes a sophisticated camera and measurement software package for clearer indentation images and more accurate measurement results. Through the load cell, the microcomputer closed-loop system control is used to accurately control the loading/loading/unloading of the test force. The large LCD display shows the measurement method, the test force, the indentation diagonal length, the hardness value, and the dwell time of the test force. All information, such as the diagonal length of the indentation, the hardness value, the statistics and the conversion of the hardness value, are displayed on the LCD screen or on the connected computer.
Model differences
Model: 900‐398A Vickers Hardness Tester
Includes camera, adapter glasses and manual measurement software
Model: 900‐398B Vickers Hardness Tester
Includes camera, adapter glasses and automatic measurement software
