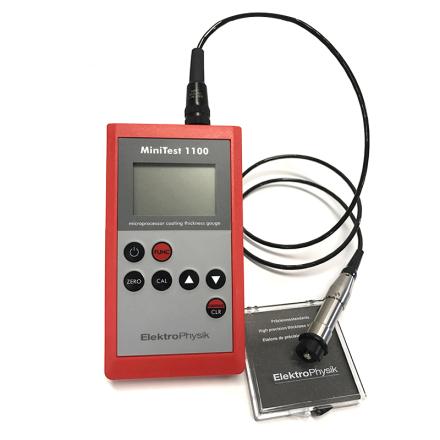

Brand：ElektroPhysik
Model：MiniTest 1100 + F3 Probes
Name：Coated platings Thickness Gauge
Specifications
| Measurement principle | magnetic Induction |
| Measurement range | 0~3000μm |
| resolution | 0.2μm |
| Minimum measurement surface | Φ5mm |
| probe | Line probe |
| Calibrated Certificate | none |
| Unit display | μm |
| statistical function | none |
| Interface | RS-232 |
| Data storage | 1 |
| Power Supply | 1 * 9V alkaline battery, AC adapter |
| Standards | DIN 50981、DIN 50982、DIN 50984、ISO 2178、ISO 2360、BS 5411、ASTM B499、ASTMB244-CE |
| system language | English |
| Display screen | LCD screen |
| Operating temperature | 0~50℃ |
| Battery life | 10,000 measurements |
| Weight | 270g |
| Dimension | 150*82*35mm |
Packing list
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/16769/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
