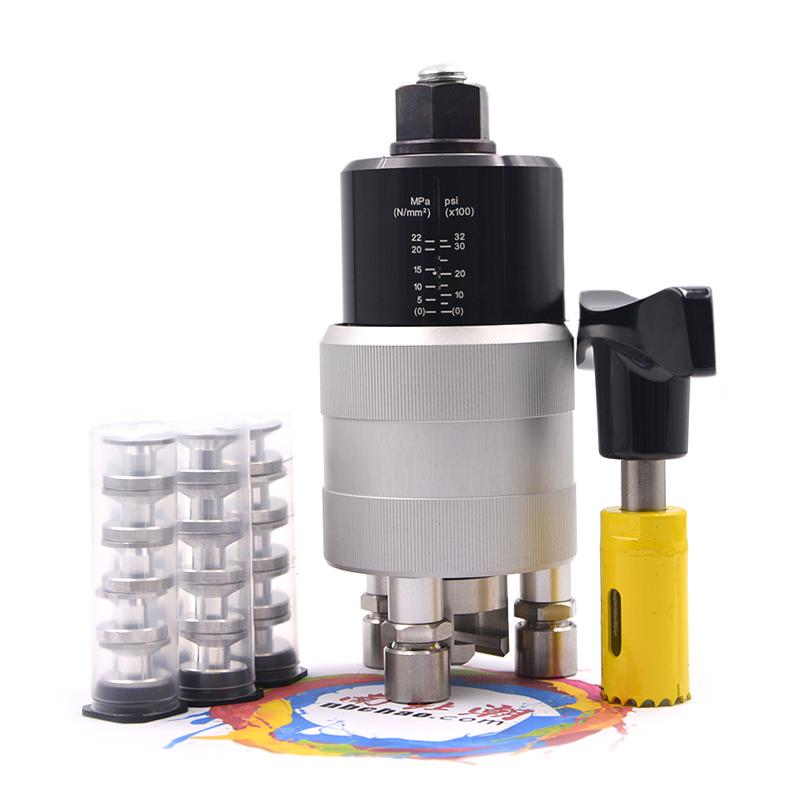

Elcometer 106 F106-1 Pull-out adhesion Tester 0~3.5MPa

F106----1

Drawing adhesion Tester

Range 0~3.5MPa; with 20mm diameter forging die; no power supply required; dial display.

Introduction

The Elcometer 106 Adhesion Tester is easy to operate and portable, with a wide measurement range.

• Comes with a carrying case – suitable for field testing

• Manual operation – no power supply required

• Tools for EN13144 and ISO 4624 testing are included

Applications

Elcometer 106 Pull-Off Adhesion Tester is suitable for paint or bridge deck spraying, coatings on steel, aluminium, concrete, and more.

Pictures

Test Method:

1) The forging die is glued to the coating. 106 exerts force to the forging die through the internal spring to lift, and the pulling force increases.

2) When the coating is pulled away from the surface, the indicator on the dial shows the value of adhesion, expressed as the force exerted to pull the dolly per unit area.

3) To determine the type of failure, the forging die face needs to be inspected.

4) To provide sensitivity at low values or on uneven surfaces, a 40mm (1.52") dolly can be used. Divide by 4 with a scale reading when using.

Meets standards

AS 1580.408.5, ASTM D 4541, AS/NZS 1580.408.5, EN 13144, EN 24624, ISO 4624, ISO 16276-1, JIS K 5600-5-7, NF T30-062, NF T30-606.

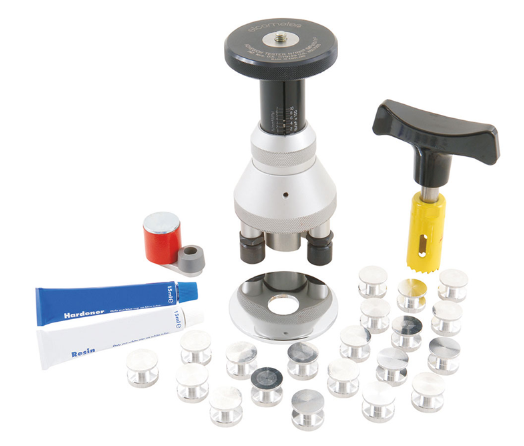

Packing list：Host * 1, forging die * 20, glue * 1, support ring * 1, magnetic forging die clip * 1, cutter * 1, carrying box * 1, operation manual * 1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
