Specifications
| Accuracy | ±1%F.S |
| pressure rating | 26MPa (3800psi) |
| Kit diameter | 20mm |
| Range | 2~25MPa/300~3600psi |
| Resolution | 0.1MPa(10psi) |
| Instrument length | 290mm |
| Brake height | 85mm |
| Kit Weight | 4kg |
| Calibrated Certificate | none |
| Weight | 1.8Kg |
Packing list

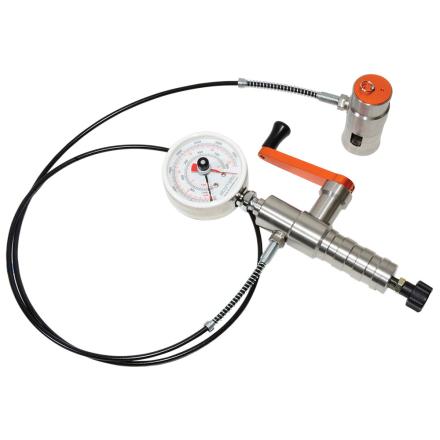

Elcometer 506 Adhesion Tester x1 with 20mm die x10, 20mm die standard support ring x1, 20mm die cutter handle x1, 20mm die cutter x1, Araldite standard two-part epoxy gluing agent (2 x 15ml hose) x1, ground pad x1, carry case x1, and operating manual.
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/16791/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
