Specifications
| Accuracy | ±1%F.S |
| pressure rating | 26MPa (3800psi) |
| Kit diameter | 20mm |
| Range | 2~25MPa/300~3600psi |
| Resolution | 0.01MPa(1psi) |
| Instrument length | 290mm |
| Brake height | 85mm |
| Kit Weight | 4kg |
| Power | 2 LR6 (AA) alkaline dry batteries |
| Battery life | 2000 hours |
| Calibrated Certificate | Yes. |
| Weight | 1.8Kg |
Packing list

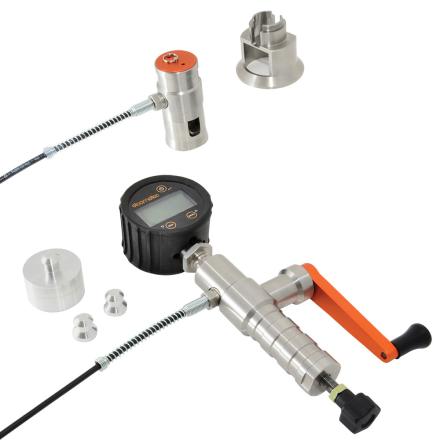

Elcometer 506 Adhesion Tester x1 with 20mm forging die (x10), 20mm forging die standard support ring x1, 20mm forging die cutter handle x1, 20mm forging die cutter x1, Araldite standard two-part epoxy gluing agent (2 x 15ml hose) x1, ground pad x1, carry case x1, 2 LR6 (AA) batteries x1, test certificate and operation manual.
After-sales instructions
Warranty days: 365 days
If the product quality is not caused by human beings, the manufacturer will provide one-year free warranty service (except for accessories and fragile consumables)
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/16796/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
