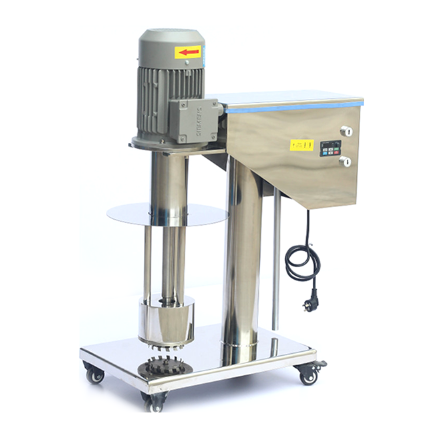

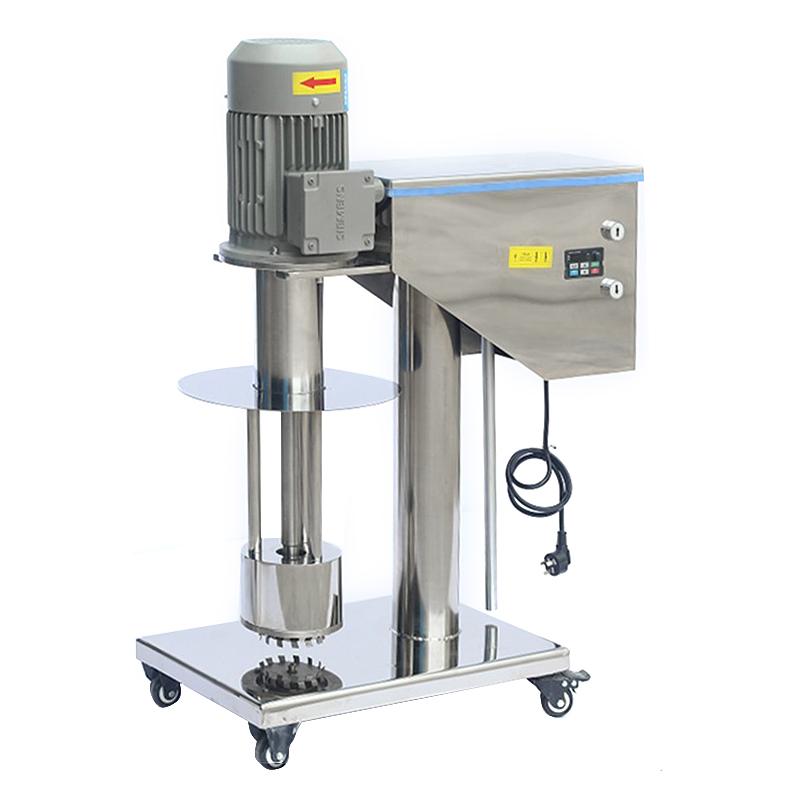

MUXUAN MXY-C3000-30 Lab Grinder 3000W/30L

MXY-C3000-30

Lab Basket Grinder

Introduction

Laboratory electric lifting basket mill is an economical wet dispersion grinding equipment developed for scientific research institutions and enterprises and institutions. The equipment can run for a long time, the speed is stable and the noise is low, and the two production processes of dispersion and grinding are completed at the same time, so as to effectively reduce the fineness of medium and low viscosity materials in a short time.

Scope of application

【Material viscosity】:≤5000 cps(mPas)

[Applicable materials]: materials with high requirements for fineness, such as interior wall latex paint, industrial paint, wood paint, various color pastes, water-based oil-based inks, pesticide suspensions, etc.

Operating Principle

When the motor of the laboratory electric lifting basket sand mill is running, it drives the lever and the dispersion disc to rotate at high speed, so that negative pressure is generated in the grinding body, so as to promote the material to be forcibly sucked into the grinding cavity, and the high-density zirconia beads in the grinding cavity continue to collide and rub, and the particle size of the material becomes smaller and the fineness is reduced.

Advantages

The grinding efficiency is high and the product fineness is good

The maximum speed of the equipment can reach 3000rpm, the powerful arc impeller kinetic energy drive, and the zirconia lever make the grinding medium in the cavity produce irregular movement, and the high-speed collision and friction between each other make the powder particle size quickly smaller, the grinding fineness can generally reach less than 10um, and the liquid-liquid dispersion grinding can reach sub-micron or even nanometer level. The separating plate is CNC machined by the whole material, which is non-clogging and has a long life and reduces maintenance costs.

Easy to operate and easy to clean

The equipment comes with a high-efficiency energy-saving inverter, which can directly control the start and speed regulation of the equipment; it is equipped with a manual or electric lifting device, which is economical and energy-saving, and the high-end atmosphere of electric lifting is labor-saving; it can realize the relative sealing of the cylinder and the cover, and the solvent volatilization is less in the grinding process; the unique design of the grinding cavity, direct solvent circulation cleaning, the whole machine is made of stainless steel, the design is beautiful and generous, and the cleaning is convenient; the grinding time can be set according to the process, and the timing of the shutdown is very convenient.

The temperature rise is small, and the product is stable

The ingredient barrel is equipped with a double-layer cooling jacket, the barrel is polished with mirror, beautiful and easy to clean, and it is cooled by water during the operation of the equipment, which has a good cooling effect, and the conventional temperature rise is less than 10º.

Strong non-standard

The lifting form of the equipment is electric lifting, non-standard customized explosion-proof type, and the material contact parts can be made of SS304 SS316L material; If there are high temperature, high pressure, flammable, explosive, corrosive and other Operating Conditions, it is necessary to provide detailed data and tailor-made.

Equipment selection

Packing list：host X1, barrel X1, manual X1, certificate of conformity X, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
