MUXUAN MJB-B120 Laboratory Stirrer High and Low Speed Regulation 100000cps Viscosity
SE
MJB-B120
MuXuan MJB-B120 Laboratory StirrerSPEC
MuXuan MJB-B120 Laboratory StirrerDetails
MuXuan MJB-B120 Laboratory StirrerPacking list
- SKU
- NB016822
- Motor power
- 120W
- Speed regulation range
- Low grade: 60~500rpm, high grade: 240~2000rpm
- throughput
- 500~20000ml
- Power
- AC220V，50Hz
- Dimensions
- 215*310*720mm
- Host Weight
- 10Kg
- Torque
- 0.52Nm
- Duty Cycle
- 100 ％
- Speed regulation
- Digital display stepless speed regulation, high and low second gear
- Speed display unit
- rpm
- Torque
- 50Ncm
- Stirringrod clamping range
- 0.5～10mm
- Stirringrod penetration range
- 0.5 ～ 8mm
- Impeller configuration
- Four-blade helical Impeller (other forms of Impeller can be selected according to actual needs)
- Maximum Max. Viscosity
- 100000mPa.s
- Operating Temperature
- ≤40℃
- Relative Humidity
- ≤90％
Introduction

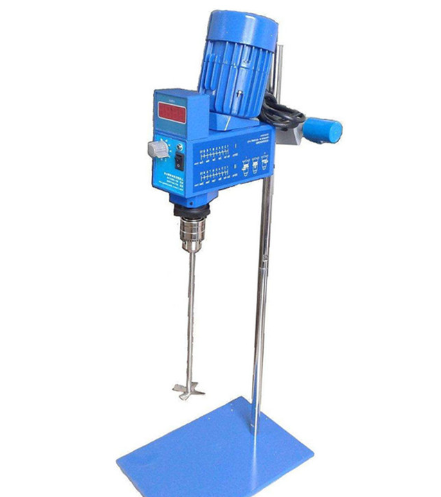

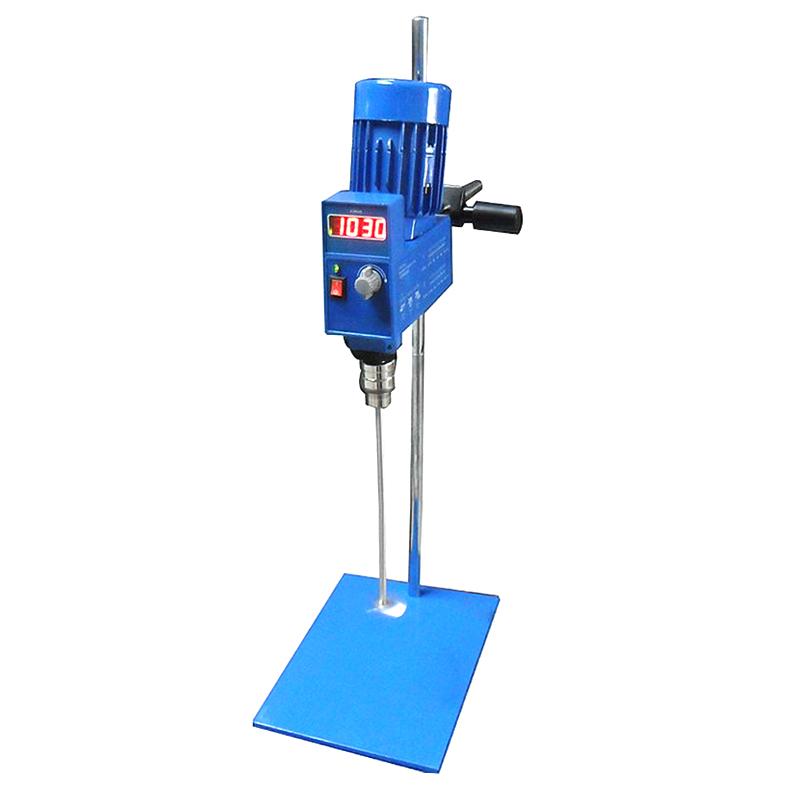

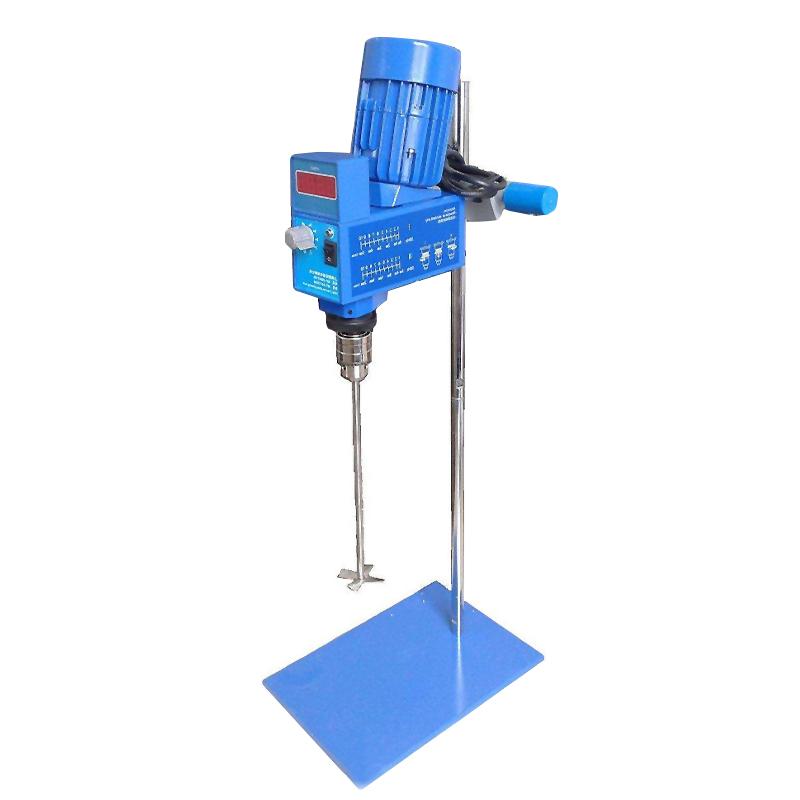

Shanghai Muxuan MJB-B120 laboratory mixer is driven by a compact micro motor, which is suitable for mixing low to medium and high viscosity liquids in the laboratory. The machine has an exquisite design and structure, and is driven by a motor. Composed of frictional speed change mechanism and speed control controller, etc., the stirring main machine is made of high-density die-casting aluminum alloy as the body, and the running state is stable; the speed and torque at the output end are basically kept constant, and the speed and torque of the high-low gears are doubled, and the speed control controller Using IC speed detection full constant power speed regulation technology, it can instantly and effectively compensate the speed change caused by load changes and power supply Voltage fluctuations. The intuitive digital stirring speed on the screen provides guarantee for data collection. It has large output power and high torque. Experimental convenience and other characteristics.
Application
【Material viscosity】:≤100000 cps 【Production capacity】:0.3L-20L
[Applications]: It is suitable for dispersing and mixing materials in industries such as biology, medicine, food, paint, ink, adhesive, dye, and pesticide.
native features
High-performance motor, lower noise, more stable operation, to ensure the high quality of the whole machine;
CPU digital display dynamic speed control, intelligent control of the whole machine;
According to the viscosity of the material, it can be adjusted in stages, low-grade: 60-500 rpm, high-grade: 240-2000 rpm
