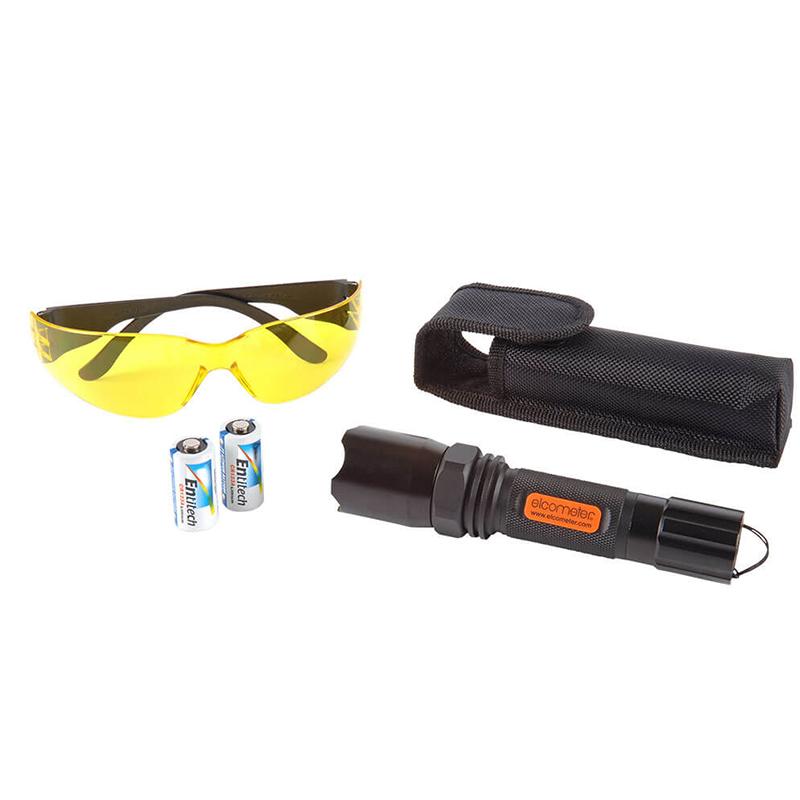

Elcometer 260 D260----2 Fluorescent (UV) pinholing inspection flashlight
SE
D260----2
Elcometer D260----2 Fluorescent (UV) pinholing detection flashlightSPEC
Elcometer D260----2 Fluorescent (UV) pinholing detection flashlightDetails

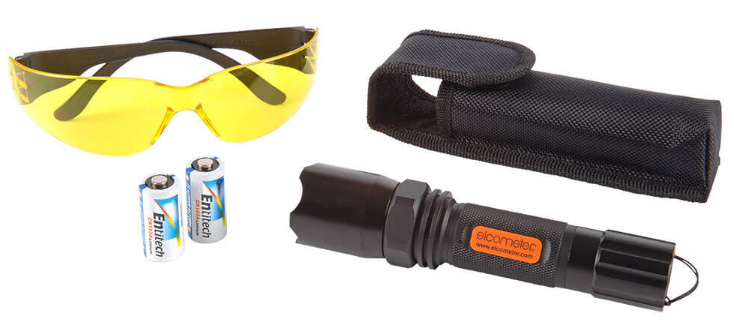

Elcometer D260----2 Fluorescent (UV) pinholing detection flashlightPacking list
- SKU
- NB001685
- Lens type
- Binary Diffuse Lens
- Voltage output
- 3 watts
- beam wavelength
- 405nm ±5nm
- Flashlight housing
- Hard anodic oxidation aluminum
- Power
- 2X123A lithium battery
- Operating Time
- 6 hours (continuous use)
- Host size
- 150mm*35mm (5.9"*1.4")
- Weight
- 173g (6.1oz)
- meet the standard
- ASTM E 2501
Introduction
The Elcometer 260 is battery powered and constructed of aluminum, providing a fast and low-cost method of detecting pinholes in coatings.
Elcometer 260 is equipped with a one-watt purple light-emitting tube. The flashlight wavelength is 405nm (±5nm), which is perceived as purple by the human eye.
Apply the UV-emitting additive to the base coating, shine a UV flashlight on the coating with purple light, and observe that the base coating is not covered by the subsequent fluorescent coating, which clearly indicates that this is the location of the pinhole.
Features
Low cost and easy to use
Using UV to shine violet light on the base coating can identify the location of any vacuum.
The sturdy structure
is made of aluminum alloy, and the O-ring is dust-proof and moisture-proof.Easy to carry and safe
battery charging, the click switch with a tail lock ring prevents accidental turning on during transportation or storage.
plan
- 1ASTM D5162《Standard Practice for Discontinuity (Holiday) Testing of Nonconductive Protective Coating on Metallic Substrates》
- 2SY/T 0315-2013《Technological specification of external fusion bonded epoxy coating for steel pipeline》
- 3ASTM B809-2018《Standard Test Method for Porosity in Metallic Coatings by Humid Sulfur Vapor (“Flowers-of-Sulfur”)》
- 4ASTM G62-2023《Standard Test Methods for Holiday Detection of Coatings used to Protect Pipelines》
