MUXUAN MXF-C1500 Experimental Small Batch Stirring Disperser Digital Display Speed Regulation, Manual Lift 1500W/30L

SE
MUXUAN MXF-C1500 small batch stirring disperser motor Power 1500W, spindle Rotation speed 0~5000rpm, lifting stroke 370mm, dispersion amount 5~ 30L, dispersion stirring head standard 80/100mm, can be placed in the container maximum size diameter 300mm, high 430, lifting mode manual.
Model:
Certificate

MuXuan MXF-C1500 Small Batch Mixing DisperserSPEC

MuXuan MXF-C1500 Small Batch Mixing DisperserDetails

MuXuan MXF-C1500 Small Batch Mixing DisperserPacking list

SKU
NB016857
Motor power
1500W
Speed regulation range
0~5000rpm
Lifting stroke
370mm
throughput
5~30L
Power Supply
220V
Dimensions
510*520*1050mm
Impeller diameter
F80 / 100mm
Maximum size of container that can be placed
Diameter 300mm, height 430
Lifting method
Manual lift
MXF-C1500
Small Batch Mixing Disperser

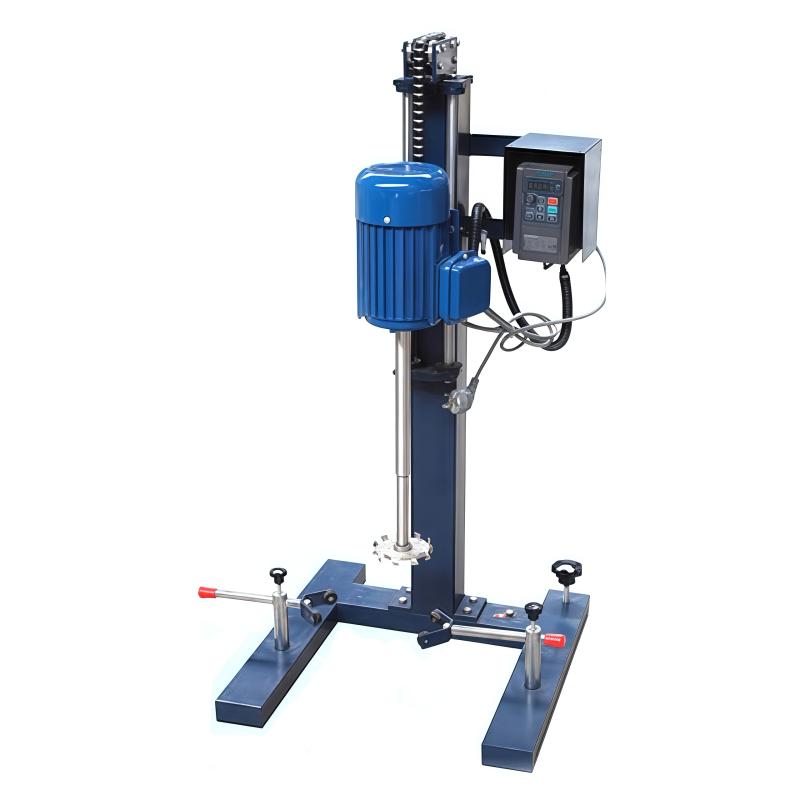

MUXUAN MXF-C1500 Experimental Small Batch Stirring Disperser Digital Display Speed Regulation, Manual Lift 1500W/30L Picture

Introduction

MXF-C series Pilot-scale Testing small-batch dispersing mixer adopts a new high-performance variable frequency motor as the drive motor. Compared with other types of high-speed motors, it has small size, large output power, stable speed, variable frequency and variable speed, and large starting torque. , High operating efficiency, low energy consumption, low noise, high stability, etc. It effectively improves the working safety environment of laboratory test personnel, and is a new upgraded product that is more suitable for laboratory use.

Advantages of this machine

This machine is divided into electric and manual lifting, using a new high-performance variable-frequency motor as the drive motor. Compared with other types of high-speed motors, it has small size, large output power, variable frequency and variable speed, large starting torque, high operating efficiency, Low energy consumption, low noise, high stability and other advantages.

Modular design, distinctive inner quality; more convenient maintenance.

CPU frequency conversion digital display dynamic speed control, timing function can be selected according to needs, and the whole machine is intelligently controlled;

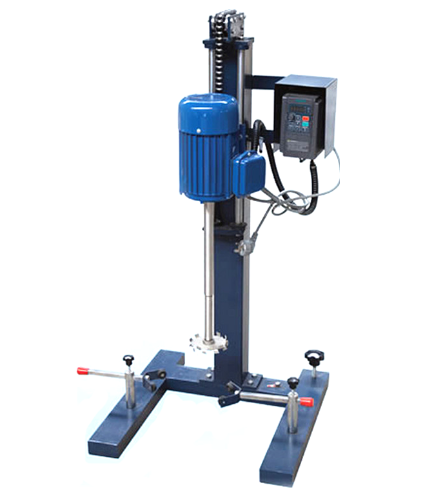

Shanghai Muxuan MXF-C1500 small batch mixing and dispersing machine

Application

【Production capacity】:5-30L

[Applications]: It is suitable for dispersing and mixing materials in industries such as biology, medicine, food, paint, ink, adhesive, dye, and pesticide.

MXF-C series

modelpowerProcessing capacity
MXF-C1100
manual lifting
1100W5-30L
MXF-C1500
manual lifting
1500W5-30L
MXF-C1100D
electric lift
1100W3-20L
MXF-C1500D
electric lift
1500W3-20L
Other parameters
Speed rpm0-5000
Dispersing headStandard 80/100mm Optional 60 120mm
Lifting stroke370mm
Barrel optional 6L 12L 20L


FAQ
QWhat is the minimum processing capacity for this mini-batch Stir Disperser?
A Hello, the minimum is 5L.
QWhat is the maximum speed of the MUXUAN Stir Disperser?
A Hello, it is better to be 5000rpm.
QDoes the MXF-C1500 Experimental Small Batch Stir Disperser have a batching cartridge?
A Hello, no, it is optional.
QDo you have the Mixing Disperser required in the GB/T21868.3 standard?
A This MXF-C1500 Mixing Disperser will do.
