CHNSPEC CS-380 three-angle gloss meter 20 °/60 ° and 85 °

SE
20 °/60 °/85 ° three angles, to meet the JG "696-level Glossmeter requirements, can pass the national metrology authentication, support average mode measurement; standard USB/Bluetooth interface.
$646.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

CHNSpec CS-380 Gloss meterSPEC

CHNSpec CS-380 Gloss meterDetails

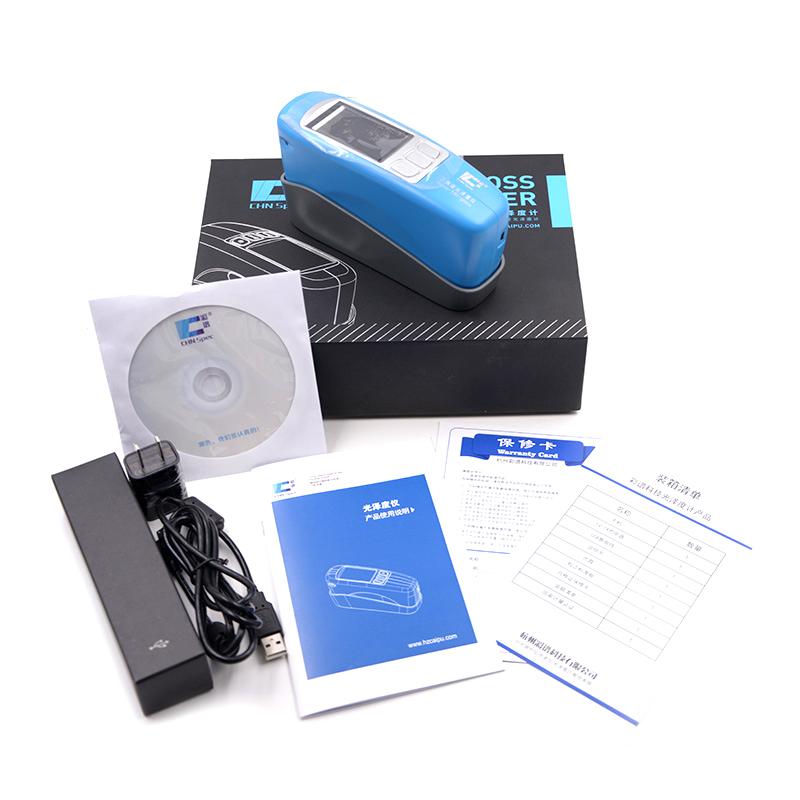

CHNSpec CS-380 Gloss meterPacking list

SKU
NB016876
Measurement angle
20°/60°/85°
Measurement range
0~2000GU(20°)；0~1000GU(60°)；0~160GU(85°)
Repeatability
0~100GU：0.2GU；100~2000GU：0.2%GU
Measuring Areas
10*10mm(20°)；9*15mm(60°)；5*38mm(85°)
Measurement mode
Average mode, master standard and sample measurement
Graduation
0.1GU|1GU
Standards
DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5 and JJG696
Interface
USB, Bluetooth (optional)
Data storage
Can store 100 master standards, 10,000 samples
Operating language
Simplified Chinese, English
Dimensions
165*51*77mm
Weight
Approx. 400g
Power Supply
3000mAh lithium battery
Accuracy
Meet JJG 696 level 1 glossmeter requirements
Measurement time
1s
Operating temperature
0~40℃
Relative Humidity
< 85% RH, no condensation
Scope of application
Paints, Coatings, inks, Eletroplating, Plastic Electronics, Hardware, etc
CS-380
Gloss meter
20 °/60 °/85 ° three angles, to meet the JG "696-level Glossmeter requirements, can pass the national metrology authentication, support average mode measurement; standard USB/Bluetooth interface.

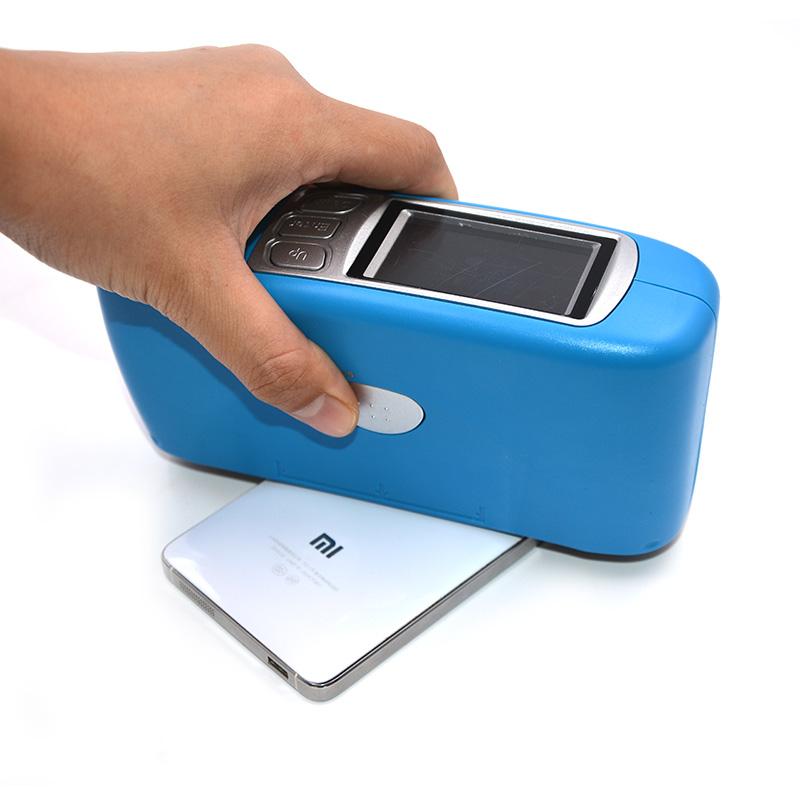

CHNSPEC CS-380 three-angle gloss meter 20 °/60 ° and 85 ° Picture

CS-380 Multi-Angle Gloss Meter Overview

The CS-380 multi-angle gloss meter measures angles including:20°, 60° and 85°.Complies with DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5 and JJG696. The measuring range is 0-2000 GU.It is mainly used for the measurement of the surface gloss degree of materials in spraying, plastic, printing, metal, ceramics, building materials, leather, paint and other industries.

Sensor advantages of the CS-380 three-angle gloss meter

Stability advantage of CS-380 three-angle gloss meter

Detail drawing of the structure of the CS-380 three-angle gloss meter

Please click here for the detailed operating instructions of this CS-380 color spectrum gloss meter:Color spectrum CS-300CS-380 gloss meter operating instructions .pdf


FAQ
QCS-380 gloss meter Bluetooth function is standard or optional?
A Hello, it is optional.
QHow is the CS-30 gloss meter calibrated?
A Hello, after booting, the instrument will automatically enter the calibrate page. Press the "Test" button to automatically calibrate. You hear a "beep" and the words "calibrate successfully" appear, indicating that the calibrate is successful.
QDoes the CS-380 support Bluetooth data function?
A Hello, yes, the purchase of this Gloss meter is optional whether it is equipped with Bluetooth function.
QDo you have the gloss meter required in the JJG696 standard?
A This CS-380 gloss meter will do.
QHow many sets of data can the color spectrum CS-380 gloss instrument store?
A Hello, this color spectrum CS-380 gloss meter can store 100 master standards and 10,000 samples.
QWhat is the difference between CS-380 and CS-300?
A Hello, the main difference between CS-380 and CS-300 is that the 380 model is a 3-angle gloss meter, while the 300 is a 60 ° single angle.
