KSJ WGG60-ES4 Stone Glossmeter Gloss range 0~150GU 60 °

KSJ WGG60-ES4 Stone Glossmeter is a portable Glossmeter specially designed for Stone with a built-in rechargeable battery. The WGG60-ES4 Stone Glossmeter has a Gloss Reading Range of 0~199GU, error of indication +/- 2GU, projection angle 60 °.
Model：
Certificate
Contact
Details SPEC
Similar products

KSJ Stone GlossmeterSPEC

KSJ Stone GlossmeterDetails

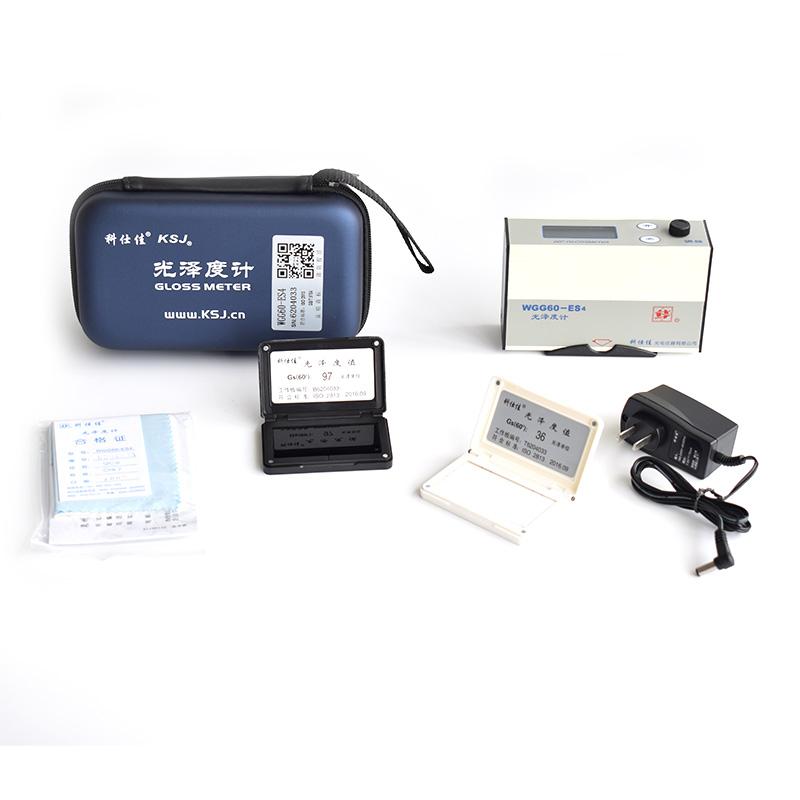

KSJ Stone GlossmeterPacking list

SKU
NB016922
Measurement angle
60°
Measurement range
0~199GU
Measuring Area
18*36mm
error of indication
±2GU
Graduation
1GU
Meet the standard
ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
Dimension
130*40*80mm
Weight
430g
Power Supply
Built-in Ni-MH battery pack 4x1.2V, 600mAh
Measurement port size
20*50mm
Reading Range
0~199GU
Zero Error
1GU
Stability
1GU
Operating Time
Power-on continuous use time > 48h
Charging time
The whole charging process takes 14 to 16 hours.
Charger
AC 187~ 242 (50Hz)
Stone Glossmeter

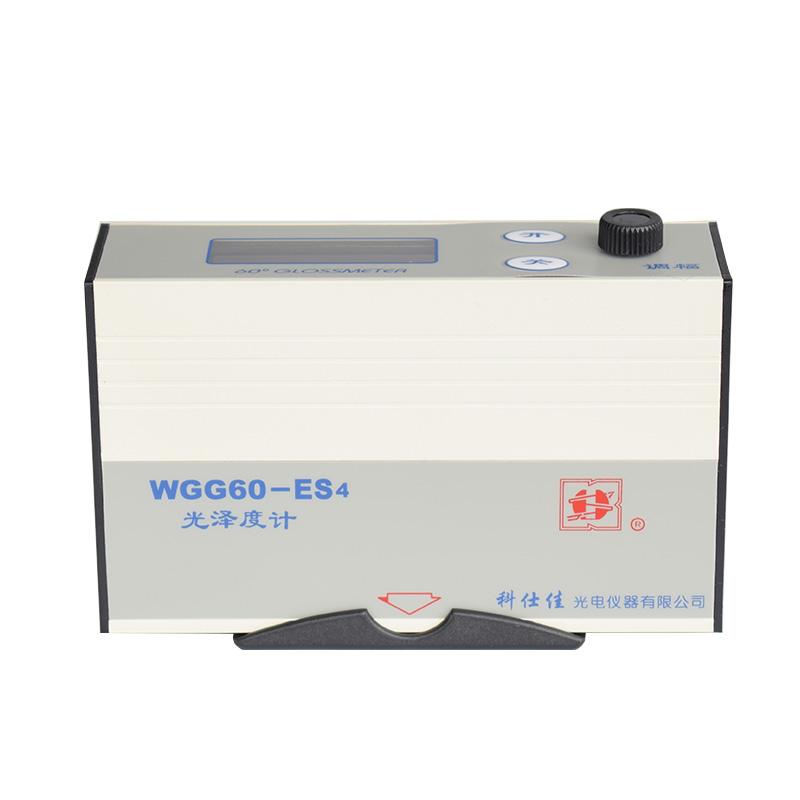

KSJ WGG60-ES4 Stone Glossmeter Gloss range 0~150GU 60 ° Picture

Overview

KSJ WGG60-ES4 Stone Gloss Meter is a small portable gloss meter, which is dedicated to stone gloss testing.Volume of WGG60-ES4 Stone Gloss MeterPalm-sized, easy to carry.

Built-in rechargeable battery pack. The whole charge can be used for more than 24 hours.

Scope of application

WGG60-ES4 Stone Gloss Meter is a gloss meter specially designed for stone, especially suitable for gloss measurement of marble, granite, terrazzo and other stone surfaces.

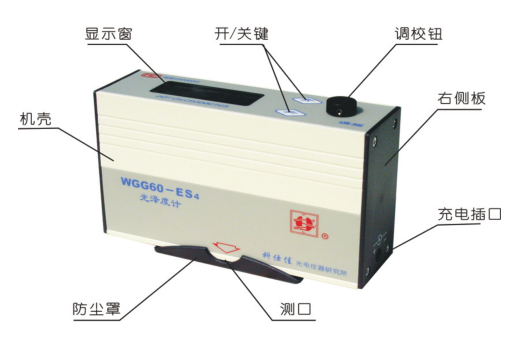

Structural diagram


Structural diagram of WGG60-ES4 stone gloss meter

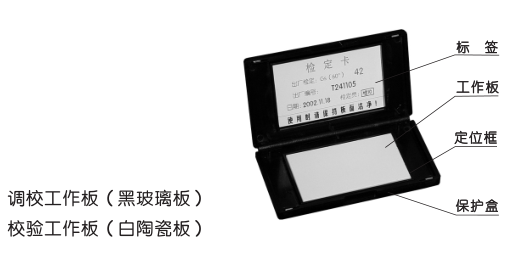

KSJ WGG60-ES4 Stone Gloss Meter Calibration Plate

Meets standards

WGG60-ES4 Stone Gloss MeterIt conforms to the standard ISO2813, GB9754, ASTM D2457, ASTM D523, GB/T13891, GB7706, GB8807, JJG696-2002 "Mirror Gloss Meter and Gloss Plate" Metrological Verification Regulations.

Presentation diagram

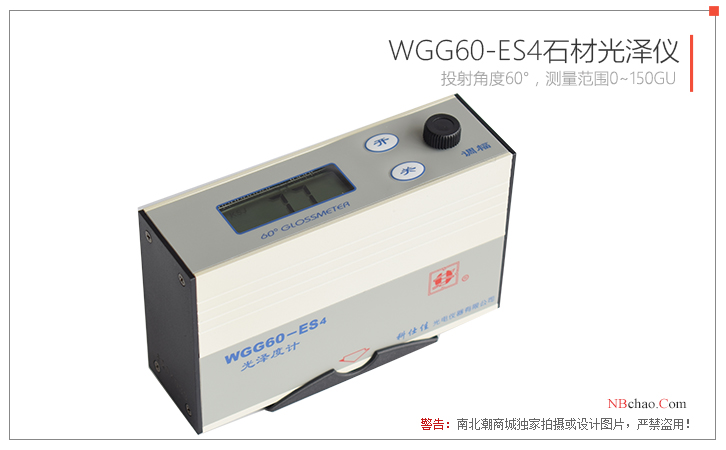

KSJ WGG60-ES4 stone gloss meter display diagram

FAQ
QCan the battery of the glossmeter be charged?
A Yes, it's a rechargeable battery.
