KSJ WGG60-E4 Glossmeter Reading Range 0.0~199.5GU

KSJ WGG60-E4 Glossmeter Measurement range is 0.0~199.5GU, suitable for gloss measurement of various metal and Non-metallic surfaces, WGG60-E4 Gloss Tester conforms to ISO2813, GB9754, ASTM D2457 standards, Measuring Area size is 36x18mm.
Model：
Certificate
Contact
Details SPEC VIDEO OI
Similar products

KSJ Gloss MeterSPEC

KSJ Gloss MeterDetails

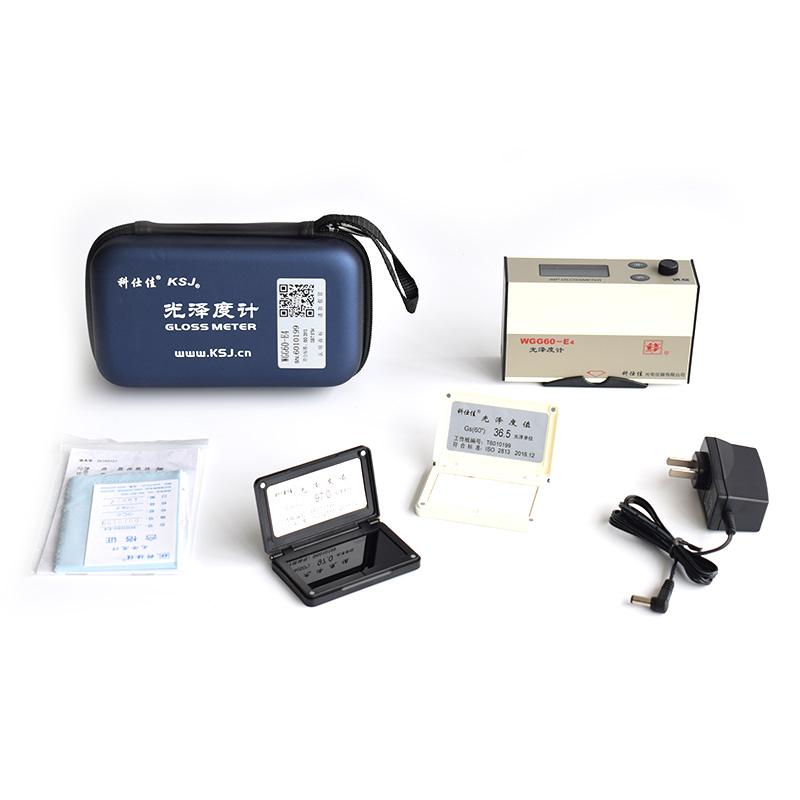

KSJ Gloss MeterPacking list

SKU
NB016924
Measurement angle
60°
Measurement range
0~199.5GU
Measuring Area
18*36mm
error of indication
±2GU
Graduation
0.5GU
Meet the standard
ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
Dimension
130*40*80mm
Weight
430g
Power Supply
Built-in Ni-MH battery pack 4x1.2V
Measurement port size
20*50mm
Reading Range
0~199.9GU
Zero Error
0.5GU
Stability
1GU
Operating Time
Power-on continuous use time > 48h
Charging time
14~16h
Charger
AC 187~ 242 (50Hz)
Gloss Meter

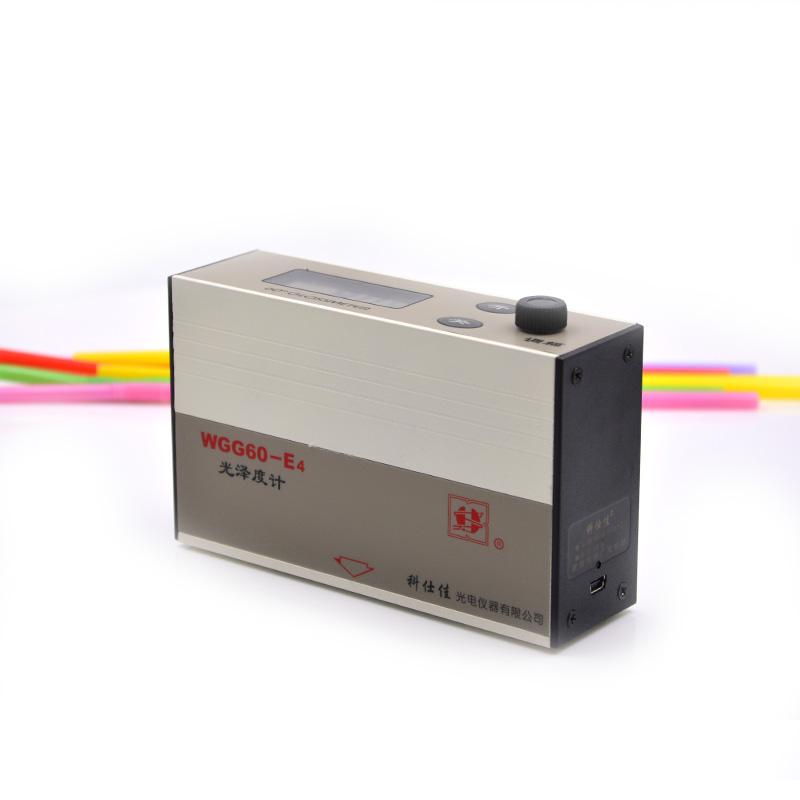

KSJ WGG60-E4 Glossmeter Reading Range 0.0~199.5GU Picture

Overview

Palm-sized, easy to carry.

Built-in rechargeable battery pack. The whole charge can be used for more than 24 hours.

Scope of application

★ Surface gloss measurement of paints, paints, coatings, inks, etc.

★ Building decoration materials: surface gloss measurement of marble, granite, vitrified polished tiles, ceramic tiles, etc.

★ Surface gloss measurement of plastics, paper, bamboo, etc.

★ Surface gloss measurement of various other non-metallic and metallic materials.

Structural diagram

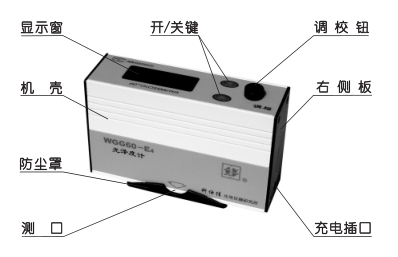

Structure diagram of KSJ WGG60-E4 gloss meter

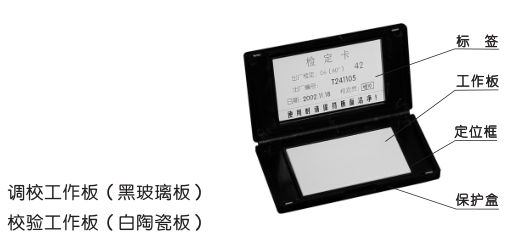

KSJ WGG60-E4 gloss meter adjustment board

Meets standards

KSJ WGG60-E4 gloss meter meets the requirements of the first and second level working machines in the metrological verification regulations of standard ISO2813, GB9754, ASTM D2457, ASTM D523, GB/T13891, GB7706, GB8807 and JJG696-2002 "Mirror Gloss Meter and Gloss Plate". WGG60-E4Gloss meterThe gloss value can be traced back to the Shanghai Institute of Metrology and Testing Technology (SIMT) international benchmark for gloss.

Presentation diagram

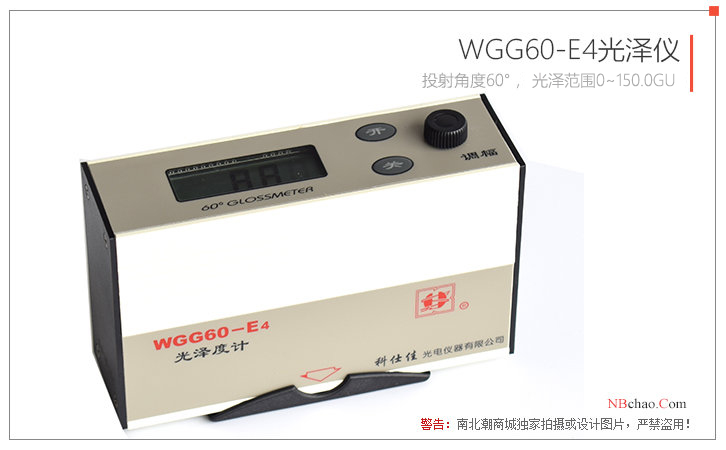

KSJ WGG60-E4 gloss meter display diagram

FAQ
QKSJ glossmeter measurement port cleaning with what?
A You can wipe it with lens paper or eye cloth dipped in absoluteethanol.
