KSJ MG6-F1 Coating glossiness instrument, dedicated to the thin film industry, self-calibrating with Bluetooth

SE
60 °, measuring range 0~199.9GU, Gloss measurement on the surface of paint, baking paint, Coating, Printing ink and other coating materials; Gloss measurement on the surface of Building Decoration Materials such as Stone, Tile, Profile, etc
Model：
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

KSJ MG6-F1 Gloss meterSPEC

KSJ MG6-F1 Gloss meterDetails

KSJ MG6-F1 Gloss meterPacking list

SKU
NB016927
Geometry
60°
Measurement range
0~199.9GU
Measuring Areas
10*20mm
Error of indication
±1.2GU
Division Value
0.1GU
Standards
ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
Dimensions
123*38*65mm
Weight
300g
Power
1.2~ 1.5 AA (No. 5) rechargeable or alkalinity battery
Measurement port size
14*30mm
Reading range
0~199.9GU
Zero Error
0.2GU
Stability
0.4GU
Operating Time
Depending on the type of battery, the continuous use time of the alkalinity battery is > 58h
MG6-F1
Gloss meter
60 °, measuring range 0~199.9GU, Gloss measurement on the surface of paint, baking paint, Coating, Printing ink and other coating materials; Gloss measurement on the surface of Building Decoration Materials such as Stone, Tile, Profile, etc
KSJ MG6-F1 Coating glossiness instrument, dedicated to the thin film industry, self-calibrating with Bluetooth Picture

product description

★Single AA size (AA) alkaline batteries or rechargeable batteries are equally easy to use.

★Low energy consumption: A single AA alkaline battery can last for more than 58 hours.

★The whole set of equipment is designed in one piece, it can be used immediately when it is turned on, and it is easy to carry.

★Specially equipped with a protective cover for the adjustment button, the operation is more assured.

★Anti-scratch coating on the test port to prevent scratching the measured object.

★Small size, beautiful appearance, stable performance, easy to use!

structure diagram

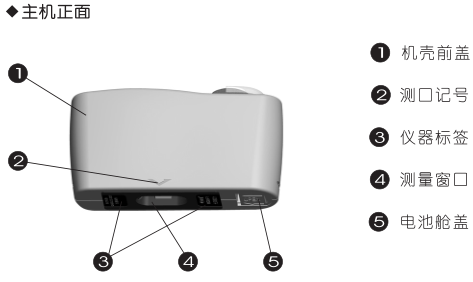

KSJ MG6-F1 paint gloss meter front structure diagram

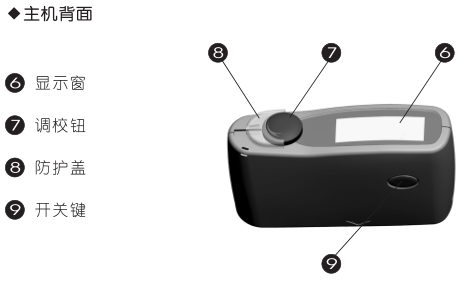

Back structure diagram of KSJ MG6-F1 paint gloss meter

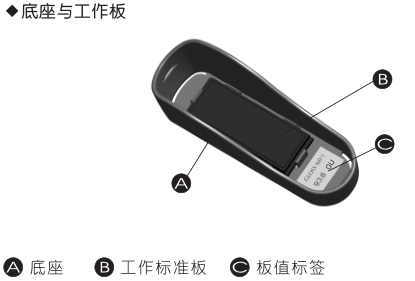

KSJ MG6-F1 Coating Gloss Meter Base Detail

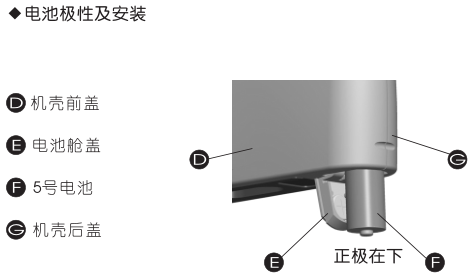

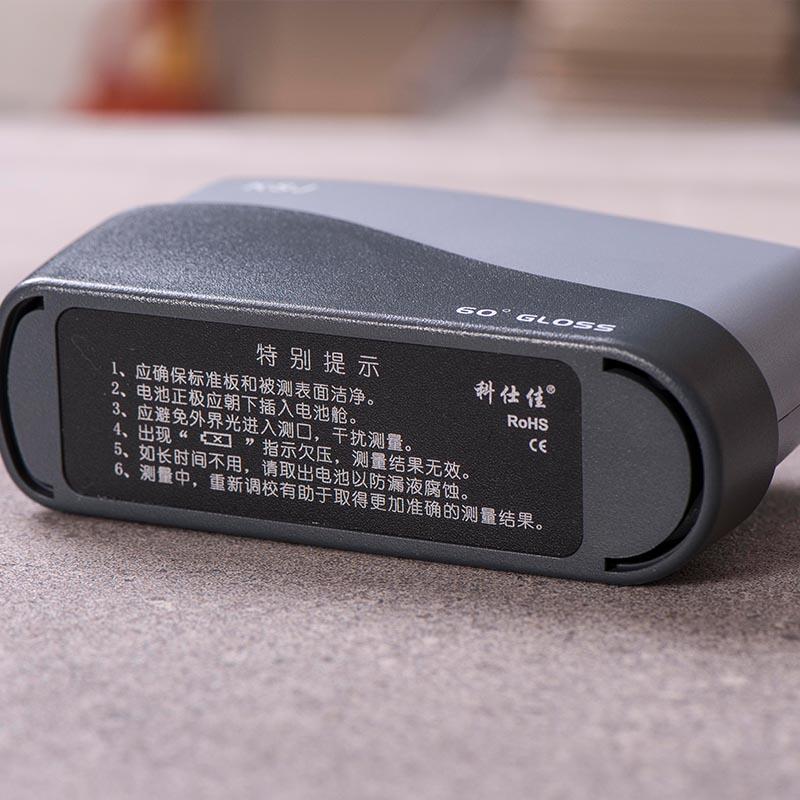

KSJ MG6-F1 Coating Gloss Meter Battery Details

Application

★Gloss measurement on the surface of paint, baking varnish, paint, ink and other coated materials.

★Gloss measurement on the surface of building decoration materials such as stone, ceramic tile and profile.

★Gloss measurement of paper, bamboo wood, plastic, film and other surfaces.

★Gloss measurement on the surface of other materials.

Standards

MG6-F1 gloss meter conforms to the requirements of the primary and secondary working machines in the measurement verification regulations of ISO2813, GB9754, ASTM D2457, ASTM D523, GB/T13891, GB7706, GB8807, JJG696-2002 "Mirror Gloss Meter and Gloss Board" . Gloss data can be traced back to the National Gloss Measurement Benchmark of the Shanghai Institute of Metrology and Testing Technology (SIMT).

plan

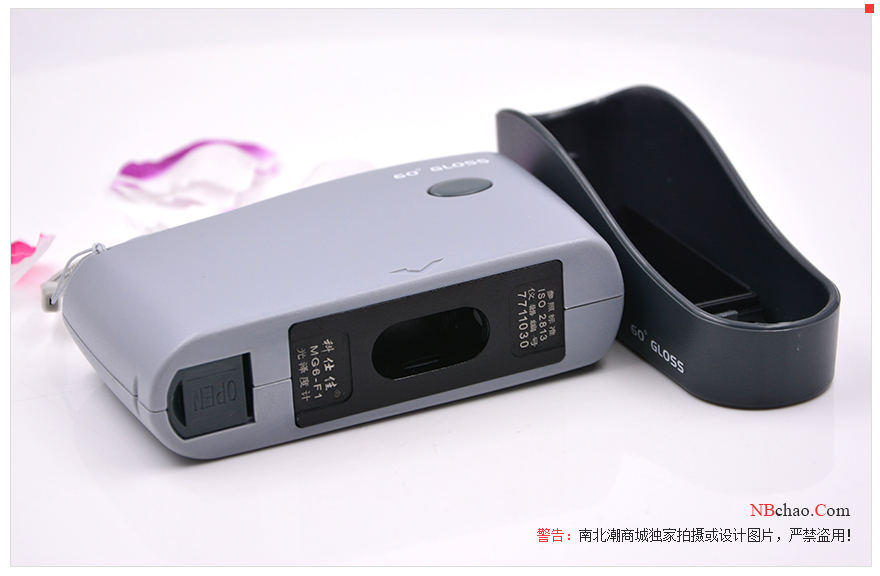

Details of KSJ MG6-F1 Paint Gloss Meter

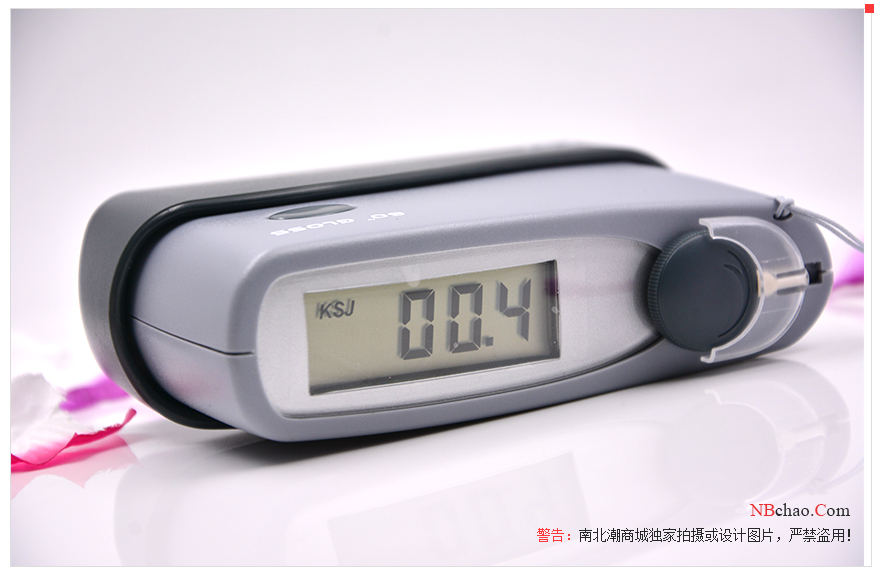

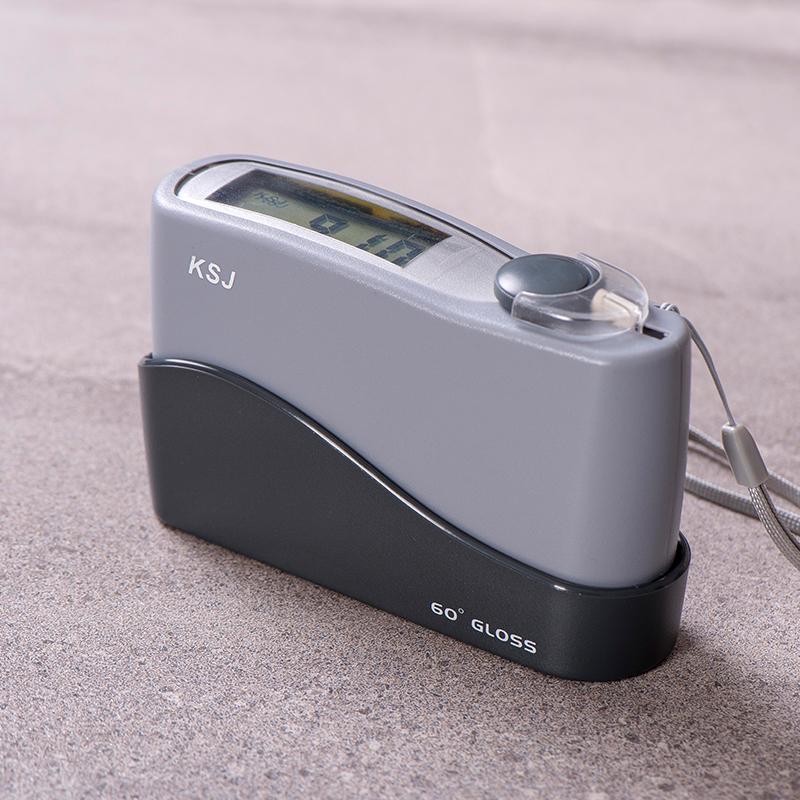

KSJ MG6-F1 Coating Gloss Meter Front View

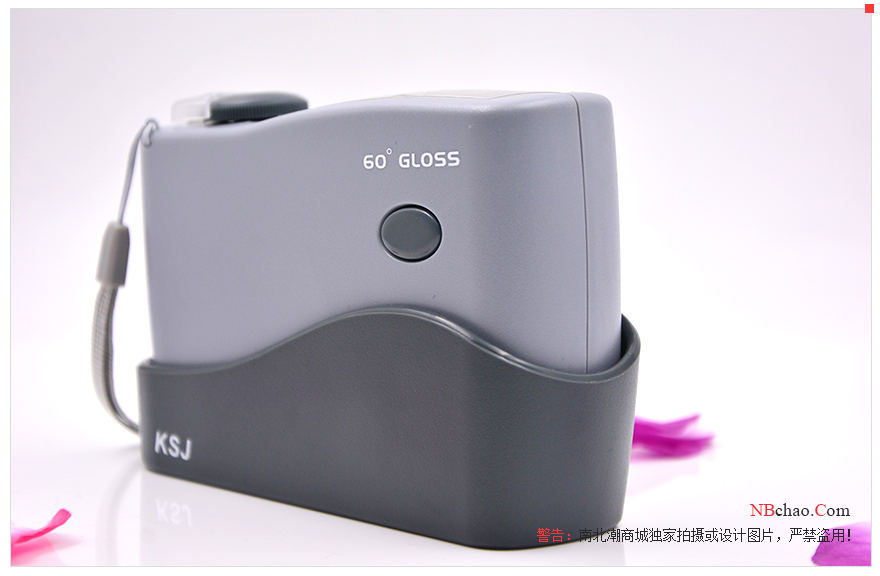

KSJ MG6-F1 Coating Gloss Meter Side View

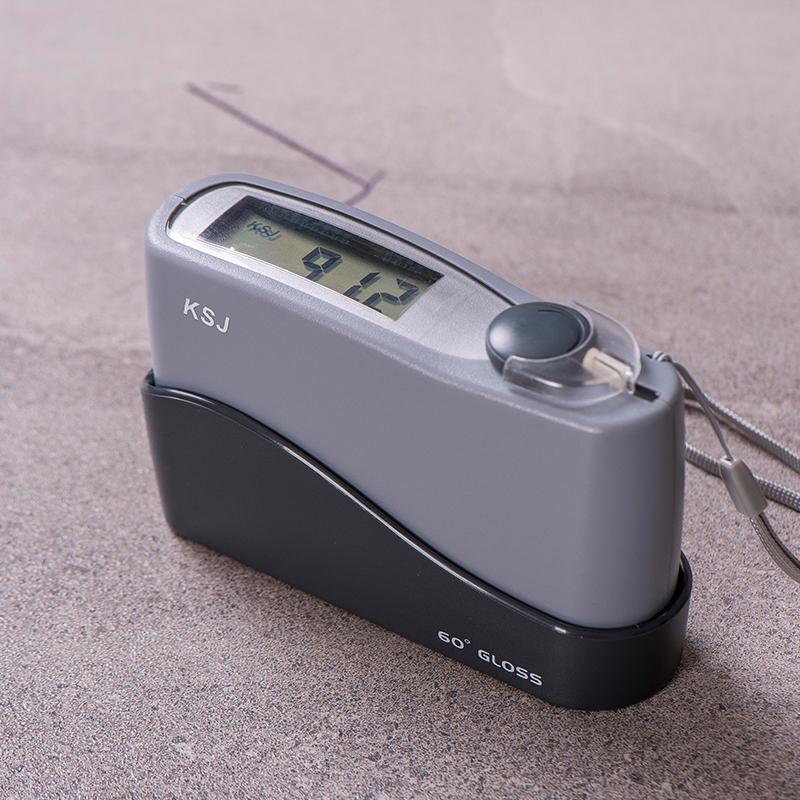

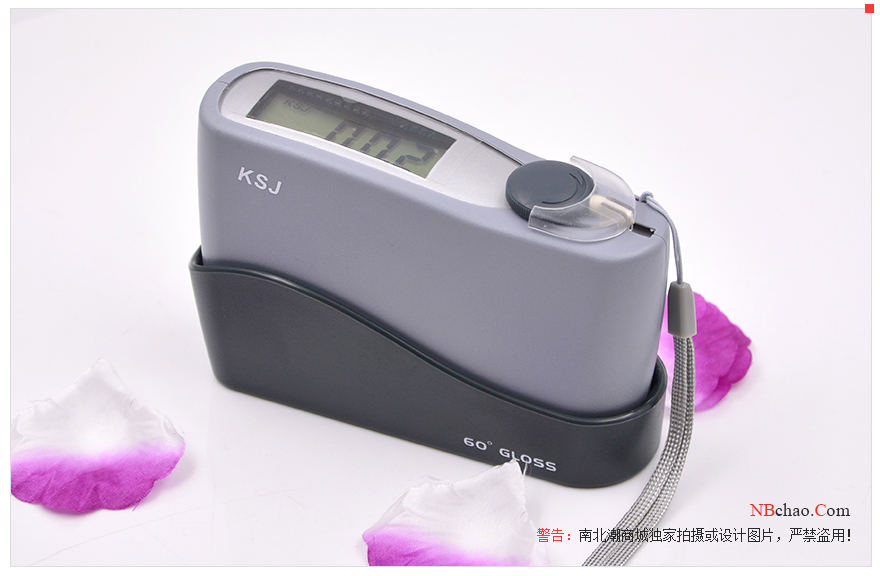

Appearance of KSJ MG6-F1 Paint Gloss Meter

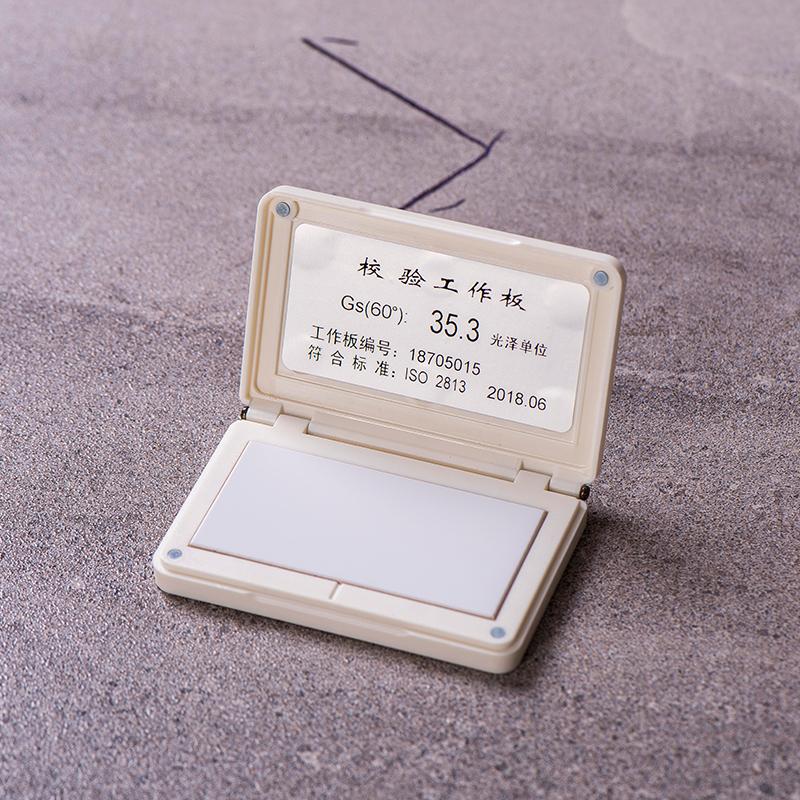

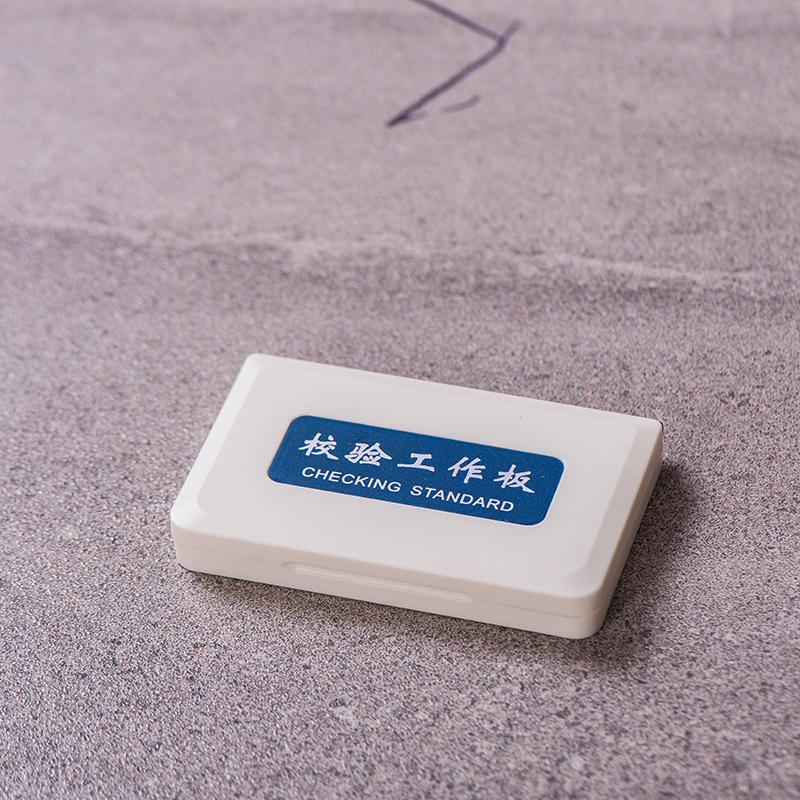

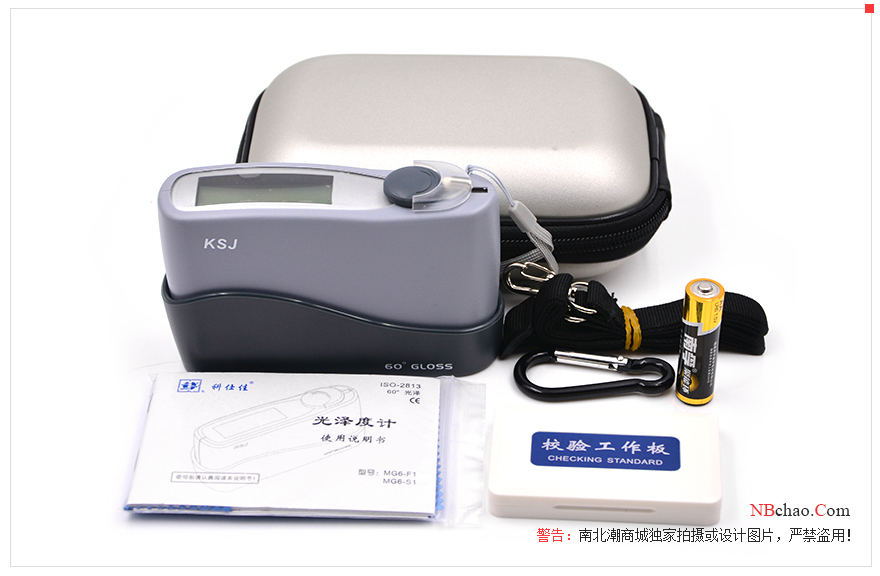

KSJ MG6-F1 paint gloss meter accessories diagram

FAQ
QDoes this have Bluetooth to read data?
A You can send the measurement data online to the computer, but if you want the data to be transmitted in real time, you need to choose a Bluetooth adapter.
QThis one is made of film, and it can also be tested whether it is translucent or not. We mainly use composite boards
A Yes, if the film is tested, a black flannel should be placed under the film. If it is transparent or translucent or matte, it should be placed under the film.
QGloss test on the surface of building decoration materials, can this be tested?
A It can be tested, general-purpose model.
QWhat is the difference between the MG6-F1 and MG6-F2 glossmeters?
A The MG6-F2 not only measures Gloss, but also haze and reflectance.
QDoes the glossmeter need to be calibrated frequently?
A Generally, it is recommended to re-calibrate after a period of use or a long boot time to ensure the accuracy of the next measurement.
QThis is for batteries, not charging?
A Yes!
QDoes KSJ's MG6-F1 Coating glossmeter need to be calibrated every time it is turned on?
A Hello, it needs to be calibrated after each boot.
QCan this one measure the gloss of the white film?
A OK
QWill the strong light environment affect the measurement of glossmeters? How to solve?
A Strong light environment will affect the measurement of glossmeter, it is recommended to avoid strong light environment measurement, if you want to avoid external light leakage, you can use black flannel around the measuring port to block the rays of light.
QWhat is the difference between WGG60 series and MG series Glossiness?
A WGG60 series host power supply is built-in rechargeable lithium battery. MG series host power supply is an AA (No. 5) rechargeable or alkaline battery. If the use Frequency is high, use WGG60 series. On the contrary, if the use Frequency is low, use MG series, but please take out the battery after use to protect the instrument host.
