MODERNER QFH 2mm (10 slots) Cross Hatch Cutter 11 Blades 2mm Pitch

QFH 2mm (10 slots)

Cross Hatch Cutter

11 teeth, knife tooth spacing 2mm, instrument material wood, application standard ISO 2409, suitable for film thickness environment 60~100μm, the number of blades 3.

Introduction

MODERNER QFH 1mm (10 grooves) paint film scratcher is designed and manufactured according to the ISO2409 standard. The paint film cross-cut device is mainly suitable for the determination of the cross-cut adhesion of organic coatings, not only for laboratories, but also for construction sites under various conditions.

Principle

The paint film cross-cutting device cuts and penetrates the coating according to the lattice pattern, and the completed cross-cut pattern is classified into six grades to evaluate the resistance of the coating to separation from the substrate.

Application

QFH paint film scratcher has multi-blade cutting knives (1mm, 2mm, 3mm) with three specifications of spacing, which can be selected according to different test conditions. The multi-blade cutting knife with 1mm spacing is suitable for test pieces with coating film thickness <60μm, the cutting knife with 2mm spacing is suitable for test pieces with coating film thickness 60-100μm, and the cutting knife with 3mm spacing is suitable for coating film thickness 60-150μm test piece. The test piece should be made of glass, tinplate, aluminum, etc. as the substrate.

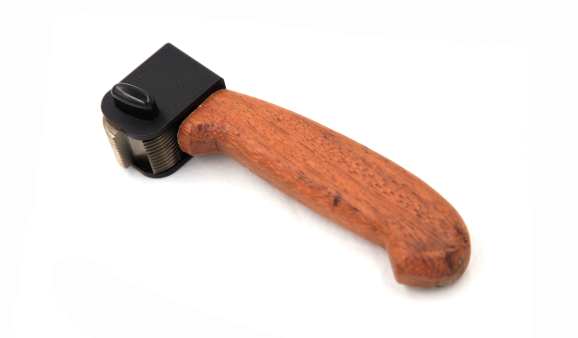

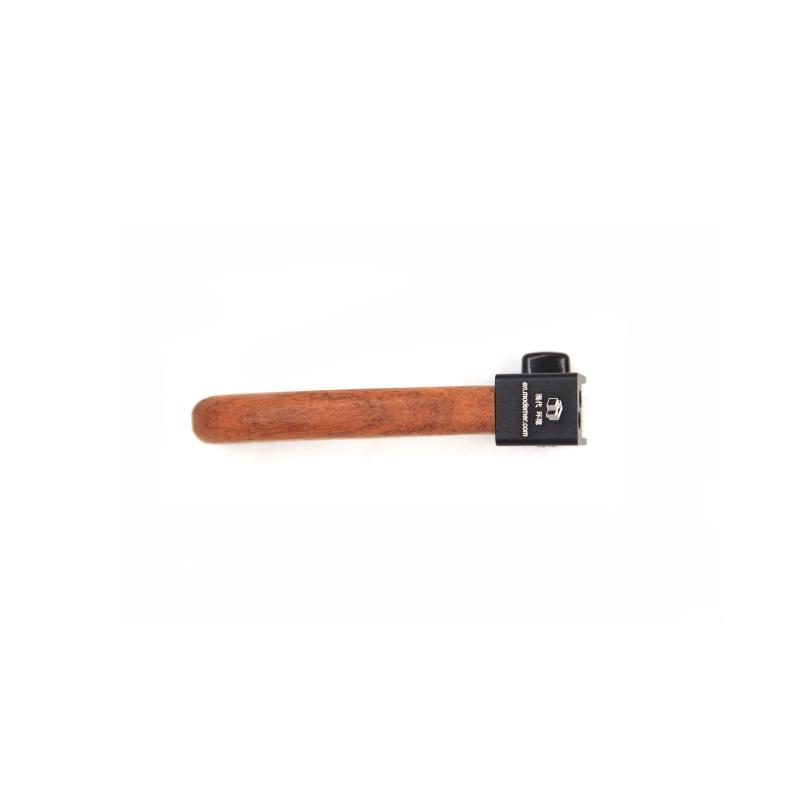

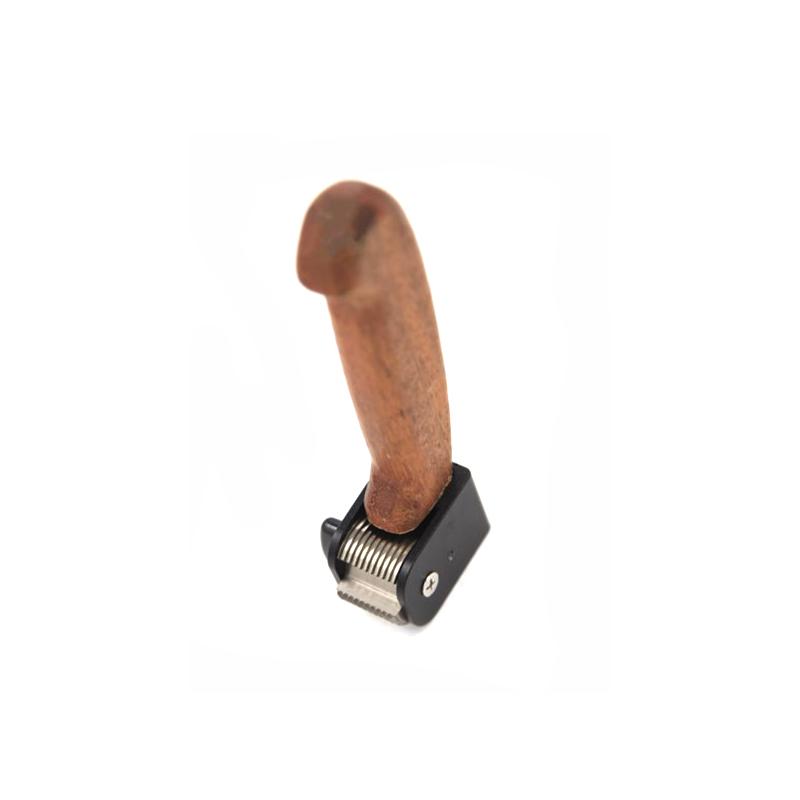

real shot

Packing list：Cross Hatch Cutter X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
