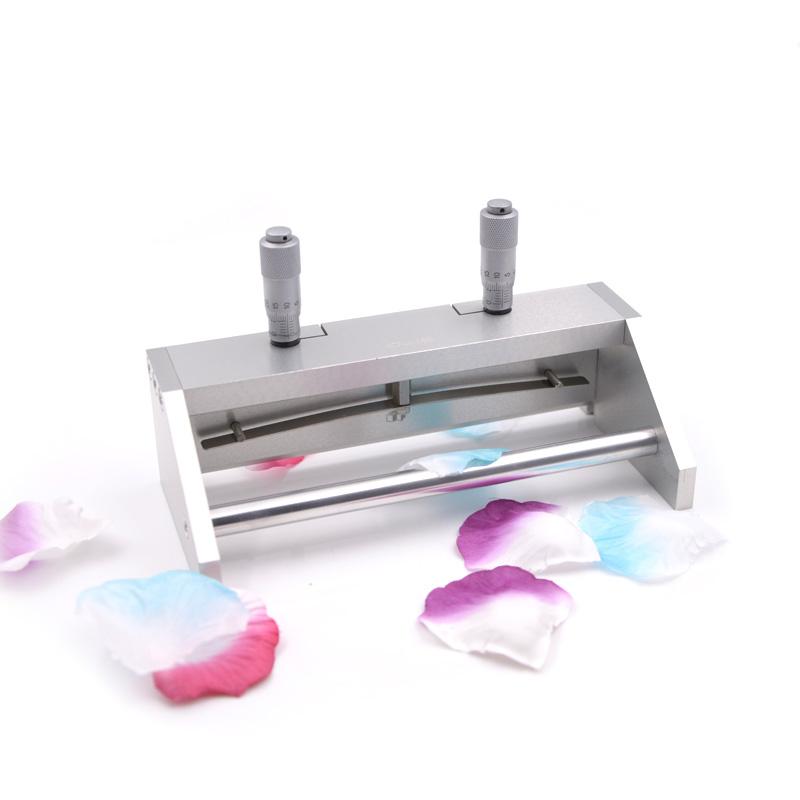

MODERNER KTQ-200 adjustable Coating Applicator 0~5mm/20cm

MODERNER KTQ-200 adjustable Coating Applicator is KTQ series, the application width of 200mm adjustable Film Applicator, KTQ-200 adjustable Coating Applicator to control the thickness of the film by adjusting the differential, the thickness range of 0~5000 microns.

Model：

KTQ-200

Certificate

Moderner

Manufacturer authorization

Contact

Details SPEC VIDEO

Moderner KTQ-200 Micrometer Film ApplicatorSPEC

Moderner KTQ-200 Micrometer Film ApplicatorDetails

Moderner KTQ-200 Micrometer Film ApplicatorPacking list

SKU: NB016939

KTQ-200

Micrometer Film Applicator

Introduction

MODERNER KTQ-II adjustable Film Applicator is a Film Applicator that can adjust the thickness of the coating film. There are two differentiators above the adjustable Film Applicator. By adjusting the two differentiators of the Film Applicator, the up and down direction can be adjusted. Adjust the lower scraper to control the gap, which is the thickness of the final coating. The scraper gap is in units of 10 microns, and the coating range is from 0 to 3500 and 0 to 5000. Different adjustable Film Applicators have different dimensions and weights.

Product actual pictures

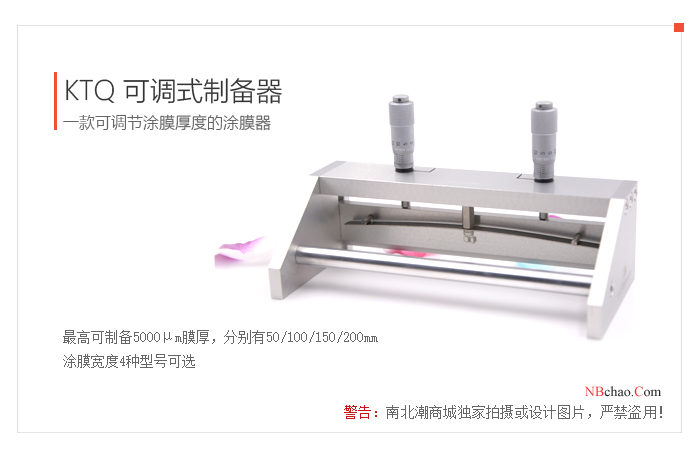

MODERNER KTQ-200 adjustable applicator display picture 1

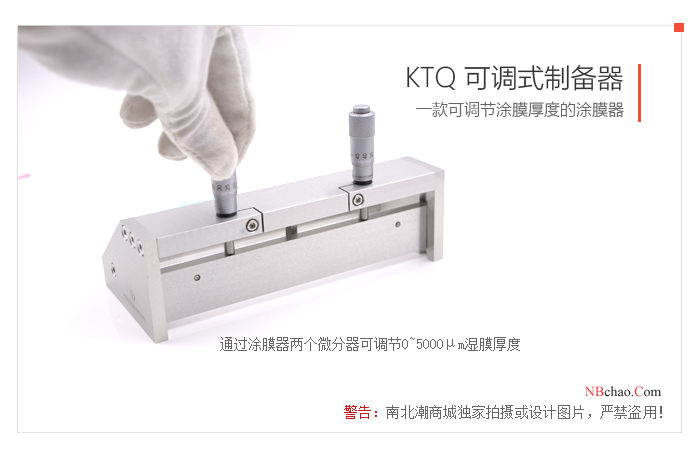

MODERNER KTQ-200 adjustable applicator display picture 2

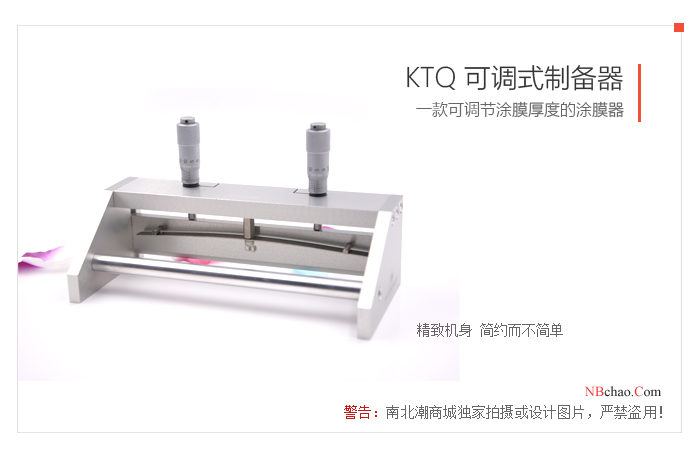

MODERNER KTQ-200 adjustable applicator front view

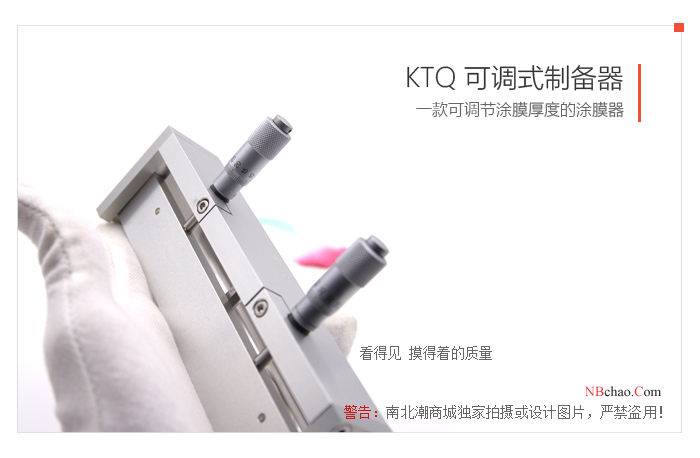

Detail of KTQ-200 adjustable applicator for MODERNER

How to operate

1) Before using the adjustable applicator, check whether it is adjusted to the "0" position. If it is not at the "0" position, adjust the adjustable applicator to "0" on a parallel plate. When adjusting to "0", rotate The upper two differentiators make the bottom end of the scraper and the bottom surfaces of both sides of the plate on the same plane. At this time, the counts of the two differentiators should be the same, and the "0" scale on the upper end of the differentiator is aligned with the scale line on the lower end.

2) Rotate the differentiator and adjust the scraper to the required gap, that is, the required coating thickness. Then hold both sides of the plate with your hands and scrape the sample plate to prepare the required coating.

3 ) After using the applicator, clean and dry the applicator with appropriate solvent.

4) Adjust the scraper so that the spring is in a relaxed state to reduce spring fatigue. Place the adjustable Film Applicator in a wooden box to protect it from moisture.

MODERNER KTQ series adjustable applicator

model	KTQ-50	KTQ-100	KTQ-150	KTQ-200
Coating film width (mm)	50	100	150	200
Film thickness range (microns)	0~5000
Accuracy (microns)	10	10	10	10
Overall dimensions (mm)	78x112x100	114x76x100	164x76x100	214x76x100
Weight(g)	358	400	450	500
