UK Elcometer 2020/2 fineness grindometer fineness range 0-25μm
Elcometer 2020/2 fineness grindometer is the UK imported stainless steel Fineness of Grind Gauge, suitable for aluminum powder, graphite, Resin, nano, activated carbon, glaze paste, printing colorants and other fineness detection, Elcometer 2020/2 range of 0~25 microns.
Model：
Elcometer 2020/2
Elcometer
Elcometer Elcometer 2020/2 fineness grindometerSPEC
Elcometer Elcometer 2020/2 fineness grindometerDetails
Elcometer Elcometer 2020/2 fineness grindometerPacking list
- SKU
- NB001694
- Scraper type
- double-channel
- Number of grooves
- 2
- range
- 0~100μm
- Scale unit
- µm、Hegman、Mils、PCU
- Accuracy
- ±2µm
- scraper material
- stainless steel
- Scraper size
- 180*40*12mm
- Groove size
- 12*127mm
- Drawdown blade material
- stainless steel
- Net Weight
- 1.36kg
Elcometer 2020/2
fineness grindometer

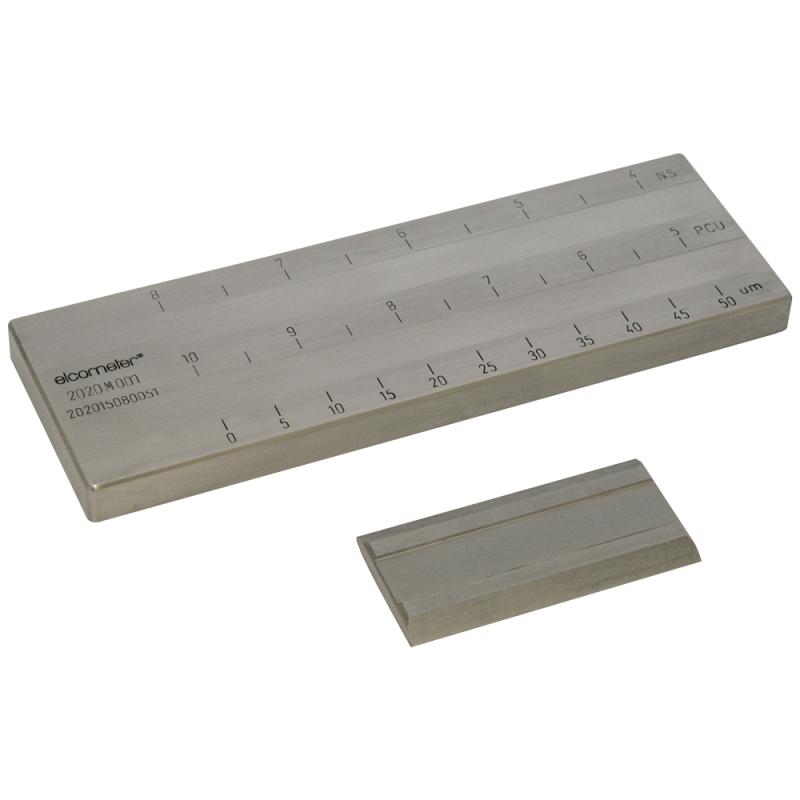

Elcometer Fineness of Grind Gauges are used to determine the particle size and fineness of a wide range of materials such as paints, pigments, inks, coatings, chocolates or other similar products.
Double-grooved grinding fineness plates, all made of hardened stainless steel, with grooves of a certain slope (depending on the model selected).
The scale units are microns, mils, NS (Hegman) or PCU (North), and the error of the fineness plate is ±2μm (0.08mil). All models have a groove width of 12mm (0.47") and a groove length of 127mm (5.0").

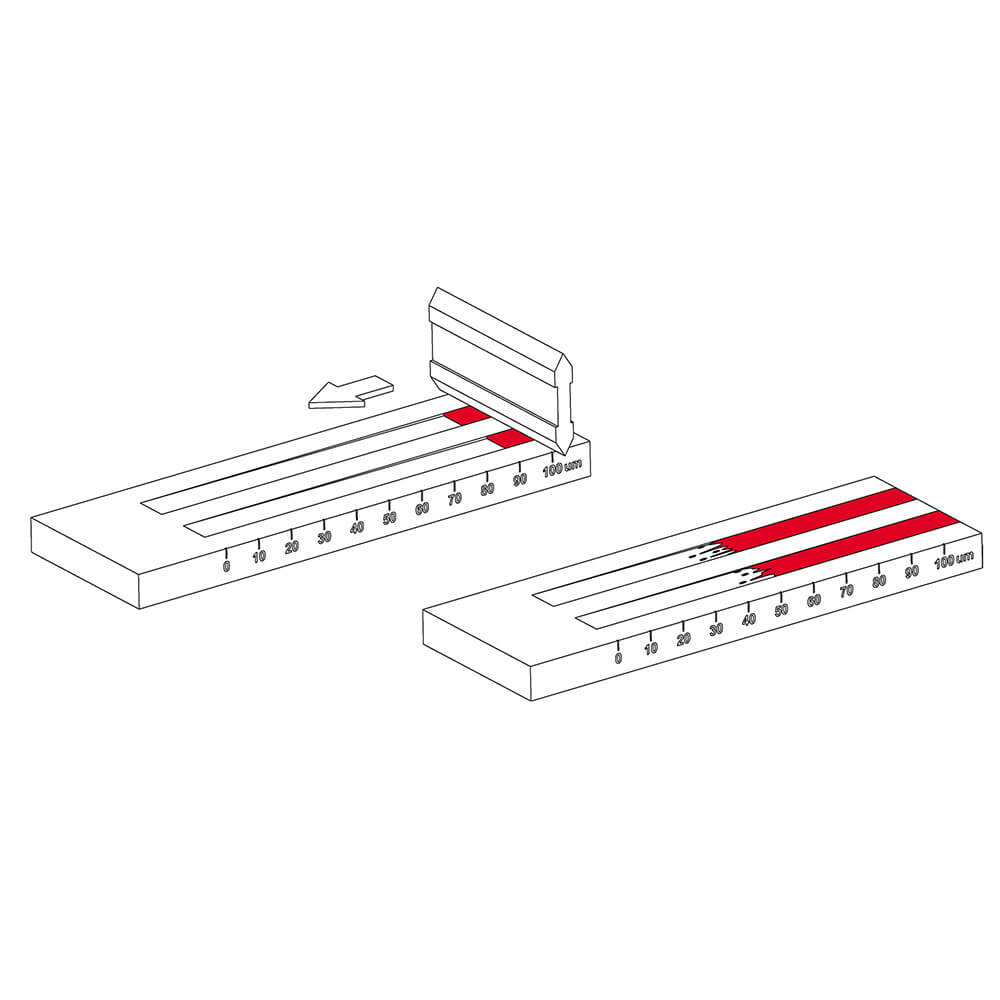

How to use the grinding fineness gauge plate
| The measured material is placed in the deepest position in the trough and scraped in the direction of the uphill slope with the supplied scraper, and the particle size is displayed corresponding to the place where the material stops extending. |
Technical parameters
| Part number | Model | range | Hegman (NS) | North (PCU) | scale | certificate | |||
| metric system | Inch | µm | mils | µm | mils | ||||
| K0002041M001 | - | Elcometer 2041/1 | 0-15 | - | - | - | 1 | - | ο |
| K0002041M002 | K0US2041M002 | Elcometer 2041/2 | 0-25 | 0-1 | - | - | 2.5 | 0.1 | ο |
| K0002041M003 | K0US2041M003 | Elcometer 2041/3 | 0-50 | 0-2 | - | - | 5 | 0.2 | ο |
| K0002041M004 | K0US2041M004 | Elcometer 2041/4 | 0-100 | 0-4 | - | - | 10 | 0.5 | ο |
| K0002020M003 | - | Elcometer 2020/3 | 0-15 | - | 8-7 | 10-9 | 1.5 | - | ο |
| K0002020M004 | K0US2020M004 | Elcometer 2020/4 | 0-25 | 0-1 | 8-6 | 10-8 | 2.5 | 0.1 | ο |
| K0002020M001 | K0US2020M001 | Elcometer 2020/1 | 0-50 | 0-2 | 8-4 | 10-5 | 5 | 0.2 | ο |
| K0002020M002 | K0US2020M002 | Elcometer 2020/2 | 0-100 | 0-4 | 8-0 | 10-0 | 10 | 0.5 | ο |
| size | 180 x 40 x 12mm (7.1 x 1.6 x 0.5”) | ||||||||
| weight | 1.36kg (3lb) | ||||||||
| Packing list | Elcometer 2020 or Elcometer 2041 fineness of grind gauges, scrapers, plastic sleeves and operating manuals | ||||||||
FAQ
QIs this fineness grindometer JB/T9385 compliant?
A
This fineness grindometer is suitable for JB/T9385. Please consult customer service for detailed application definition.
QElcometer2020 Fineness scraper accuracy by how high?
A
The accuracy of the Elcometer 2020 scraper reaches ± 2μm.
