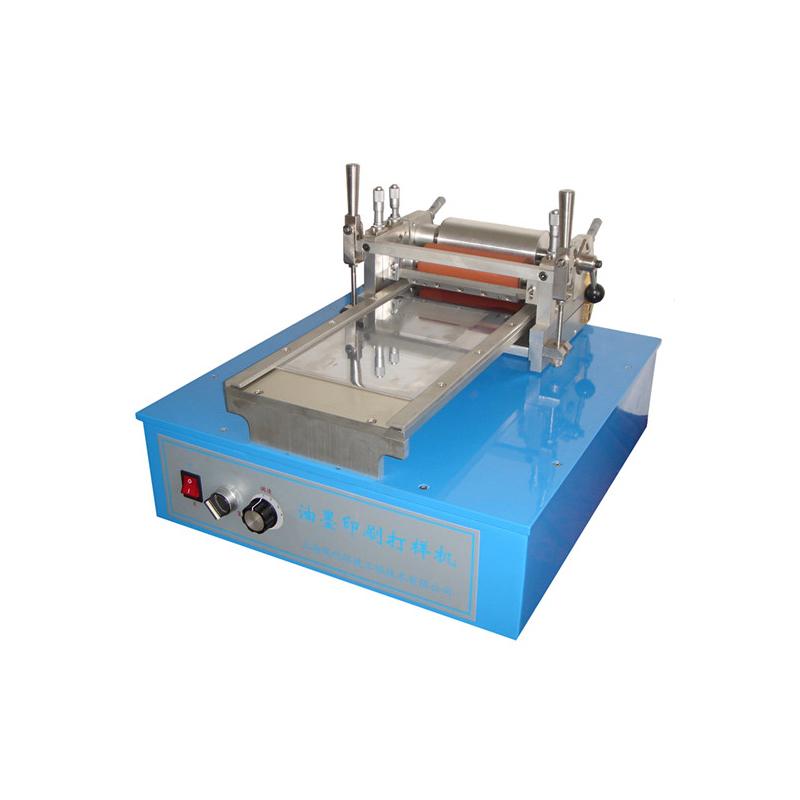

MODERNER RYDJ inks printing proofer, flexographic proofer 95 × 149mm

Flexographic ink printing machine

Introduction

MODERNER RYDJ flexo ink printing proofing machine, also known as ink printing test machine, is suitable for quickly preparing flexo ink or water-based liquid ink printing proofs in the laboratory, which facilitates the testing of ink printing adaptability and the research and development of ink products. RYDJ flexo ink printing proofing machine uses plane engraving and gravure transfer printing.

Applications

RYDJ flexo ink printing proofing machine is suitable for proofing on flexible substrates such as paper, cardboard, and film.

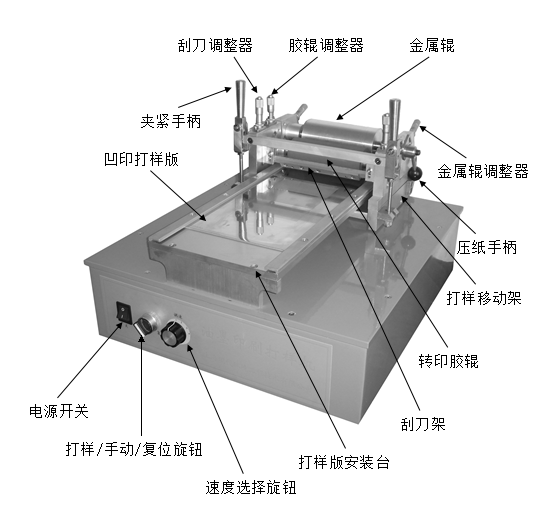

Functional structure diagram

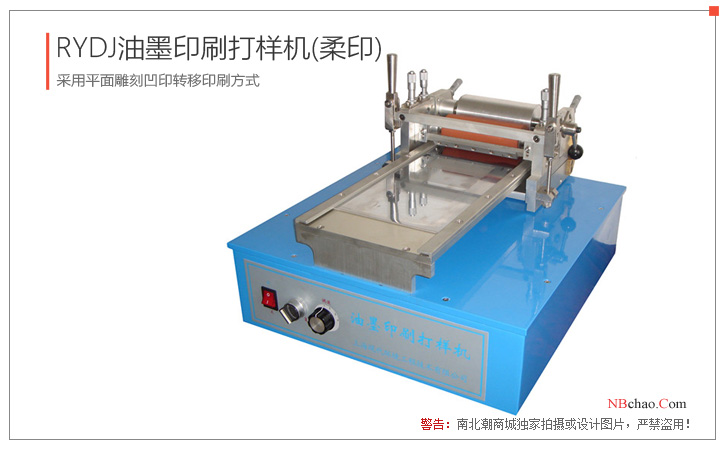

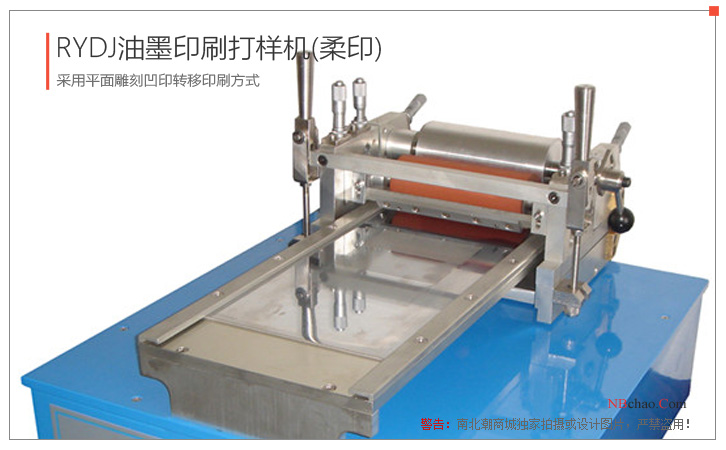

Product actual pictures

Precautions for use

1) When using it for the first time, remove the protective paper (if any) on the proofing plate of the RYDJ flexo ink printing proofing machine .

2) When moving the proofing mobile frame forward without load, be careful not to select the "45" gear (45 meters/second) proofing speed.

3) Lubricate the sliding guide rail at the bottom of the proofing plate installation table in a timely manner.

4) After each proofing is completed, the residual ink on the proofing plate and the rubber roller must be cleaned immediately and effectively to avoid "paste".

5) Before proofing, make sure there is no residue on the rubber roller and the concave part.

6) The proofing plate, drawdown blade, rubber roller and metal roller of the RYDJ flexo ink printing proofing machine play a very important role in the proofing effect. Do not bump or scratch them during use, and clean them in time after use.

7) If you want to manually move the proofing mobile frame during use, please center the "Proofing/Manual/Reset" knob. If you select the "Proofing" file, the proofing mobile frame will move forward quickly at the selected speed. If you select the "Reset" position, the proofing mobile frame will move backwards at the preset speed.

Note: The retraction speed of the RYDJ flexo ink printing proofing machine is preset before leaving the factory and usually does not need to be adjusted (it can be adjusted through the small opening at the bottom of the machine).

Packing list：host X1, proofing version X1, scraper X2, power cord X1, manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
