MODERNER DM-ⅲ Abradability Tester primer, putty anti-sanding test

MODERNER DM-ⅲ Abradability Tester conforms to GB/T 1770 standard, used for primer, putty anti-sanding performance, DM-ⅲ Abradability Tester adopts magnetic suction cup, which is convenient for loading and unloading samples, and the working stroke is 130mm.
Model：
Certificate
Contact
Details SPEC OI

Moderner DM-Ⅲ Abradability TesterSPEC

Moderner DM-Ⅲ Abradability TesterDetails

Moderner DM-Ⅲ Abradability TesterPacking list

SKU
NB016945
Friction method
Reciprocating
Frictional contact form
noodle
Number of grinding heads
1
friction load
570±15g
Rotation speed
0~135rpm
Test Travel
130mm
Power
220V 50Hz
Dimensions
300*280*380mm
Machine Weight
About 25kg
Set number range
0~9999 (round-trip counting) Note: round-trip × 2 is one-way
Power
60W
sample specification
Tinplate 50 * 120 δ = 0.3~ 1.5mm
Additional Weight
50±3g、100±4g、200±7g
DM-Ⅲ
Abradability Tester

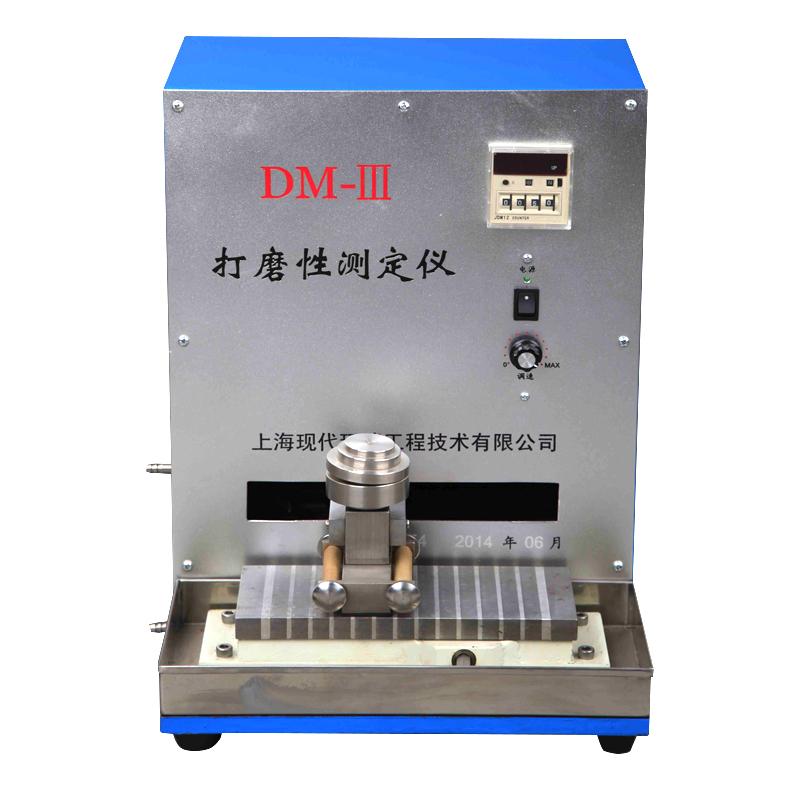

MODERNER DM-ⅲ Abradability Tester primer, putty anti-sanding test Picture

Introduction

 MODERNER DM-Ⅲ polishability Tester is a device used to evaluate the polishability of primers and putties. This device polishes the primer and putty samples to be measured back and forth. The number of polishing times can be directly read by the counter. According to the load weight, number of polishing times and degree of wear, the polishing resistance of the primer and putty can be evaluated. This instrument uses a magnetic suction cup to facilitate sample loading and unloading.

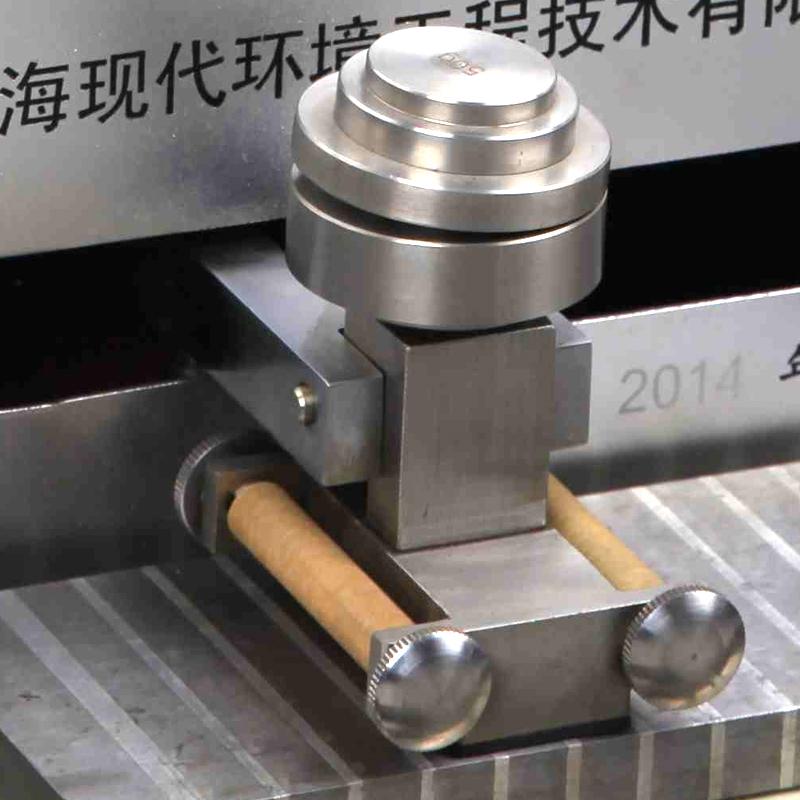

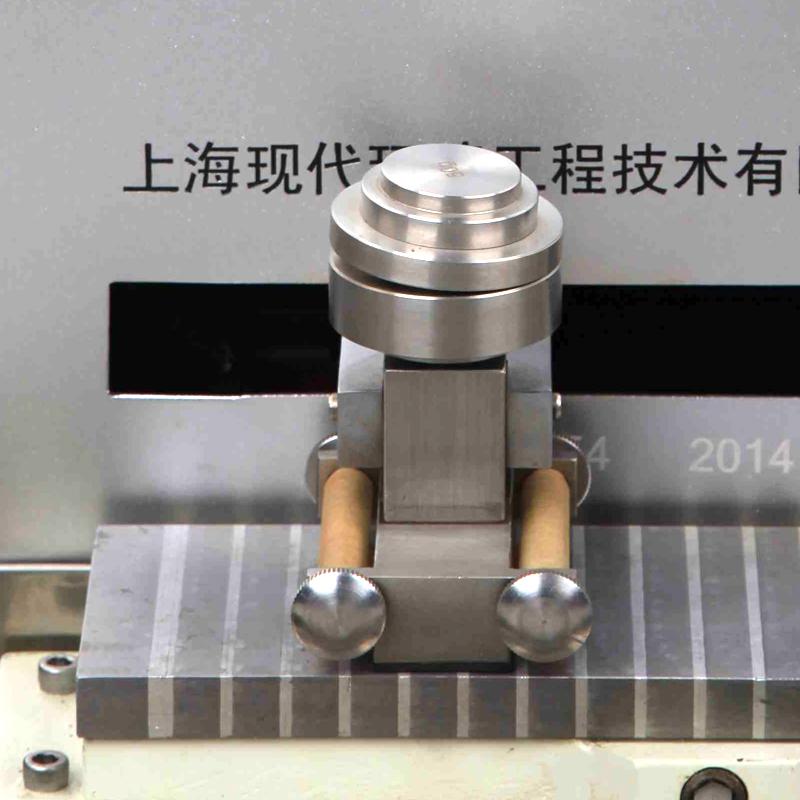

Product display picture

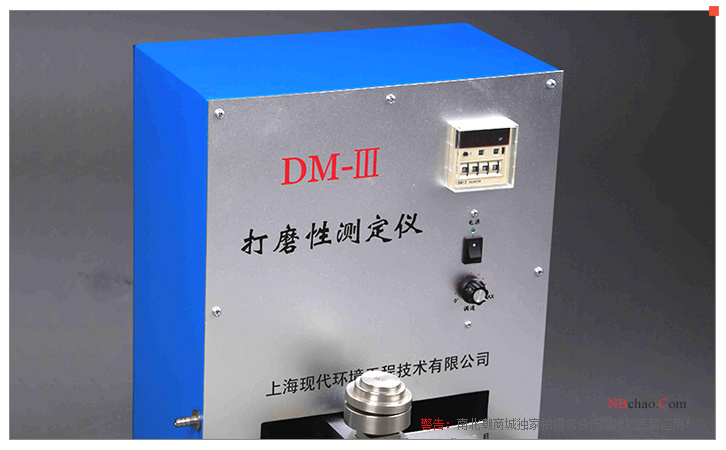

MODERNER DM-Ⅲ polishability Tester front detail view

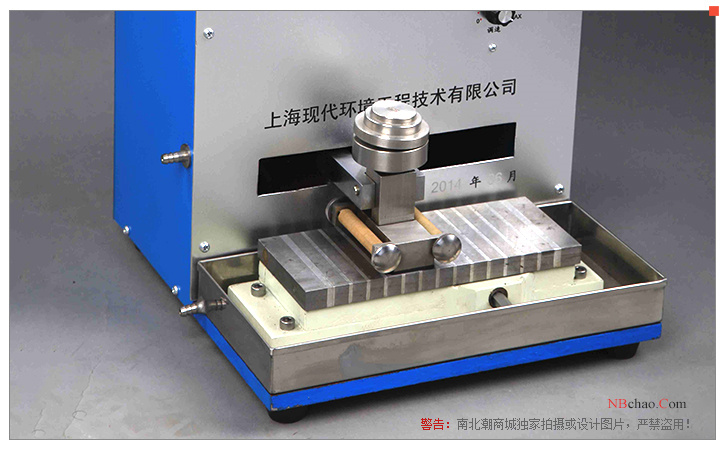

Detailed view of the bottom of the MODERNER DM-Ⅲ polishability Tester

FAQ
QCan it be used to test 2mm test tinplate?
A Hello, no. It can only reach 1.5mm.
QHelp me find an Abradability tester that meets the JB/T6886 standard
A This DM-ⅲ Abradability tester is fine!
