MODERNER LS Shakeout Wear testing machine Duct length 914mm

LS

Falling Sand Abrasion Tester

Organic coating abrasion resistance testing, catheter degree 914mm, catheter inner diameter 19mm; in line with ASTMD968, JG/T133 standards, simple operation.

Introduction

MODERNER LS falling sand wear Tester is used to test the wear resistance of organic coatings under standard conditions. The construction industry standard JG/T 133-2000 requires testing the wear resistance of aluminum profiles and aluminum plates with fluorocarbon coatings. LS falling sand wear testing machine is easy to operate.

Principle

LS Falling Sand Abrasion Tester is used to test the wear resistance of the coating by dropping the abrasive from a specified height onto the coated test plate through the conduit until the substrate of the test plate is exposed. The abrasion resistance of the coating on the test plate is represented by the amount of abrasion per unit film thickness.

structure diagram

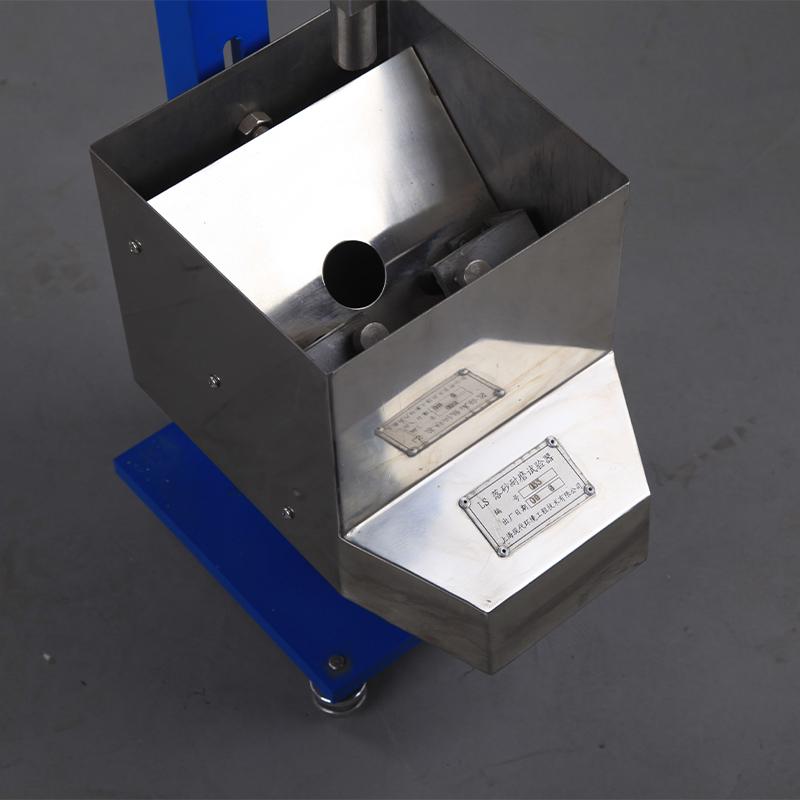

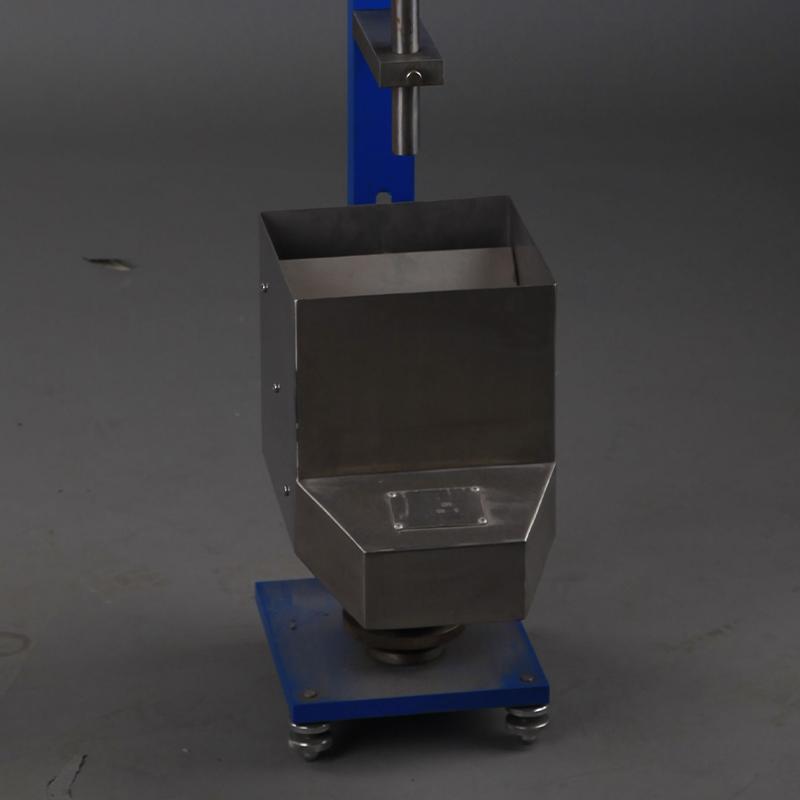

1. The LS falling sand wear-resistant testing machine is equipped with a switch to control the sand flow near the conduit. There is a sand box for placing the test plate at an angle of 45 degrees to the vertical position at the lower part of the conduit. There are clamps on both sides of the sand box to clamp the test plate. .

2. There is a height adjusting nut at the lower part of the wear-resistant testing machine, which is used to adjust the distance from the pipe to the painted surface.

3. There are adjustment screws at the bottom of the wear-resistant testing machine to properly adjust the center position of the sand flow.

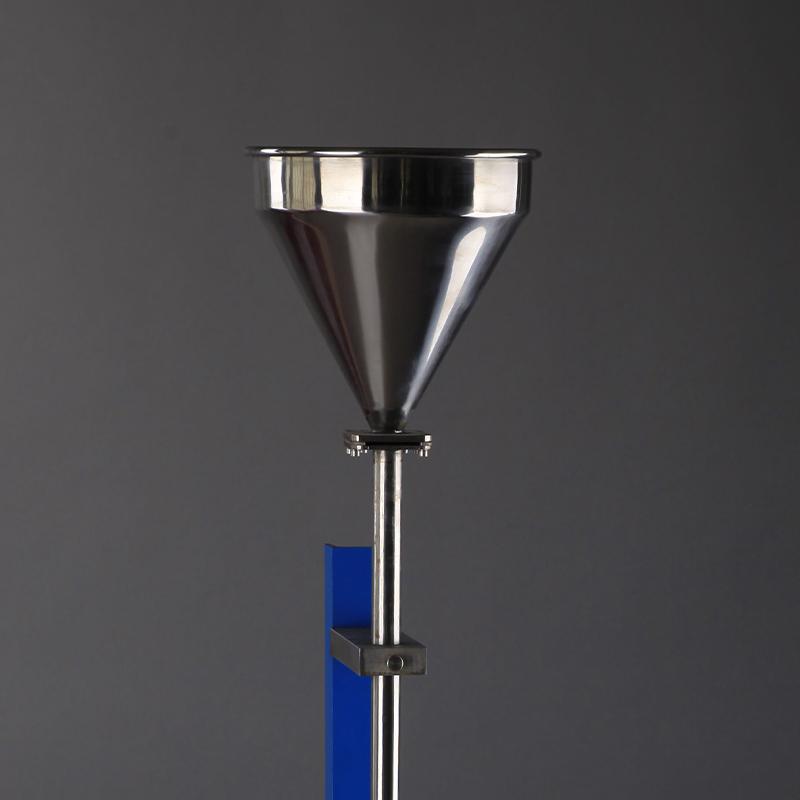

1——Funnel 2——Sand shakeout switch 3——Bracket 4——Conduit

5——Test plate fixture 6——Sand box 7——Height adjustment nut 8——Adjustment screw

Packing list：host X1, standard sand bag (purchased separately) X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
