Specifications
| Display | 128 * 64 Chinese LCD display, Chinese menu operation |
| Measurement range | 0.0~100μg/L; 100~1000μg /L; 1.00~20.00mg/L (automatic conversion range) |
| automatic range conversion | 0~60℃ |
| Temperature compensation range | 0~60℃ |
| Resolution | 0.1μg/L (0.0~100)μg/L；1.0μg/L (100 ~1000)μg/L；0.01mg/L (1.00~20.00)mg/L； |
| Accuracy | ≤1.5%FS |
| current output | 0~10mA, 0~20mA, 4~ 20mA optional, load < 300Ω |
| Alarm relay | 220V/3A |
| Power Supply | AC (85~ 265) V Frequency (45~ 65) Hz |
| Protection level | IP65 |
| Environmental temperature | 0~60℃ |
| Working Relative Humidity | ≤ 90RH (non-condensing) |
| Dimensions | 145*120*150mm |
| opening size | 138*138mm |
| Weight | 0.64kg |
Packing list

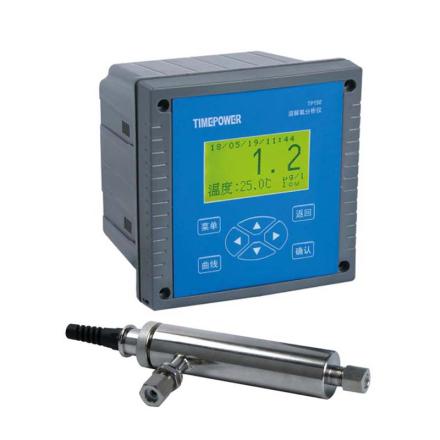

Host X1, dissolved oxygen composite electrode X1, flow cell X1, main board X1, online shell X1, fine steel wire X1, electrode extension wire X1, electrode film head X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/16968/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
