TIMEPOWER TP121 (k = 0.1) conductivity analyzer

Certificate
Contact
Details SPEC CAT

TIMEPOWER TP121（k=0.1） Conductivity analyzerSPEC

TIMEPOWER TP121（k=0.1） Conductivity analyzerDetails

TIMEPOWER TP121（k=0.1） Conductivity analyzerPacking list

SKU
NB016991
Measurement range
0.1~200.0μS/cm
Measurement error
±2.5% F.S
Resolution
0.01μS/cm
Temperature compensation range
0~60℃
Dimensions
98*130*98mm
Weight
0.5kg
Display
1128X64 dot matrix LCD, Chinese and English display can be switched
Repeatability
≤1%
Temperature sensor
Pt1000
Water sample temperature
5~60℃
water sample pressure
<0.6 Mpa
Operating temperature
5~45℃
Operating humidity
≤ 90% RH (non-condensing)
Storage temperature
-25~55℃
Protection level
IP65
Power down save
> 10 years
Current Output
0~10mA, 0~20mA, 4~ 20mA optional, load < 300Ω
Alarm relay
2 normally open points can be set arbitrarily, AC 220V 3A/DC 30V 3A
output load Capacity
≤750Ω
Output Accuracy
1%F.S
Relay load Capacity
AC 250V 5A/DC 30V 5A
Power Supply
AC (85~ 265) V Frequency (45~ 65) Hz
Power
≤ 15W
opening size
94mm×94mm
TP121（k=0.1）
Conductivity analyzer

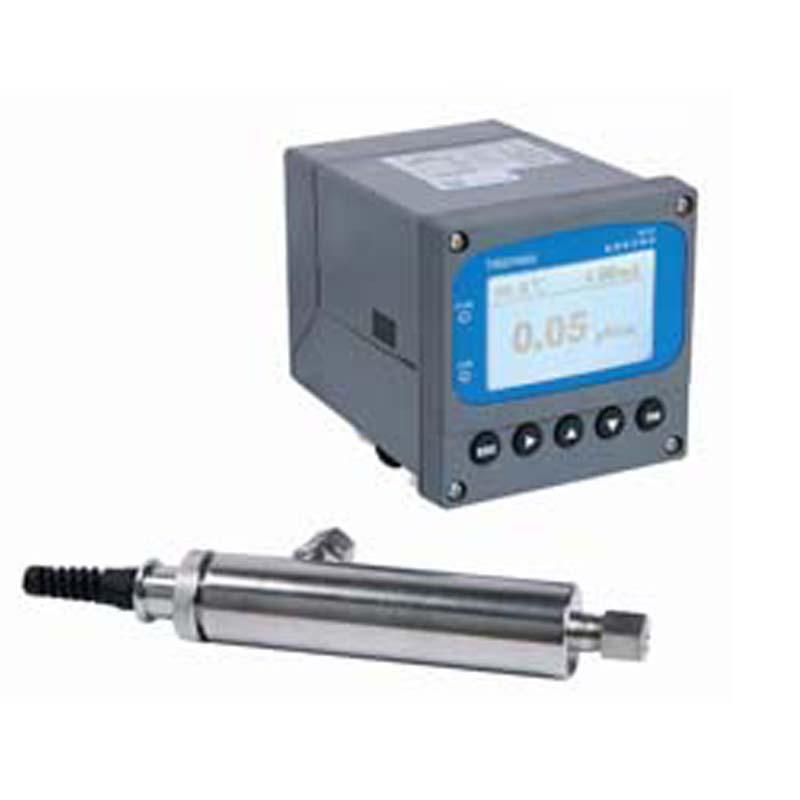

TIMEPOWER TP121 (k = 0.1) conductivity analyzer Picture

Introduction

TP121 conductivity analyzer has the characteristics of Chinese and English menu-based operation, full intelligence, multi-function, high measurement performance, strong environmental adaptability, etc., which can be used for continuous monitoring of conductivity values in solutions in various industries.

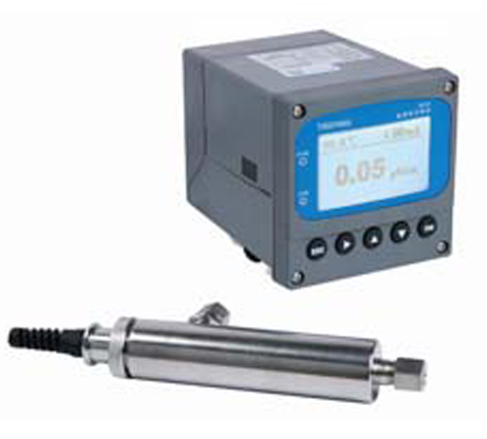

Times Xinwei TP121(k=0.1) conductivity analyzer

Features

  • The instrument adopts high-precision A/D conversion and microprocessor microprocessor technology, which can realize various functions such as conductivity measurement, temperature measurement, automatic temperature compensation, and automatic range conversion.

  • The components are integrated into a single circuit board, eliminating the need for complex function switches, adjustment knobs and potentiometers.

  • The current output adopts photoelectric coupling isolation technology, which has strong anti-interference ability and can realize remote transmission. It has good electromagnetic compatibility.

  • The standard output signal type is optional, and the alarm relay can be set arbitrarily.

  • The display in Chinese and English can be switched, which is easy to understand and easy to operate.

  • Data cycle storage function, automatic removal of overflow data, easy operation, simple query, power failure data storage time of more than 10 years.

  • Waterproof and dustproof design: IP65 protection level, suitable for outdoor use.

FAQ
QIs the TP121 (k = 0.1) conductivity analyzer explosion-proof?
A It is not explosion-proof, it is a conventional laboratory instrument.
QDo you have the conductivity analyzer involved in JB/T6855?
A The TP121 (k = 0.1) conductivity analyzer will do
