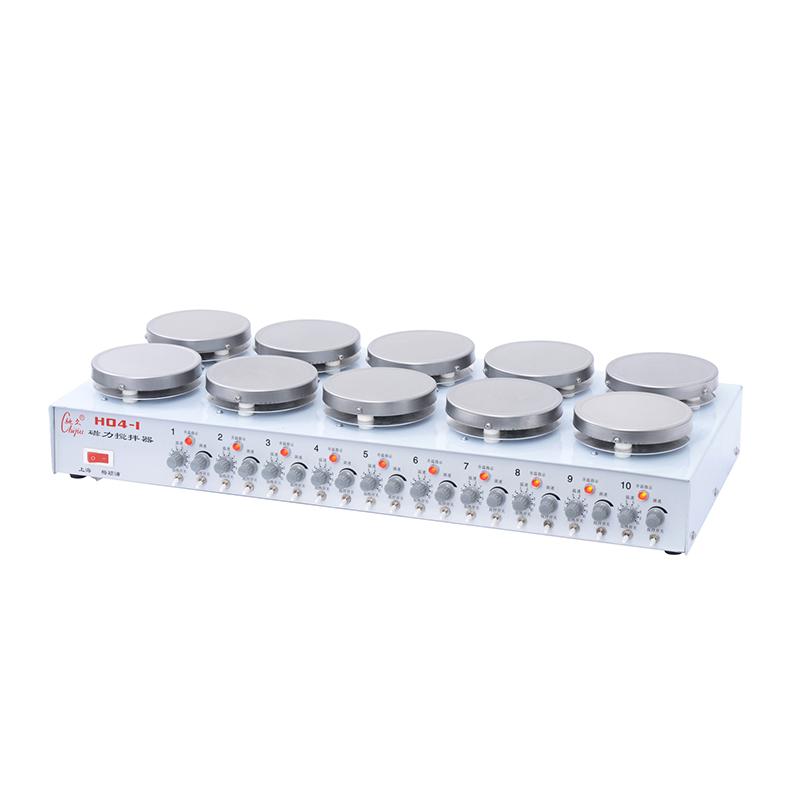

CHIJIU H04-1 Ten station heating Magnetic Stirrer stirring capacity 1000mlx10

H04-1

Magnetic Stirrer (Multi-station)

Product Description

H04-1 heating magnetic stirrer is a ten-station heating magnetic stirrer with stirring and heating functions. Each station is driven by a brushless DC motor, and the heating power is adjustable within the rated power. Each station can be independently Control, suitable for small-capacity multi-station mixing.

The stirring volume of H04-1 heating magnetic stirrer is 1000mlx10.

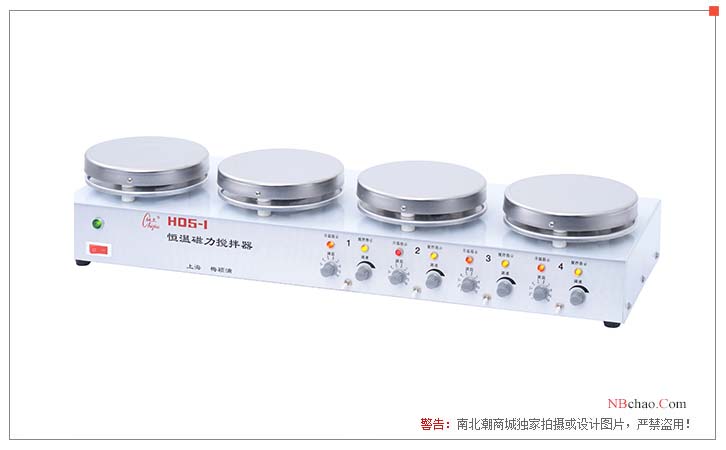

Product display

Instructions

1. Place the mixer stably, turn the power switch to off, adjust all speed and temperature knobs counterclockwise to the minimum, and turn all heating switches upward (off), then plug in the power and turn on the power switch. The indicator light inside the switch is on;

2. Place the beaker containing the liquid medicine in the middle of the workbench (electric stove), put a stirrer in the beaker, turn on the stirring switch of the corresponding station, and adjust the speed knob clockwise so that the stirrer in the beaker goes from slow to slow. Turn quickly to stir the liquid;

3. If heating is required while stirring, the heating switch of the corresponding station can be turned on. The heating indicator light will light up, and the electric furnace will start to heat. The heating speed (i.e., heating Voltage) is adjusted by the temperature speed knob. If adjusted properly, the heat generated by the electric furnace and the heat absorbed by the liquid medicine in the beaker can be balanced, and the liquid medicine can be maintained at a stable temperature.

4. Each station of this H04-1 heating magnetic stirrer can be controlled individually. Ten stations can be used at the same time, and one or more of them can be used. As long as the two corresponding switches are turned off for a workstation that is not in use, the workstation will not consume electricity;

5. After each work station is used, the speed control knob should be adjusted counterclockwise to the minimum, and then the two switches should be turned off. Try to avoid turning on the stirring switch at high speed to avoid causing the stirrer to lose rotation and the electronic components in the speed control circuit. Shortened lifespan.

Precautions

1. The power socket should be well grounded;

2. Do not overfill the liquid in the beaker to avoid overflowing during stirring.

Packing list：host x1, power cord x1, stirrer x20, instruction manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
