Specifications
| Measurement range | 0~1000mS/cm |
| Measurement error | ±2.5% F.S |
| Resolution | 0.1mS/cm |
| Temperature compensation range | 0~60℃ |
| Dimensions | 145*120*150mm |
| Weight | 0.64kg |
| Display | 128 × 64 dot matrix LCD, Chinese display |
| Temperature sensor | Pt1000 |
| Water sample temperature | 5~50℃ |
| Operating temperature | 5~45℃ |
| Operating humidity | ≤ 90% RH (non-condensing) |
| Display resolution | 0.1℃ |
| An indication of temperature error | 0.5℃ |
| Current Output | 0~10mA, 0~20mA, 4~ 20mA optional, load < 300Ω |
| Alarm relay | 2 normally open points can be set arbitrarily, AC 220V 3A/DC 30V 3A |
| output load Capacity | ≤750Ω |
| Output Accuracy | 1%F.S |
| Relay load Capacity | AC 250V 5A/DC 30V 5A |
| Power Supply | AC (85~ 265) V Frequency (45~ 65) Hz |
| Power | ≤ 15W |
| opening size | 138 mm×138 mm |
Packing list

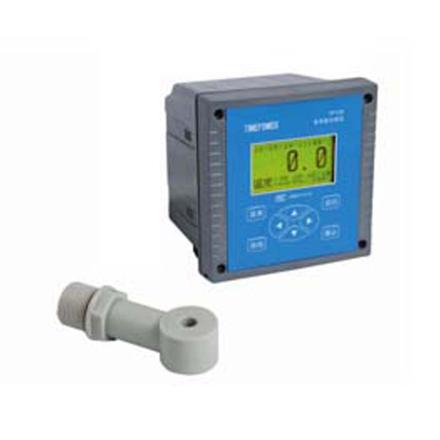

Host X1, acid/base concentration meter composite electrode X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/16999/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
