TIMEPOWER TP140 (sulfuric acid) Acid/base concentratIon MeterSPEC

TIMEPOWER TP140 (sulfuric acid) Acid/base concentratIon MeterDetails

TIMEPOWER TP140 (sulfuric acid) Acid/base concentratIon MeterPacking list

SKU
NB017003
Display
128 * 64 dot matrix LCD, Chinese display
Measurement range
0~20.00%
Accuracy
±2%FS
Resolution
0. 01%
Repeatability
<1%
Temperature sensor
Pt1000
Temperature compensation range
0~60℃
Water sample temperature
5~50℃
Environmental temperature
5~45℃
Working Relative Humidity
≤ 90% RH (non-condensing)
Storage temperature
-25~ 55 ℃ (excluding electrode, electrode should be higher than 0 ℃)
Current Output
0~10mA, 0~20mA, 4~ 20mA optional, load < 300Ω
Alarm relay
2 normally open points can be set arbitrarily, AC220V 3A /DC30V 3A
Protection level
IP65
Power down save
> 10 years
Power Supply
AC (85~ 265) V Frequency (45~ 65) Hz
power consumption
≤15W
Dimensions
145*120*150mm
opening size
138*138mm
Weight
0.64kg
TP140 (sulfuric acid)
Acid/base concentratIon Meter

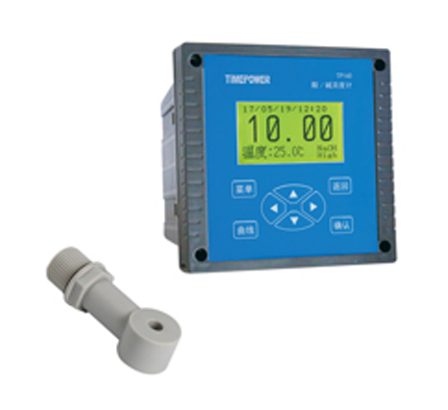

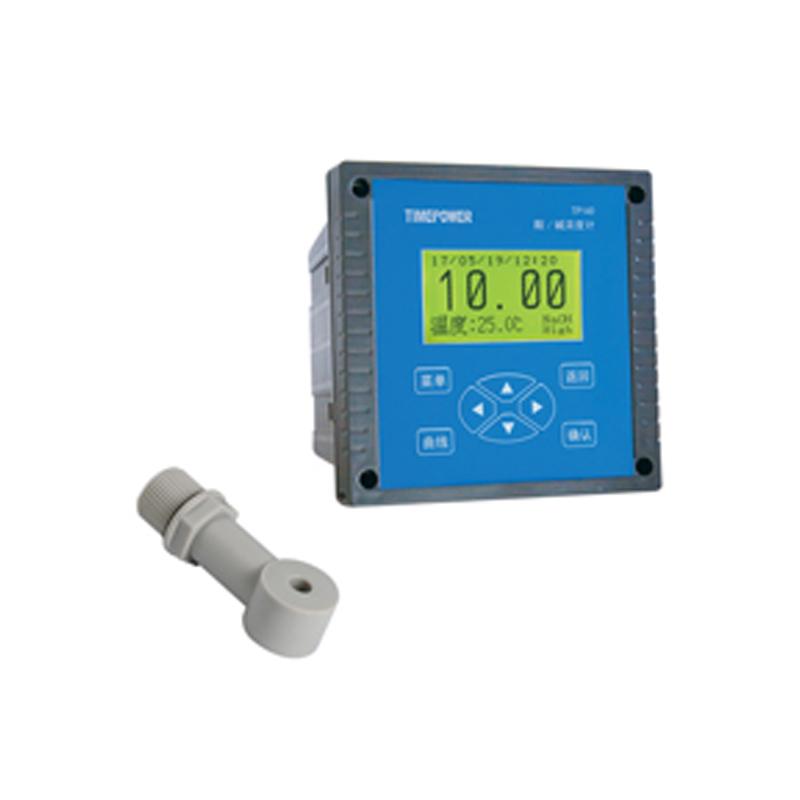

TIMEPOWER TP140 (sulfuric acid) acid/base concentratIon Meter Picture

Introduction

TP140 acid/alkali concentratIon Meter series is a new generation of high-grade instrument with Chinese and English menu operation, full intelligence, multi-function, high measurement performance, strong environmental adaptability, etc., which is suitable for checking the concentration of regenerated liquid in the process of ion exchange method preparation of high purity water, or used to prepare boiler and pipeline pickling liquid, and continuous monitoring of acid and alkali concentration in solution.

Times Xinwei TP140 (Sulfuric Acid) Acid/Base Concentration Meter

Features

  • Using 128×64 dot matrix LCD module, all data, status and operation tips are Chinese display, easy to understand and easy to operate.

  • The instrument adopts corrosion-resistant electrodes, with a wide measuring range and high accuracy.

  • It adopts professional chip placement process and integrated high-integration circuit design.

  • 24-bit A/D signal acquisition, high measurement accuracy, accurate and reliable.

  • Three current outputs (0~10)mA, (0~20)mA and (4~20)mA, customers can choose by themselves.

  • The data loop storage function automatically clears the overflow data, which is convenient to operate and simple to query.
