TIMEPOWER TP140 (sodium chloride) acid/base concentratIon Meter

Certificate
Contact
Details SPEC CAT

TIMEPOWER TP140 (sodium chloride) Acid/base concentratIon MeterSPEC

TIMEPOWER TP140 (sodium chloride) Acid/base concentratIon MeterDetails

TIMEPOWER TP140 (sodium chloride) Acid/base concentratIon MeterPacking list

SKU
NB017005
Display
128 * 64 dot matrix LCD, Chinese display
Measurement range
0~20.00%
Accuracy
±2%FS
Resolution
0. 01%
Repeatability
<1%
Temperature sensor
Pt1000
Temperature compensation range
0~60℃
Water sample temperature
5~50℃
Environmental temperature
5~45℃
Working Relative Humidity
≤ 90% RH (non-condensing)
Storage temperature
-25~ 55 ℃ (excluding electrode, electrode should be higher than 0 ℃)
Current Output
0~10mA, 0~20mA, 4~ 20mA optional, load < 300Ω
Alarm relay
2 normally open points can be set arbitrarily, AC220V 3A /DC30V 3A
Protection level
IP65
Power down save
> 10 years
Power Supply
AC (85~ 265) V Frequency (45~ 65) Hz
power consumption
≤15W
Dimensions
145*120*150mm
opening size
138*138mm
Weight
0.64kg
TP140 (sodium chloride)
Acid/base concentratIon Meter

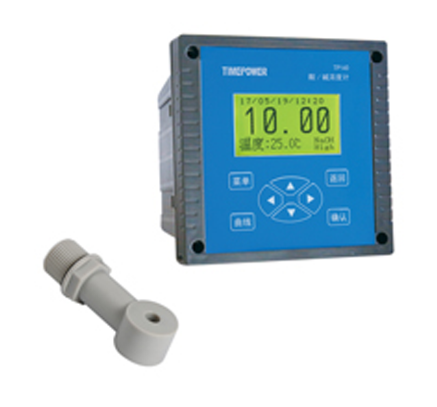

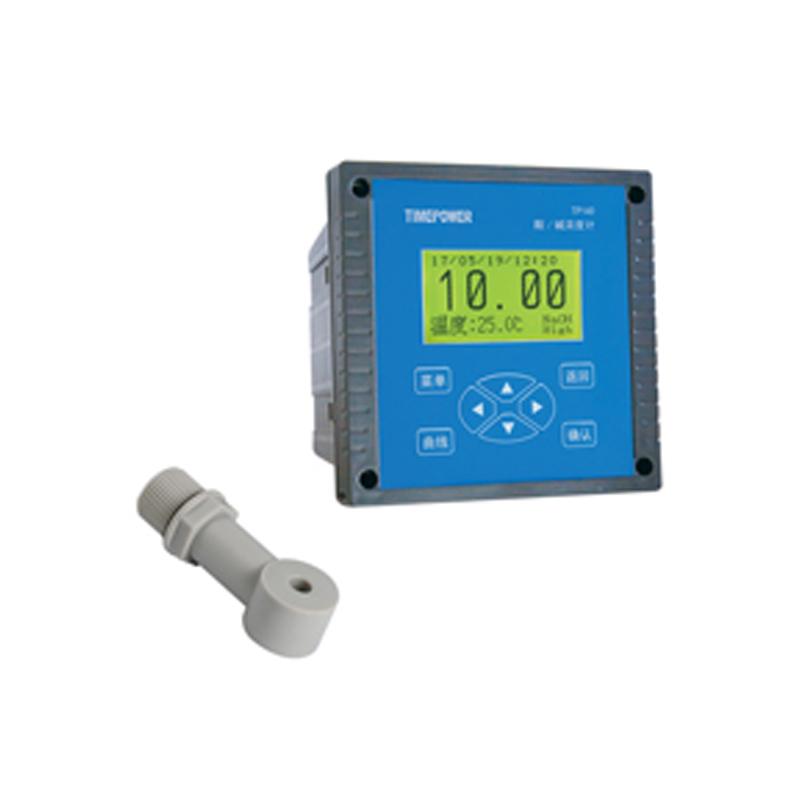

TIMEPOWER TP140 (sodium chloride) acid/base concentratIon Meter Picture

Introduction

TP140 acid/alkali concentratIon Meter series is a new generation of high-end instrument with Chinese and English menu operation, full intelligence, multi-function, high measurement performance, strong environmental adaptability and other characteristics, which is suitable for checking the concentration of regenerated liquid in the process of producing high-purity water by ion exchange method, or used to prepare pickling liquid in boilers and pipelines, and continuously monitoring the acid-base concentration in the solution.

Times Xinwei TP140 (Sodium Chloride) acid/base concentratIon Meter

Features

  • Using 128×64 dot matrix LCD module, all data, status and operation tips are Chinese display, easy to understand and easy to operate.

  • The instrument adopts corrosion-resistant electrodes, with a wide measuring range and high accuracy.

  • It adopts professional chip placement process and integrated high-integration circuit design.

  • 24-bit A/D signal acquisition, high measurement accuracy, accurate and reliable.

  • Three current outputs (0~10)mA, (0~20)mA and (4~20)mA, customers can choose by themselves.

  • The data loop storage function automatically clears the overflow data, which is convenient to operate and simple to query.
