Specifications
| Display | 128 * 64 dot matrix LCD, Chinese display |
| Measurement range | ±2000mV |
| An indication of electrical error | ±1 mV |
| Resolution | 0.1 mV |
| Temperature compensation range | 0~60℃ |
| Water sample temperature | 5~60℃ |
| water sample pressure | <0.6MPa |
| Environmental temperature | 5~45℃ |
| Working Relative Humidity | ≤ 90% RH (non-condensing) |
| Storage temperature | -25~55℃ |
| Power Supply | AC (85~ 265) V Frequency (45~ 65) Hz |
| power consumption | ≤15W |
| Dimensions | 145*120*150mm |
| opening size | 138*138mm |
| Weight | 0.64kg |
| Current Output | 0~10mA, 0~20mA, 4~ 20mA optional, load < 300Ω |
| Alarm relay | 2 normally open points can be set arbitrarily, AC220V 3A /DC30V 3A |
| Protection level | IP65 |
| Power down save | > 10 years |
Packing list

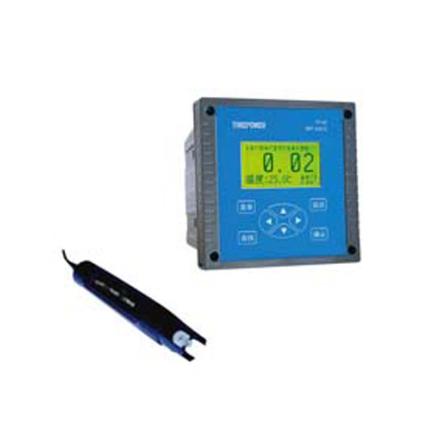

Host X1, ORP three composite electrode X1
After-sales instructions
Warranty days: 365 days
